XB6AS8349B

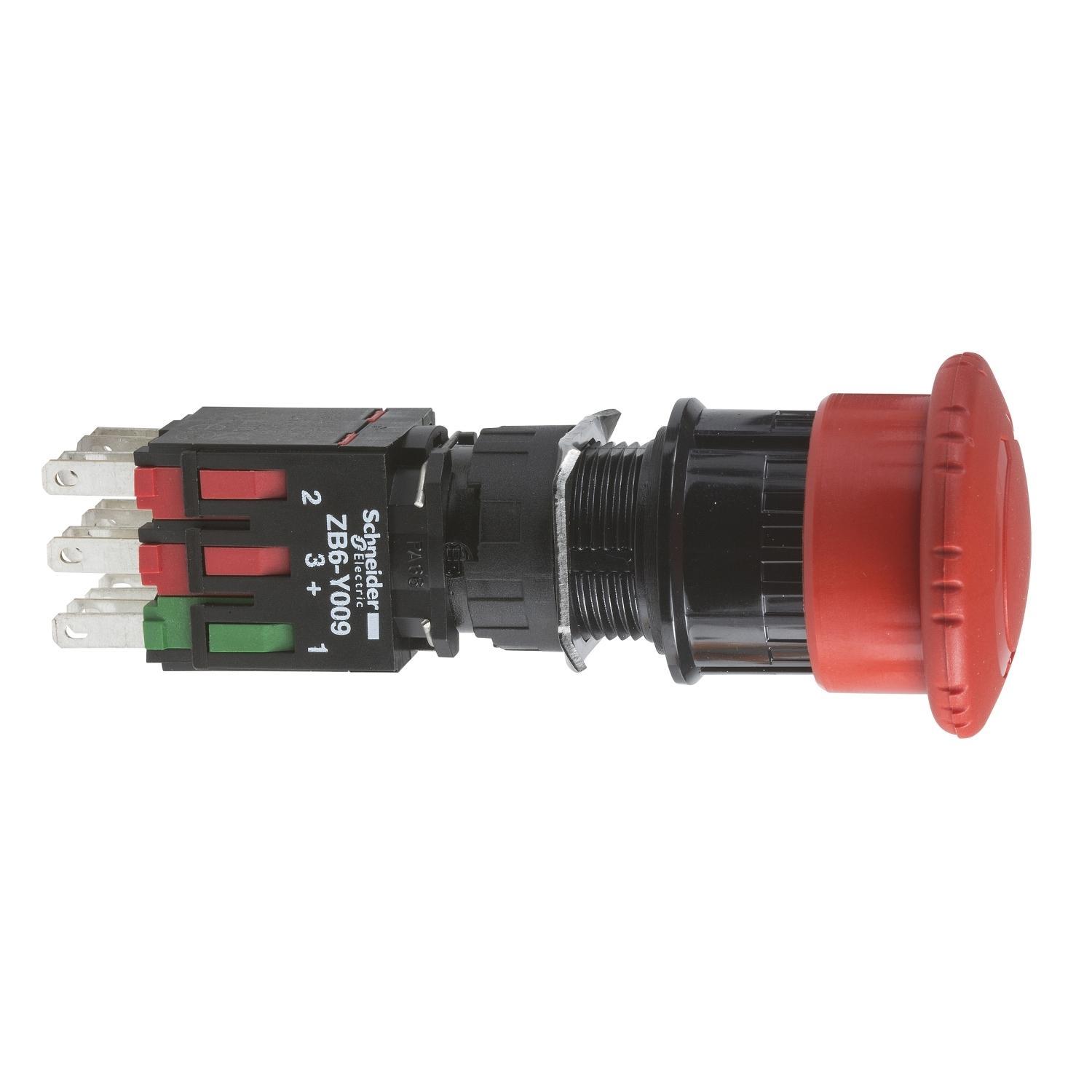

Schneider Electric XB6AS8349B Harmony Non-Illuminated Pushbutton
Part Number # XB6AS8349B
SKU # 2286668
$46.40 / Each
Typical price:$73.40 / Each
Schneider Electric XB6AS8349B Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | XB6AS8349B |
| SKU #: | 2286668 |
| Actuator: | Mushroom Head |
| Bezel/Housing: | Plastic |
| Contact Configuration: | 1NO-2NC, 1NO/2NC |
| Contact Rating: | 3 A at 120 VAC, 1.5 A at 240 VAC, 0.22 A at 125 VDC, 0.1 A at 250 VDC |
| Enclosure Type: | NEMA 1/4/4X/12/13/IP65 |
| Environmental Conditions: | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| Operator Type: | Mechanical Latching/Trigger Action/Turn to Release |
| Series: | XB6 |
| Size: | 16, 16 mm |
| Terminal Type: | Fast-On, Faston |
| Type: | Emergency Stop Unmarked |
| Color: | Red |
| Connection type: | Faston |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901951391 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$46.40 / Each
Typical price:$73.40 / Each
Quantity:
- Schneider Electric Harmony Square D Non-Illuminated Pushbutton, Emergency Stop Unmarked, Series: XB6, 16 mm Size, 1NO-2NC Contact Configuration, Slow Break Contact, Momentary/Maintained Contact Mode, 3 A at 120 VAC, 1.5 A at 240 VAC, 0.22 A at 125 VDC, 0.1 A at 250 VDC Contact, Bezel/Housing: Plastic, Mushroom Head Actuator, Faston Connection, Faston Terminal, NEMA 1/4/4X/12/13/IP65 Enclosure, Panel Mounting, Red, Environmental Conditions: -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
XB6AS8349B Application
Buildings, Tertiary and Industrial ApplicationsXB6AS8349B Item Features
- Compact for restrictive areas
- Simple to install but flexible
- The IP65 degree of protection enables it to meet many types of applications
XB6AS8349B Standards
RoHS Compliant|REACH Compliant|CSA File No. LR44087|CSA C22.2 No. 14|Class 3211-03|UL File No. E164353|UL 508|CCN NKCR|CE Certified|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-5|EN/IEC 60204-1|EN/ISO 13850: 2006|JIS C 4520/853|GoST-R Certified|CCC Certified|Green Premium|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2286668Part Number #XB6AS8349BUNSPSC39122216UPC00785901951391
