Part Number # XB6DF4B5B
SKU # 2452178
Image Disclaimers Message
Brand: Square D (Schneider Electric)
XB6DF4B5B
Schneider Electric XB6DF4B5B
Part Number # XB6DF4B5B
SKU # 2452178
$26.89 / Each
Typical price:$52.40 / Each
Square D (Schneider Electric) XB6DF4B5B Key Features
| Brand: | Square D (Schneider Electric) |
|---|---|
| Part Number # : | XB6DF4B5B |
| SKU #: | 2452178 |
| Actuator: | Flush |
| Bezel/Housing: | Plastic Bezel |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Contact Rating: | 3 A at 120 VAC, 1.5 A at 240 VAC, 0.22 A at 125 VDC, 0.1 A at 250 VDC |
| Enclosure Type: | NEMA 4/4X/12/13/IP65 |
| Environmental Conditions: | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| Lamp Type: | Integral LED |
| Operator Type: | Flush, Latching |
| Series: | XB6 |
| Size: | 16 mm |
| Terminal Type: | Solder Tab |
| Type: | Corrosion-Resistant Dusttight/Watertight Rectangular Unmarked |
| Color: | Red |
| Connection type: | Quick-Connect |
| Country of origin: | MX |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901357773 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$26.89 / Each
Typical price:$52.40 / Each
Quantity:

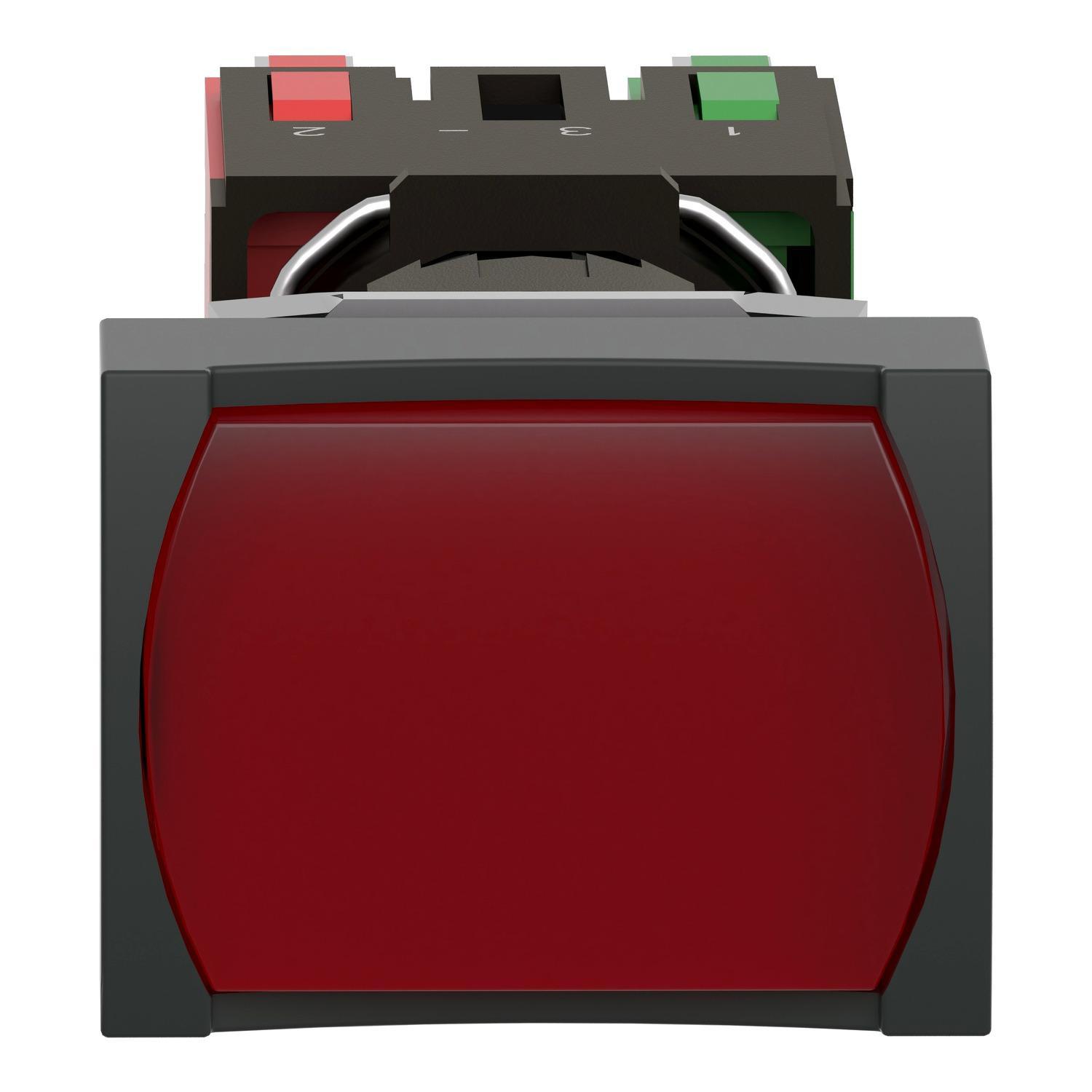

- Schneider Electric Harmony Square D Illuminated Pushbutton, Corrosion-Resistant Dusttight/Watertight Rectangular Unmarked, Series: XB6, 16 mm Size, 1NO-1NC Contact Configuration, Slow Break Contact, Maintained Contact Mode, 3 A at 120 VAC, 1.5 A at 240 VAC, 0.22 A at 125 VDC, 0.1 A at 250 VDC Contact, Flush Operator, Integral LED Lamp, Bezel/Housing: Plastic Bezel, Flush Actuator, Quick-Connect Connection, Solder Tab Terminal, NEMA 4/4X/12/13/IP65 Enclosure, Panel Mounting, Red, Environmental Conditions: -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
XB6DF4B5B Application
Buildings, Tertiary, Industrial and Indoor/Outdoor ApplicationsXB6DF4B5B Item Features
- Pushbuttons with momentary, selector switches and key switches, 2 or 3 positions, mushroom head pushbuttons and emergency stops
- Operator actuation in momentary and maintained functions
- Illuminated functions in push buttons, selector switches, pilot lights and emergency stops
- Protected LED options as well as, neon and incandescent bulbs
- Compact for restrictive areas
- Simple to install but flexible
- The IP65 degree of protection enables it to meet many types of applications
XB6DF4B5B Standards
RoHS Compliant|UL 508|UL File No. E164353|CCN NKCR|CSA File No. LR44087|CSA C22.2 No. 14|Class 3211-03|CE Certified|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-5|EN/IEC 60204-1|EN/ISO 13850: 2006|JIS C 4520/853|GoST-R Certified|CCC Certified|Green Premium|REACH Compliant|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2452178Part Number #XB6DF4B5BUNSPSC39122216UPC00785901357773
