Part Number # XB6EAW4B1P
SKU # 2454292
Image Disclaimers Message
XB6EAW4B1P

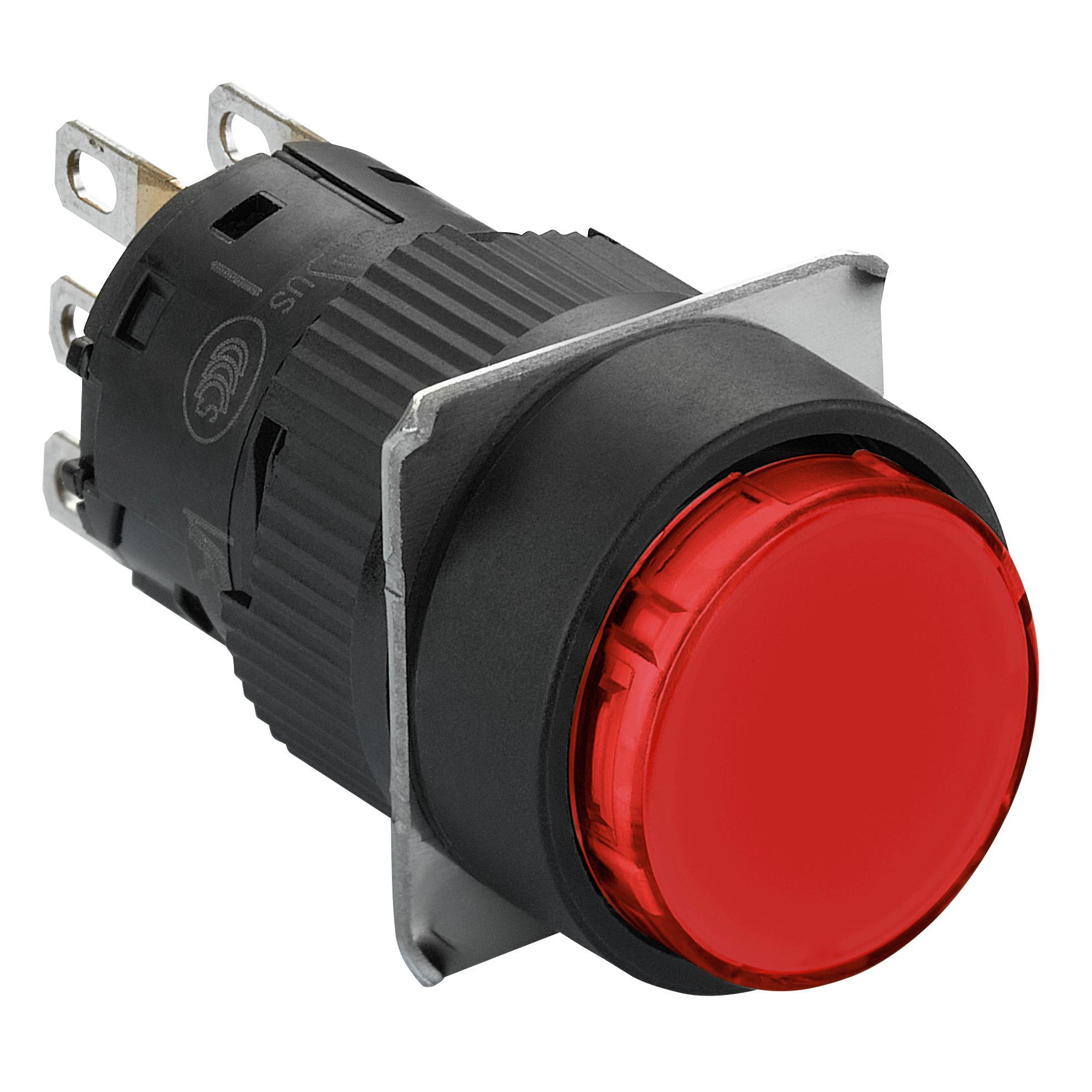

Schneider Electric XB6EAW4B1P
Part Number # XB6EAW4B1P
SKU # 2454292
$42.30 / 5Each
Typical price:$82.50 / Each
Schneider Electric XB6EAW4B1P Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | XB6EAW4B1P |
| SKU #: | 2454292 |
| Actuator: | Round |
| Contact Configuration: | 1CO |
| Contact Rating: | 3 A |
| Enclosure Type: | IP65 |
| Environmental Conditions: | -40 to 158 deg F Storage Temperature, 14 to 131 deg F Operating Temperature |
| Indicator Type: | Integral Led |
| Lamp Type: | LED |
| Legend Color: | Red |
| Operator Type: | Spring Return |
| Series: | XB6 Series |
| Size: | 0.63 in Dia |
| Type: | Illuminated Monolithic Push-Button |
| Color: | Red |
| Connection type: | Insulated Faston/Fast Connector Socket/Solder Terminal |
| Country of origin: | CN |
| Material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 03389110625035 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$42.30 / 5Each
Typical price:$82.50 / Each
Quantity:
Schneider Electric XB6EAW4B1P
Brand: Schneider Electric
Part Number: XB6EAW4B1P
Additional Description: SQD -XB6EAW4B1P ILL MONOLIT PB ROUND 16MM 24V DC
Catalog Description: Illuminated monolithic push button, Harmony XB6E, round red flush, 16mm, spring return, 24V DC, 1CO
XB6EAW4B1P Item Features
- IP 65 degree of protection
- Pushbuttons with momentary, selector switches and key switches, 2 or 3 positions, mushroom head pushbuttons and emergency stops
- Operator Actuation in momentary and maintained functions
- Illuminated functions in push buttons, selector switches, pilot lights and emergency stops
- "Protected LED" options as well as, neon and incandescent bulbs
- Combined functions (contact + light)
- Gold-flashed silver contacts material
- Any position operating position
- 1000000 cycles mechanical durability
- 50 mOhm 1/6 V contact resistance
- 2 A cartridge fuse gG short-circuit protection
- Steady signalling type
- 30000 h service life
XB6EAW4B1P Standards
CURus|CCC|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|IEC 60947-1IEC 60947-5-1UL 508JIS C 4520CSA C22.2 No 14JIS C 852SKU #2454292Part Number #XB6EAW4B1PUNSPSC39122216UPC03389110625035
