Part Number # XB7EV67P
SKU # 2404607
Image provided may only be a representation of
final product and may include optional equipment
XB7EV67P

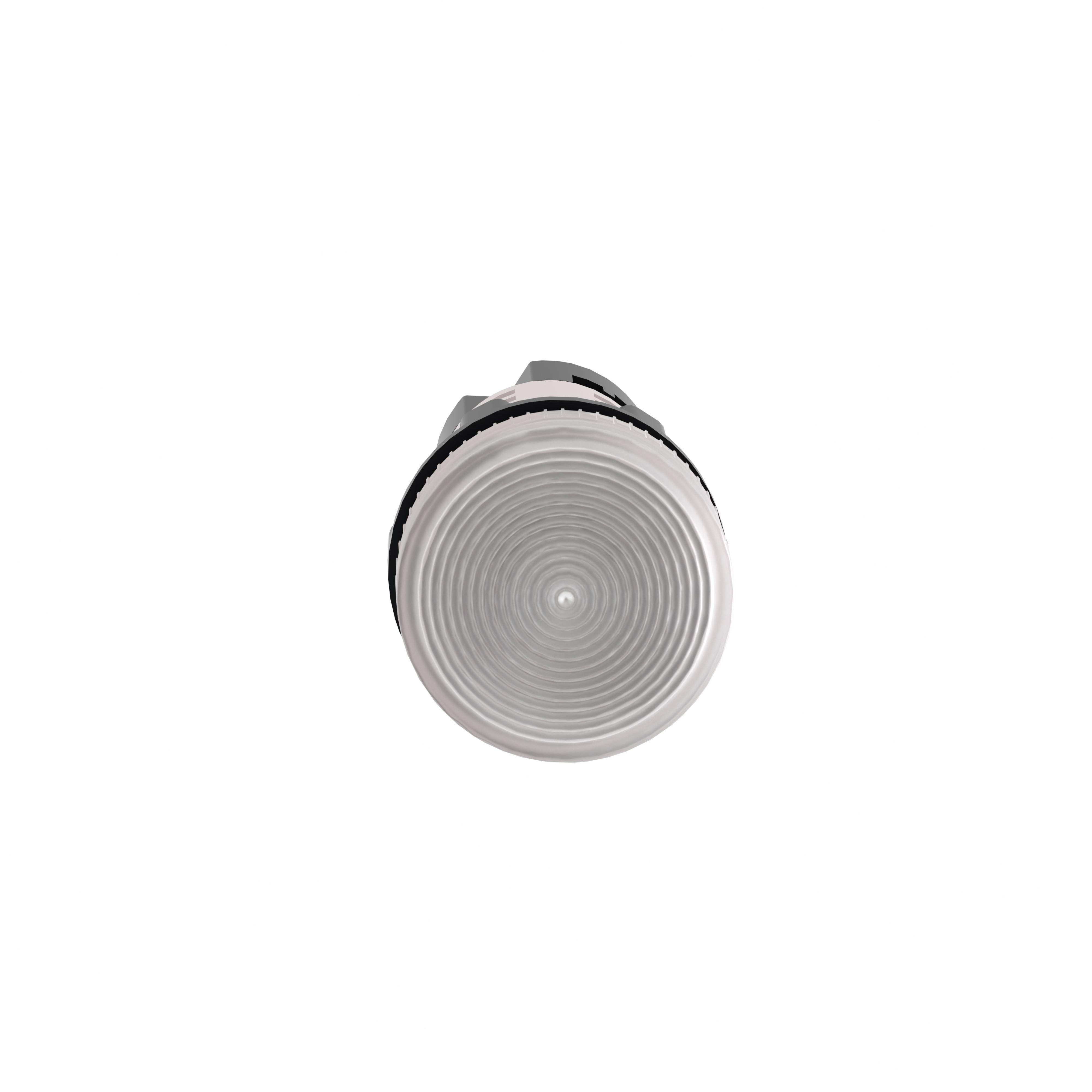

Schneider Electric XB7EV67P, Pilot Light, XB7 Series, 250 V, Clear Lens, LED Lamp, Clear, 1.14 in H x 1.14 in W x 2.13 in D x 0.87 in Dia Size, Round Shape, BA9s Base, Screw Clamp Terminal, IP20/IP54 Enclosure, Panel Mounting, Environmental Conditions: -40 to 158 deg F Storage Temperature, -13 to 131 deg F Operating Temperature
Part Number # XB7EV67P
SKU # 2404607
Schneider Electric XB7EV67P Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | XB7EV67P |
| SKU #: | 2404607 |
| Base Type: | BA9s |
| Enclosure Type: | IP20/IP54 |
| Environmental Conditions: | -40 to 158 deg F Storage Temperature, -13 to 131 deg F Operating Temperature |
| Lamp Type: | LED |
| Lens Color: | Clear |
| Series: | XB7 Series |
| Size: | 1.14 in H x 1.14 in W x 2.13 in D x 0.87 in Dia |
| Terminal Type: | Screw Clamp |
| Type: | Pilot Light |
| Country of origin: | ID |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121534 |
| UPC: | 03389110839623 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric XB7EV67P, Pilot Light, XB7 Series, 250 V, Clear Lens, LED Lamp, Clear, 1.14 in H x 1.14 in W x 2.13 in D x 0.87 in Dia Size, Round Shape, BA9s Base, Screw Clamp Terminal, IP20/IP54 Enclosure, Panel Mounting, Environmental Conditions: -40 to 158 deg F Storage Temperature, -13 to 131 deg F Operating Temperature
Brand: Schneider Electric
Part Number: XB7EV67P
Schneider Electric XB7EV67P, Pilot Light, XB7 Series, 250 V, Clear Lens, LED Lamp, Clear, 1.14 in H x 1.14 in W x 2.13 in D x 0.87 in Dia Size, Round Shape, BA9s Base, Screw Clamp Terminal, IP20/IP54 Enclosure, Panel Mounting, Environmental Conditions: -40 to 158 deg F Storage Temperature, -13 to 131 deg F Operating Temperature
Additional Description: SQD -XB7EV67P DIRECT SUPPLY CLEAR PILOT LIGHT light, plastic, clear, 22, plain lens for BA9s bulb, <= 250 V
Catalog Description: Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, plain lens for BA9s bulb, lt 250V
XB7EV67P Application
For BA9s bulb, For operation in low pressure environmentsXB7EV67P Item Features
- The XB7 Line is an all-in-one push button with the operators on the back of the operator
- With momentary & maintained push buttons, illuminated push buttons and pilot lights with LEDs, mushroom head emergency stop buttons with snap-action locking, and 2 position and 3 positionA selector switches, etc. the monolithic option is a viable alternative to the modular ranges and is a more compact design
- Monolithic product device presentation
- (X1-X2)PL terminals description ISO n deg 1
- Class II IEC 60536 overvoltage category
- Fixing hole 0.89 in (22.5 mm) 22.3 +0.4/0 EN/IEC 60947-5-1 device mounting
- >= 30 x 40 mm support panel) metal 04 to 0.24 in (1 to 6 mm)>= 30 x 40 mm support panel) plastic 08 to 0.24 in (2 to 6 mm) fixing center
- Fixing nut beneath head 17.70 to 21.24 lbf.in (2 to 2.4 N.m) fixing mode
- Clear cap/operator or lens colour
- 250 V 3)EN/IEC 60947-1 ui rated insulation voltage
- 6 kV EN/IEC 60947-1 uimp rated impulse withstand voltage
- Steady signalling type
- Direct light block supply
- XB7 compatibility code
- TH protective treatment
- With toxic heavy metal free
XB7EV67P Standards
JIS C8201-5-1|UL 508|EN/IEC 60947-1EN/IEC 60947-5-1|CSA C22.2 No 14|JIS C8201-1|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2404607Part Number #XB7EV67PUNSPSC39121534UPC03389110839623
