Part Number # XD5PA14
SKU # 622955
Image Disclaimers Message
XD5PA14

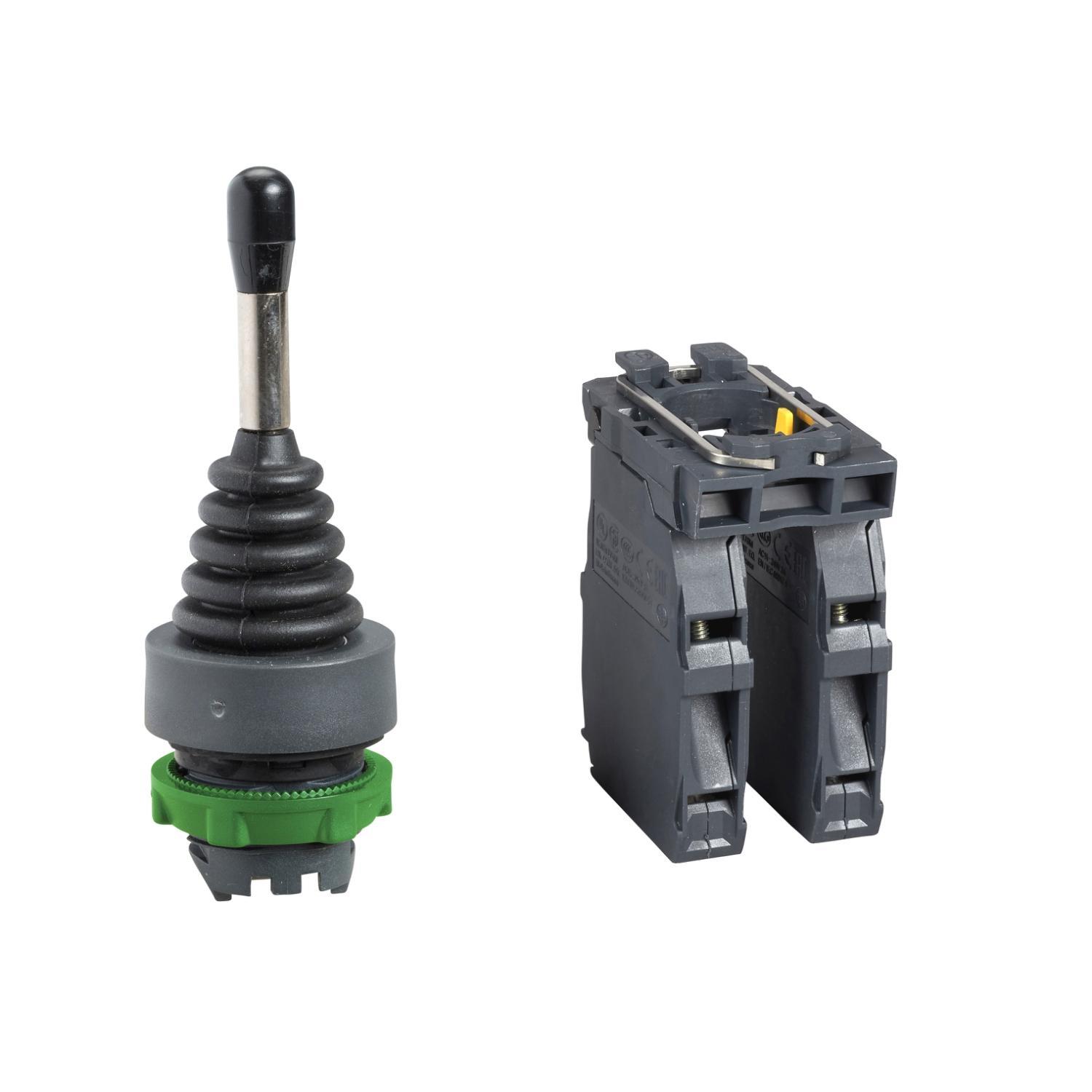

Schneider Electric XD5PA14 Harmony Joystick Controller
Part Number # XD5PA14
SKU # 622955
$250.30 / Each
Typical price:$316.00 / Each
Schneider Electric XD5PA14 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | XD5PA14 |
| SKU #: | 622955 |
| Bezel/Housing: | Plastic |
| Contact Configuration: | 1NO |
| Contact Rating: | 6 A at 120 V AC, 3 A at 240 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC, 6 A at 120 VAC, 3 A at 240 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Enclosure Type: | NEMA 1/2/3/4/4X/12/13/IP66/IK03 |
| Environmental Conditions: | -13 to 158 deg F Operation Temperature |
| Number of Positions: | 5 |
| Operating Cycles: | 1000000, 1000000 Cycles |
| Operator Type: | 54 mm Long Shaft |
| Series: | XB5 |
| Size: | 22, 22 mm |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Country of origin: | FR |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122227 |
| UPC: | 00785901384809 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$250.30 / Each
Typical price:$316.00 / Each
Quantity:
- Schneider Electric Harmony Square D Joystick Controller, Series: XB5, 240 V AC, 1NO Contact Configuration, Slow Break Contact, Stay Put Contact Mode, 6 A at 120 V AC, 3 A at 240 V AC, 1.2 A at 600 V AC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, 5 Positions, 54 mm Long Shaft Operator, 1000000 Cycles Operating Cycles, Screw Clamp Terminal, Bezel/Housing: Plastic, 22 mm Size, NEMA 1/2/3/4/4X/12/13/IP66/IK03 Enclosure, Environmental Conditions: -13 to 158 deg F Operation Temperature
XD5PA14 Application
Harsh Environments ApplicationsXD5PA14 Item Features
- It fits in a 22mm hole
- It is supplied with screw-clamp terminals
- https://www.youtube.com/embed/VW1D8XO_MJI
XD5PA14 Standards
RoHS Compliant|EN/IEC 60947-5-4|EN/IEC 60947-5-1|JIS C 4520|UL 508|EN/IEC 60947-1|BV Certified|DNV Certified|GL Certified|Lloyds Register Certified|RINA Certified|UL File No. E164353 CCN NKCR|CSA C22.2 No. 14 File No. LR44087 Class 3211 03|CE Certified|IEC 60529|REACH Compliant|Green Premium|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #622955Part Number #XD5PA14UNSPSC39122227UPC00785901384809
