Brand: Schneider Electric

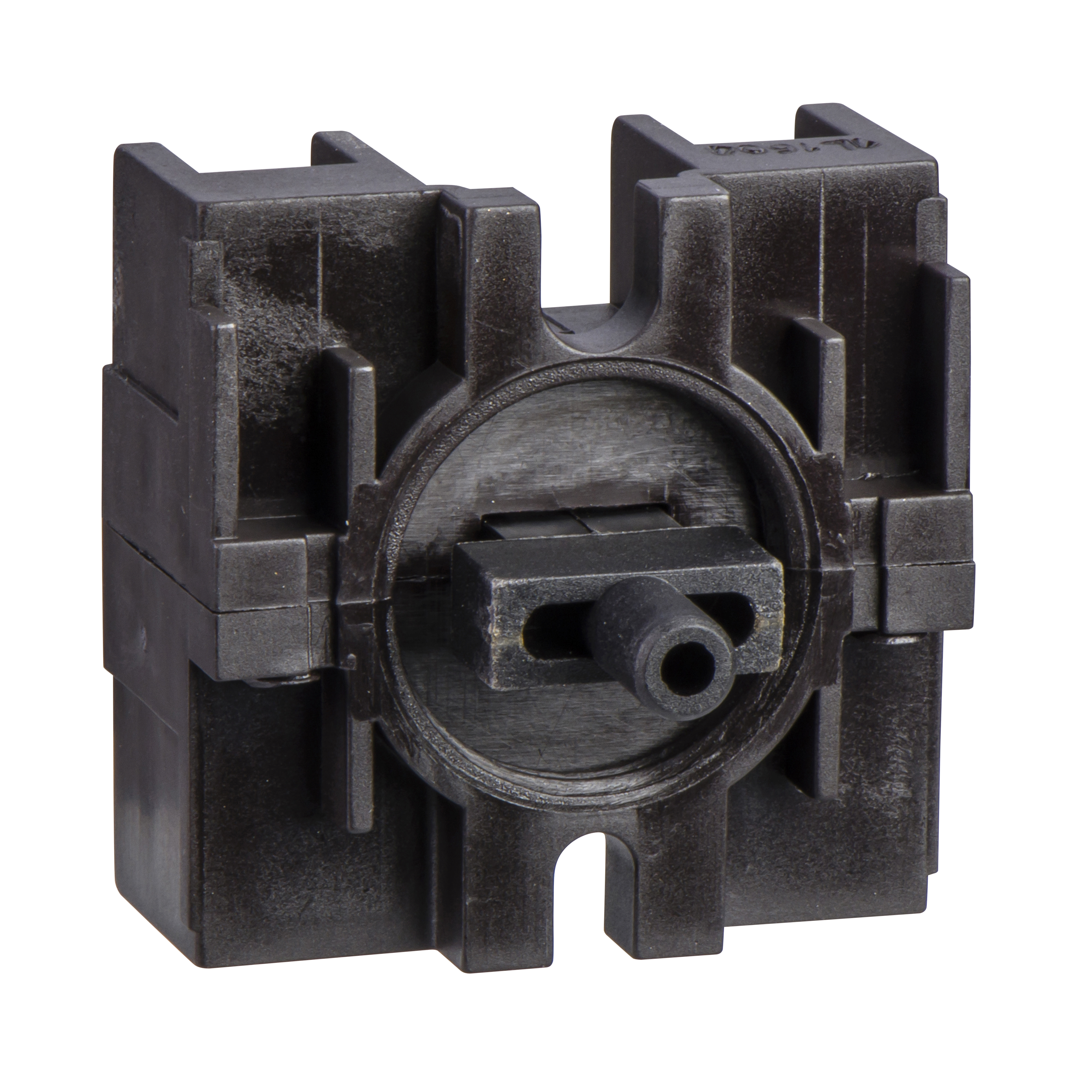

Schneider Electric XESB2011 Contact Block
Image Disclaimers Message
Brand: Schneider Electric
Schneider Electric XESB2011 Contact Block
Brand: Schneider Electric
Schneider Electric XESB2011 Contact Block
Part #:XESB2011
SKU #: 37225
$25.99/EA
Key Features
Part #:XESB2011
SKU #: 37225
Brand: Schneider Electric
Contact Configuration: 1NC-1NO, 1NO-1NC
Contact Rating: 10 A at 600 VAC
Mounting: Front
Number of Poles: 1
Operator Type: Spring Return
$25.99/EA
- Snap action contact operation
- 1 x 2.5 sq-mm with or without cable end screw clamp terminals, connection capacity, 2 x 1.5 sq-mm with or without cable end screw clamp terminals, connection capacity connections terminals
- 1000000 cycles mechanical durability
- 500 V (Pollution deg of 3) conforming to IEC 60947-1 rated insulation voltage
- 6 kV conforming to IEC 60947-1 rated impulse withstand voltage
- <=25 MOhm resistance across terminals
- 10 A fuse protection by cartridge fuse type gG short circuit protection
- 140 W DC-13 for 1000000 cycles, 60 cycle/min at 24 V operating rate, 0.5 (inductive load) load factor conforming to IEC 60947-5-1, 140 W DC-13 for 1000000 cycles, 60 cyc/mn at 48 V operating rate, 0.5 (inductive load) load factor conforming to IEC 60947-5-1, 95 W DC-13 for 1000000 cycles, 60 cyc/mn at 120 V operating rate, 0.5 (inductive load) load factor conforming to IEC 60947-5-1 rated operational power in W
- -25 to 70 deg C operation temperature
- -40 to 70 deg C storage temperature
- https://www.youtube.com/embed/P5ukp5nsyNI
Specifications
Brand: Schneider Electric
Contact Configuration: 1NC-1NO, 1NO-1NC
Contact Rating: 10 A at 600 VAC
Mounting: Front
Number of Poles: 1
Operator Type: Spring Return
Series: XESB
Suitable For Use With: XACM, XAB91, XACB Series Contact Blocks, XACM/XAB91/XACB Series Contact Block
Terminal Type: Screw Clamp, Screw/Clamp
Type: Single
Country of origin: CZ
Manufacturer Name: Schneider Electric
UNSPSC: 39122216
UPC: 00785901289418
Schneider Electric XESB2011 Contact Block
Schneider Electric Contact Block, Single, Series: XESB, 1NC-1NO Contact Configuration, 10 A at 600 VAC Contact, 1 Pole, For Use With: XACM, XAB91, XACB Series Contact Blocks, Spring Return Operator, Screw Clamp Terminal, Front Mounting
Additional Description: SQD -XESB2011 SPRING RETURN CONTACT BLOCK 1 OC FRONT M XE
Catalog Description: Single contact block, Harmony XAC, spring return, front mounting, single speed CO for XACB91 operators
Item Features
Item FeaturesCSA C22.2 #14|EN 60947-5-1|IEC 60947-5-1|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)|which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant
