Brand: Schneider Electric

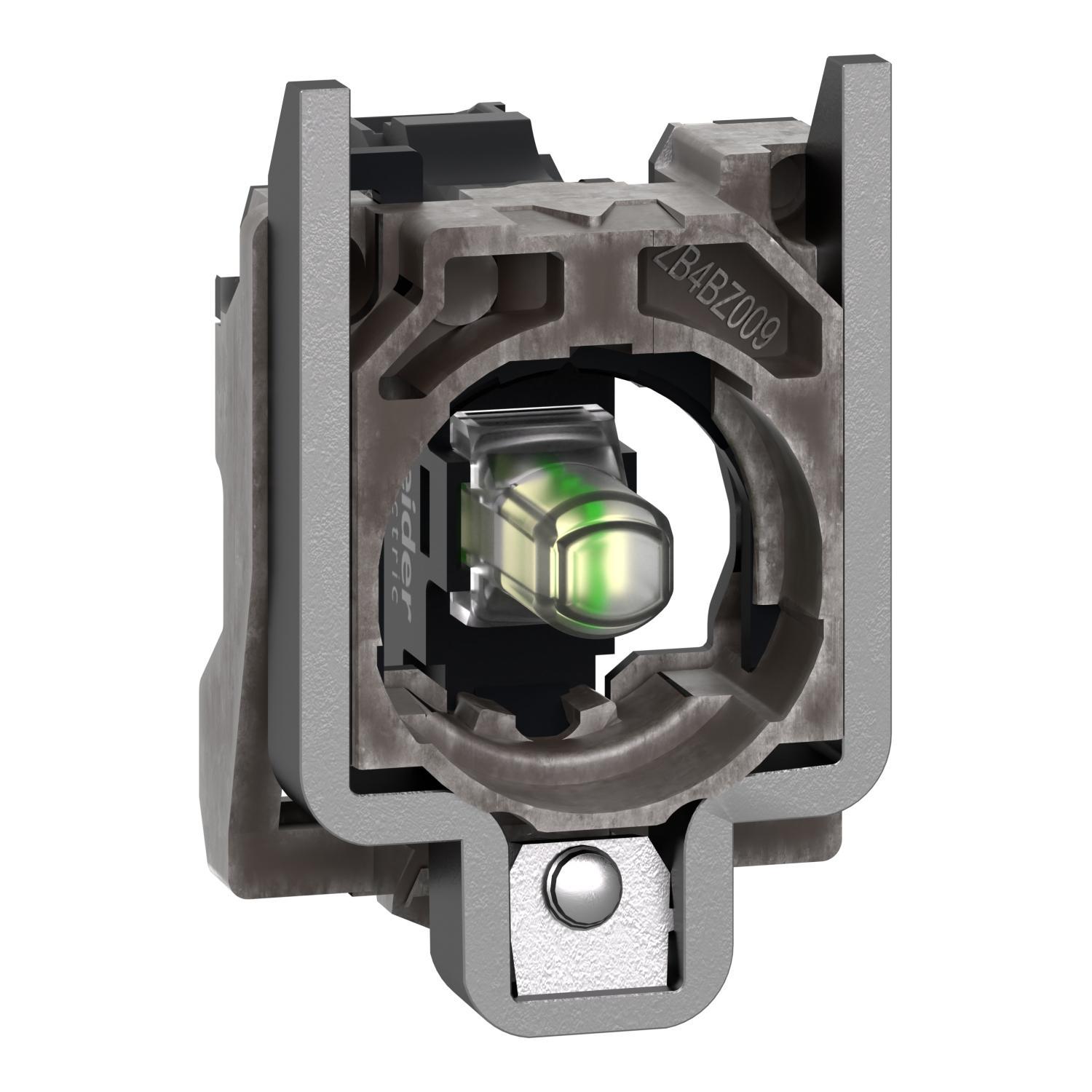

Schneider Electric ZB4BVBG1 Harmony Light Block Assembly
Image Disclaimers Message
Brand: Schneider Electric
Schneider Electric ZB4BVBG1 Harmony Light Block Assembly
Brand: Schneider Electric
Schneider Electric ZB4BVBG1 Harmony Light Block Assembly
Part #:ZB4BVBG1
SKU #: 1947812
$49.01/EA
Key Features
Part #:ZB4BVBG1
SKU #: 1947812
Brand: Schneider Electric
Dimensions: 1.18 in W x 1.46 in D x 1.85 in H, 1.85 in H x 1.18 in W x 1.46 in D
Lamp Type: LED
Series: ZB4
Size: 22 mm Dia
Terminal Type: Screw Clamp, Screw/Clamp
$49.01/EA
38 In Stock
Ships in 1 Business Day
- It is supplied with 24 to 120VAC/DC and uses screw-clamp terminals
- It has a metal body and is compatible with Harmony XB4 pilot lights
- Protected LED light source and integral LED bulb base
- 50/60 Hz frequency
- 7 08 to 10 62 lbf-in tightening torque
- 600 VAC insulation voltage
- Steady signaling type
- 14 to 18 mA current consumption
- 100000 hr at rated voltage and 25 deg C service life
- -40 to 158 deg F ambient air temperature for operation
Specifications
Brand: Schneider Electric
Dimensions: 1.18 in W x 1.46 in D x 1.85 in H, 1.85 in H x 1.18 in W x 1.46 in D
Lamp Type: LED
Series: ZB4
Size: 22 mm Dia
Terminal Type: Screw Clamp, Screw/Clamp
Voltage Rating: 24 to 120, 24 to 120 VAC/VDC
Color: White
Country of origin: FR
Mounting type: Panel
Manufacturer Name: Schneider Electric
UNSPSC: 39122216
UPC: 00785901613350
Schneider Electric ZB4BVBG1 Harmony Light Block Assembly
Schneider Electric Harmony Light Block Assembly, Series: ZB4, 22 mm Dia Size, LED Lamp, 24 to 120 VAC/VDC, Screw Clamp Terminal, Panel Mounting, 1.85 in H x 1.18 in W x 1.46 in D Dimensions
Additional Description: SQD -ZB4BVBG1 24-120V AC-DC LED LIGHT B
Catalog Description: Complete body light block assembly, Harmony XB4, metal, universal LED, body fixing collar, 24...120V AC DC
Item FeaturesFor use with XB4 series 22 mm pushbutton
Item FeaturesMounting Collar, Light Module With Protected LED
Item Features
Item FeaturesUL 508|CSA C22.2 No 14|JIS C 4520|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|EN/IEC 60947-5-5
Item Features18 Months
