Brand: Schneider Electric

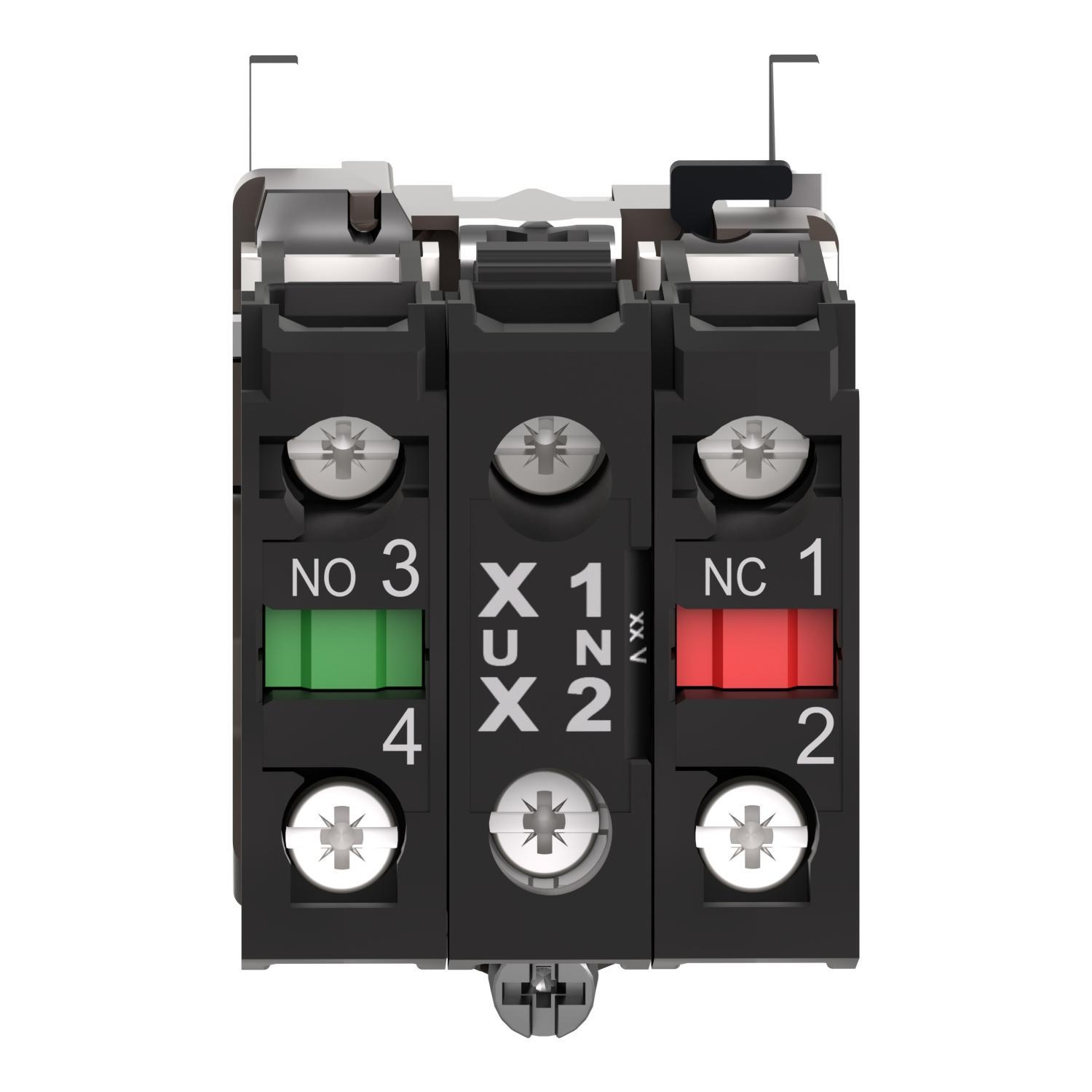

Schneider Electric ZB4BW0G15 Harmony Light Block Assembly
Image Disclaimers Message
Brand: Schneider Electric
Schneider Electric ZB4BW0G15 Harmony Light Block Assembly
Brand: Schneider Electric
Schneider Electric ZB4BW0G15 Harmony Light Block Assembly
Part #:ZB4BW0G15
SKU #: 2232219
$77.40/EA
Key Features
Part #:ZB4BW0G15
SKU #: 2232219
Brand: Schneider Electric
Dimensions: 1.18 in W x 1.85 in H, 1.85 in H x 1.18 in W
Lamp Type: Integral LED, LED
Series: ZB4
Size: 22 mm Dia
Terminal Type: Screw, Screw Clamp, Screw/Clamp
$77.40/EA
- It is supplied with a 110 to 120VAC/DC and uses screw-clamp terminals
- It has 1 x NO + 1 x NC contacts and a metal body and is compatible with
- 50/60 Hz frequency
- 600 VAC insulation voltage
- 14 mA current consumption
- 100000 hr at rated voltage and 25 deg C service life
- 1NO 1NC contact configuration programmable
- 7 08 to 10 62 lbf-in tightening torque
- Steady signaling type
- -40 to 158 deg F ambient air temperature for operation
- Silver alloy (Ag/Ni) contacts material
- https://www.youtube.com/watch?v=1P3hhvPFA80
Specifications
Brand: Schneider Electric
Dimensions: 1.18 in W x 1.85 in H, 1.85 in H x 1.18 in W
Lamp Type: Integral LED, LED
Series: ZB4
Size: 22 mm Dia
Terminal Type: Screw, Screw Clamp, Screw/Clamp
Type: Slow Break
Voltage Rating: 110/120, 110/120 VAC, 600, 600 VAC
Color: White
Country of origin: FR, US
Material: Silver Alloy
Mounting type: Flush
Manufacturer Name: Schneider Electric
UNSPSC: 39122216
UPC: 00785901382973
Schneider Electric ZB4BW0G15 Harmony Light Block Assembly
Schneider Electric Harmony Light Block Assembly, Series: ZB4, 22 mm Dia Size, LED Lamp, 110/120 VAC, Screw Clamp Terminal, Flush Mounting, 1.85 in H x 1.18 in W Dimensions
Additional Description: SQD -ZB4BW0G15 120 V LED ILLUMI. P.B BOD N/O
Catalog Description: Complete body contact assembly and light block, Harmony XB4, metal, universal LED, body fixing collar, 1NO + 1NC, 110...120V AC
Item FeaturesXb4 Series 22 mm Pushbutton
Item FeaturesMounting Collar, Single Contact Block and Light Module with Protected LED
Item Features
Item FeaturesRoHS Compliant|UL 508|CSA C22.2 #14|JIS C-4520|EN/IEC 60947-1/60947-5-1/60947-5-4/60947-5-5|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
Item Features18 months
