Part Number # ZB5AW0G11
SKU # 2312177
Image Disclaimers Message
ZB5AW0G11

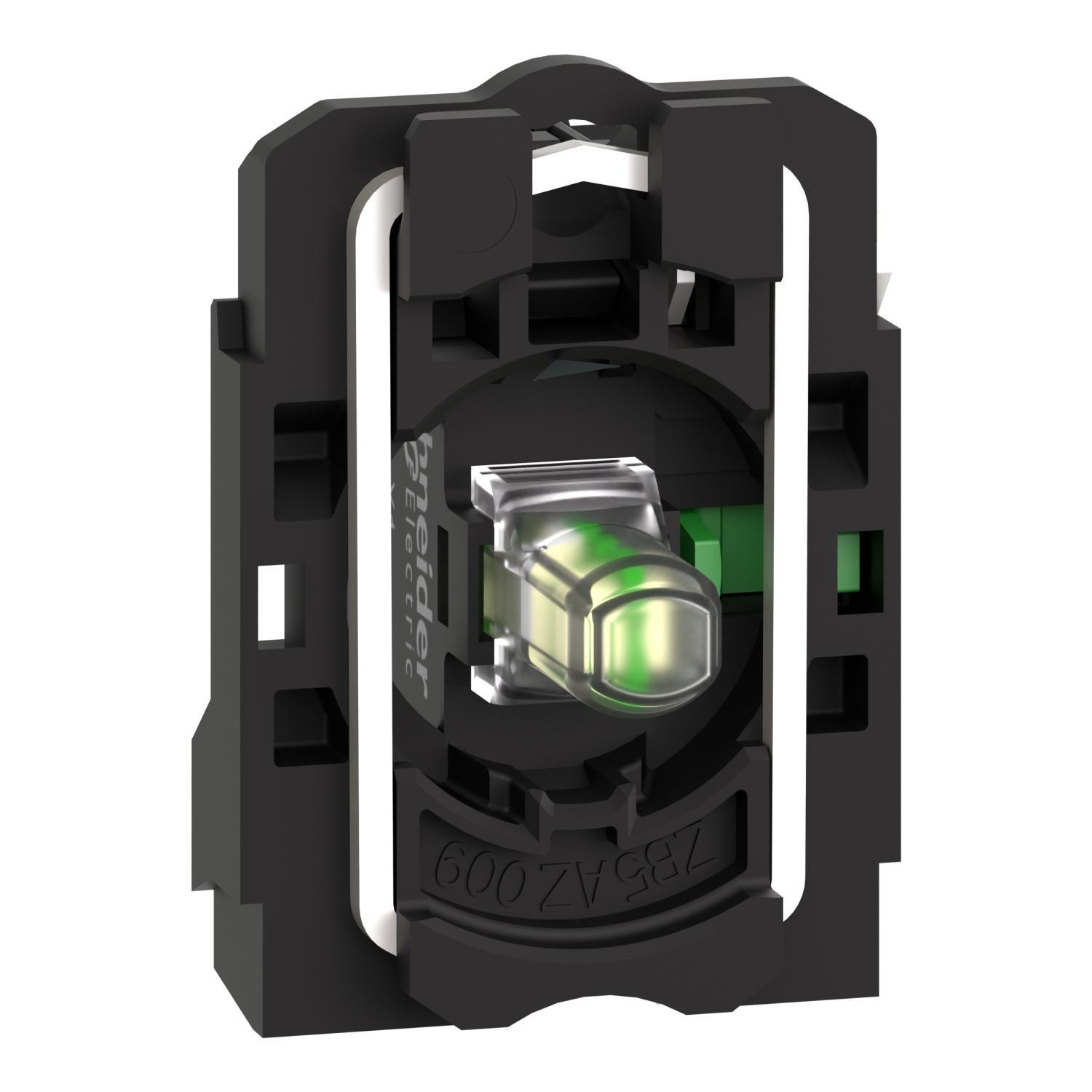

Schneider Electric ZB5AW0G11 Harmony Xb5 Contact Block Assembly
Part Number # ZB5AW0G11
SKU # 2312177
$62.79 / Each
Typical price:$73.00 / Each
Schneider Electric ZB5AW0G11 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | ZB5AW0G11 |
| SKU #: | 2312177 |
| Contact Configuration: | 1NO |
| Contact Rating: | 6 A at 120 V AC, 3 A at 240 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC, 6 A at 120 VAC, 3 A at 240 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Dimensions: | 1.65 in H x 1.18 in W x 1.26 in D |
| Enclosure Type: | IP66 |
| Lamp Type: | LED |
| NEMA Rating: | NEMA 1/2/3/4/4X/12/13 |
| Series: | ZB5 |
| Size: | 22, 22 mm |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Type: | Standard |
| Color: | White |
| Contact material: | Silver Alloy |
| Country of origin: | FR |
| Material: | Plastic |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122216 |
| UPC: | 00785901387930 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$62.79 / Each
Typical price:$73.00 / Each
Quantity:
- Schneider Electric Harmony XB5 Square D Contact Block Assembly, Standard, Series: ZB5, 22 mm Size, LED Lamp, 1NO Contact Configuration, 6 A at 120 V AC, 3 A at 240 V AC, 1.2 A at 600 V AC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Silver Alloy Contact, 110 to 120 V AC, NEMA 1/2/3/4/4X/12/13 NEMA Rating, IP66 Enclosure, Screw Clamp Terminal, Plastic, White, 1.65 in H x 1.18 in W x 1.26 in D Dimensions
ZB5AW0G11 Specifications
- 110 to 120 VAC at 50/60 Hz voltage
ZB5AW0G11 Item Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- With various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- Excellent mechanical connection with operator head
- A large set of accessories to customize your panels
- https://www.youtube.com/embed/6sW9Z3A8tM0
ZB5AW0G11 Standards
RoHS Compliant|EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4|JIS C 4520|UL 508|CSA C22.2 No. 14|BV Certified|DNV Certified|GL Certified|Lloyds Register Certified|RINA Certified|REACH Compliant|WEEE Compliant|Green Premium|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2312177Part Number #ZB5AW0G11UNSPSC39122216UPC00785901387930
