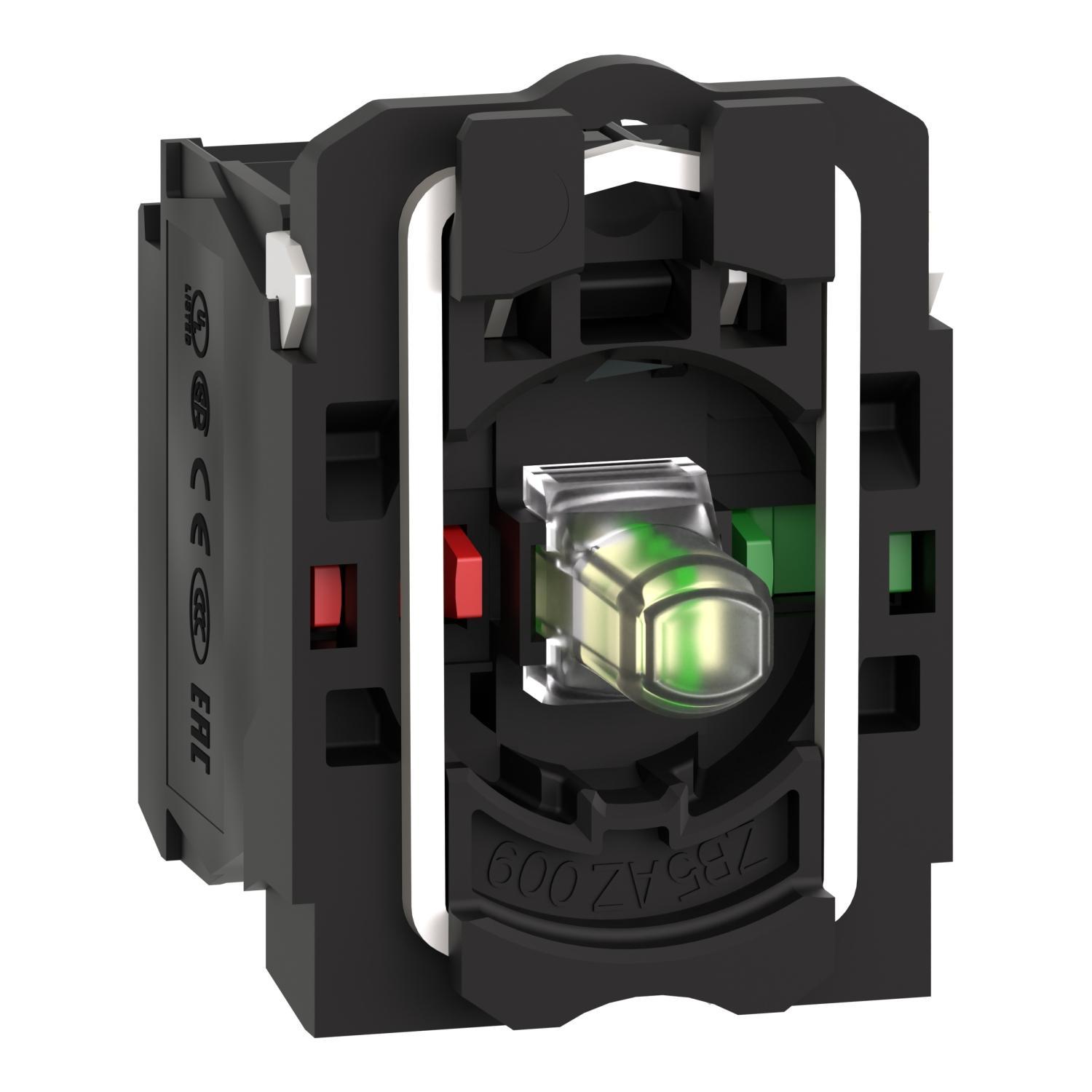

Schneider Electric ZB5AW0G15 Harmony Complete Body/Light Block/Contact Assembly
Schneider Electric ZB5AW0G15 Harmony Complete Body/Light Block/Contact Assembly
Part #:ZB5AW0G15
SKU #: 2171654
Key Features
Part #:ZB5AW0G15
SKU #: 2171654
Brand: Schneider Electric
Contact Configuration: 1NC-1NO, 1NO-1NC
Contact Rating: 6 A at 120 VAC, 3 A at 240 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC, 6 A at 120 VAC, 3 A at 240 VAC, 1.2 A at 600 VAC/0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC
Dimensions: 1.18 in W x 1.26 in D x 1.65 in H, 1.65 in H x 1.18 in W x 1.26 in D
Enclosure Type: IP66
Lamp Type: LED
- It is supplied with a 110 to 120VAC and uses screw-clamp terminals
- 110 to 120 VAC, 50/60 Hz rated supply voltage, 14 mA current consumption
- It has 1 x NO + 1 x NC contacts and a plastic body and is compatible with Harmony XB4 pilot lights
- https://www.youtube.com/embed/qOrWcETKQZg
Schneider Electric ZB5AW0G15 Harmony Complete Body/Light Block/Contact Assembly
Schneider Electric Harmony Complete Body/Light Block/Contact Assembly, Standard, Series: ZB5, 22 mm Size, LED Lamp, 1NC-1NO Contact Configuration, 6 A at 120 VAC, 3 A at 240 VAC, 1.2 A at 600 VAC/0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Silver Alloy Contact, 110 to 120 VAC, NEMA 1/2/3/4/4X/12/13 NEMA Rating, Slow Break Operator, IP66 Enclosure, Screw Clamp Terminal, Flush Mounting, Plastic, White, 1.18 in W x 1.26 in D x 1.65 in H Dimensions
Additional Description: SQD -ZB5AW0G15 120 V LED ILLUMI. P.B BOD N/O
Catalog Description: Complete body contact assembly and light block, Harmony XB5, XB4, with body fixing collar, universal LED, 110...120V, 1NO + 1NC
