Part Number # 14HUG32BA
SKU # 2447717
Image Disclaimers Message
14HUG32BA

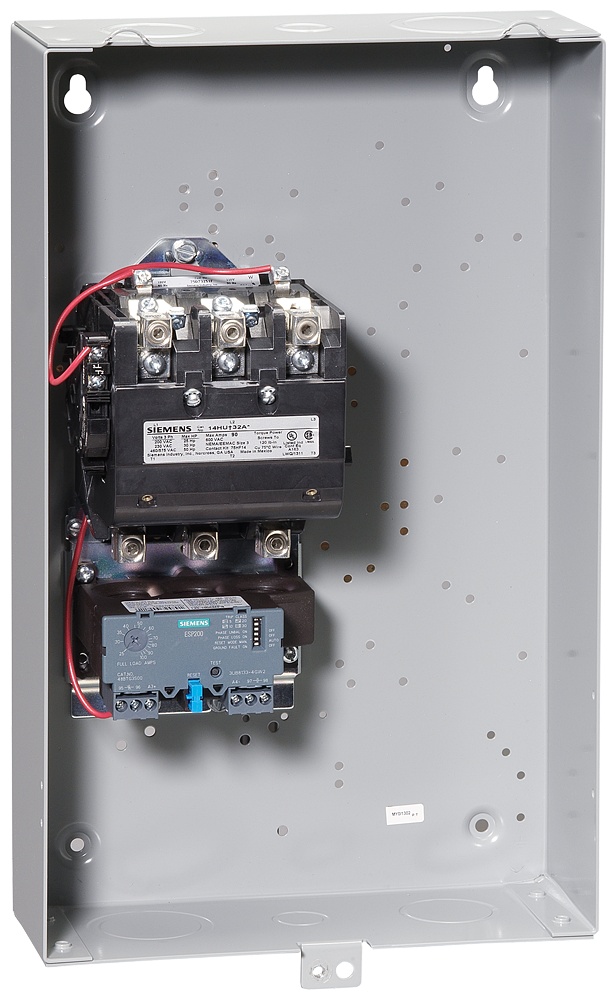

Siemens 14HUG32BA
Part Number # 14HUG32BA
SKU # 2447717
$1748.54 / Each
Typical price:$3221.00 / Each
Siemens 14HUG32BA Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 14HUG32BA |
| SKU #: | 2447717 |
| Amperage Rating: | 25 to 100 A |
| Auxiliary Contact Rating: | 10 A at 600 VAC, 5 A at 600 VDC |
| Coil Voltage: | 110 to 120 V AC, 220 to 240 V AC, 110 V AC, 190 to 220 V AC, 110 to 120 VAC, 220 to 240 VAC, 110 VAC, 190 to 220 VAC |
| Dimensions: | 20 in H x 12 in W x 8 in D |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 50/60 Hz |
| Motor Power: | 25 hp, 30 hp, 50 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 5000000 Cycles |
| Operating Temperature: | -4 to 104 deg F |
| Overload Relay: | Solid-State |
| Reset Type: | Automatic/Manual/Remote |
| Type: | SZ 3 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing |
| Connection type: | Box Lug |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00783087818088 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1748.54 / Each
Typical price:$3221.00 / Each
Quantity:
- Siemens NEMA Motor Starter, SZ 3 Class 14 Across the Line Full Voltage Heavy Duty Non-Combination Non-Reversing, 575/600 VAC, 25 to 100 A, 50/60 Hz Frequency, 25 hp, 30 hp, 50 hp Motor, 110 to 120 V AC, 220 to 240 V AC, 110 V AC, 190 to 220 V AC Coil, 3 Pole, Automatic/Manual/Remote Reset, Box Lug Connection, Solid-State Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 1 Enclosure, 5000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 20 in H x 12 in W x 8 in D Dimensions
14HUG32BA Application
For across the line starting of 1-phase and polyphase motors, applications requiring dependability and durability, use with machine tools, air conditioning equipment, material handling equipment, compressors, hoists and various production and industrial equipment as well as in demanding automotive, indoor and general purpose applications14HUG32BA Item Features
- Rugged industrial design
- Half sizes for cost and space savings
- Dual voltage and dual frequency coils
- Easy coil access
- Overload test feature
- Straight-thru wiring
- Gravity dropout
- Large silver cadmium contacts
- 110 to 120 VAC, 220 to 240 VAC at 60 Hz, 110 VAC, 190 to 220 VAC at 50 Hz coil voltage
- 25 hp at 200/208 VAC, 30 hp at 220/230 VAC, 50 hp at 460/480 VAC, 575/600 VAC motor power
- Box lug line side/load side outgoing feeder connection
14HUG32BA Standards
UL Listed File E14900, CSA Certified File LR6535SKU #2447717Part Number #14HUG32BAUNSPSC39121521UPC00783087818088
