Part Number # 22CUC32FA
SKU # 2458643
22CUC32FA
Siemens 22CUC32FA
Part Number # 22CUC32FA
SKU # 2458643
Siemens 22CUC32FA Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 22CUC32FA |
| SKU #: | 2458643 |
| Amperage Rating: | 18 A |
| Auxiliary Contact Rating: | 10 A at 600 VAC, 5 A at 600 VDC |
| Coil Voltage: | 110/190 to 220 V AC at 50 Hz, 110 to 120/220 to 240 V AC at 60 Hz |
| Dimensions: | 15 in W x 7 in D x 24 in H |
| Enclosure Type: | NEMA 4X |
| Frequency Rating: | 60 Hz |
| Full Load Current: | 3 to 12 A |
| Motor Power: | 2 hp at 200/208/220/230 VAC, 5 hp at 460/480/575/600 VAC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | 104 deg F |
| Overload Relay: | Solid-State |
| Phase: | 3 |
| Reset Type: | Automatic/Manual/Remote |
| Timing: | 19 to 29 ms On/10 to 24 ms Off |
| Type: | Heavy Duty Full Voltage Reversing |
| Wattage: | 8.6 W |
| Connection type: | Screw Terminal |
| Country of origin: | US |
| Material: | Fiberglass |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00783087964624 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 22CUC32FA
Brand: Siemens
Part Number: 22CUC32FA
Siemens Non-Combination Motor Starter, Heavy Duty Full Voltage Reversing, 600 VAC, 18 A, 60 Hz Frequency, 8.6 W Wattage, 2 hp at 200/208/220/230 VAC, 5 hp at 460/480/575/600 VAC Motor, 110/190 to 220 VAC at 50 Hz, 110 to 120/220 to 240 VAC at 60 Hz Coil, 3 Pole, 19 to 29 ms On/10 to 24 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph, Terminal Screw Connection, Solid-State Overload Relay, 3 to 12 A Full Load, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 4X Enclosure, Fiberglass, 10000000 Cy
Additional Description: SIEM-22CUC32FA (N) STARTER,FVR SZ0,3-12AMPS,N4 FIBERGLASS,1 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Reversing motor starter, Size 0, H2 Solid-state overload relay, OLR amp range 3-12A, 110 120/220 240VAC 60Hz coil, Non-combination type, Enclosure type 4X fiberglass, Water/dust tight noncorrosive, Standard width enclosure
22CUC32FA Application
Indoor/Outdoor22CUC32FA Item Features
- Suitable for 3-wire pilot control (NO auxiliary contact included)
- NEMA controller size 0
- Water/dust-tight, weatherproof and non-corrosive enclosure
- Standard width enclosure
22CUC32FA Standards
CSA 22.2, No.14|NEMA ICS 2|UL 508SKU #2458643Part Number #22CUC32FAUNSPSC39121521UPC00783087964624

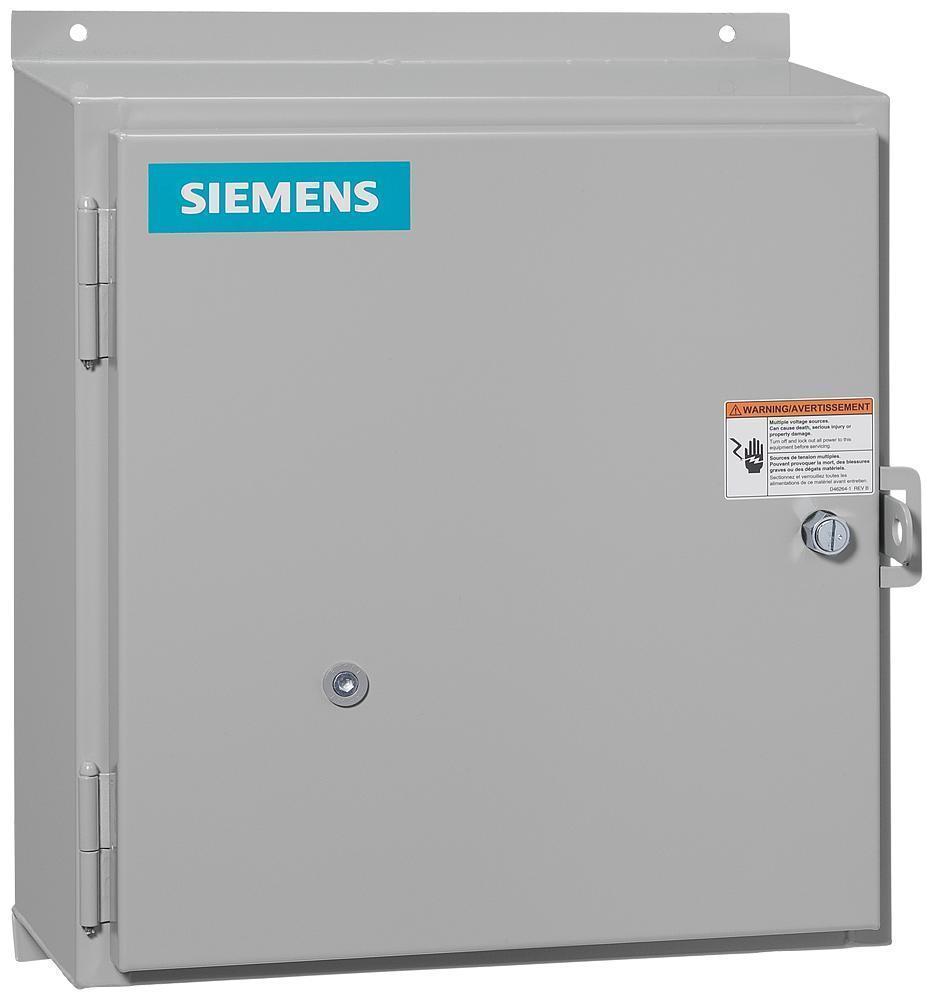

Image provided may only be a representation of final product and may include optional equipment
