Part Number # 30DUEC32B1VA
SKU # 2456532
30DUEC32B1VA
Siemens 30DUEC32B1VA
Part Number # 30DUEC32B1VA
SKU # 2456532
Siemens 30DUEC32B1VA Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 30DUEC32B1VA |
| SKU #: | 2456532 |
| Amperage Rating: | 27 A |
| Auxiliary Contact Rating: | 10 A at 600 VAC, 5 A at 600 VDC |
| Coil Voltage: | 110/120/220/240 V AC |
| Dimensions: | 12 in W x 8 in D x 20 in H |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 60 Hz |
| Full Load Current: | 3 to 12 A Low Speed, 10 to 40 A High Speed |
| Motor Power: | 7-1/2 hp at 200/208/220/230 VAC |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -4 to 104 deg F |
| Overload Relay: | Solid-State |
| Phase: | 3 |
| Reset Type: | Automatic/Manual/Remote |
| Timing: | 19 to 29 ms On/10 to 24 ms Off |
| Type: | Heavy Duty 2-Speed 2-Winding |
| Wattage: | 8.6 W |
| Connection type: | Screw Terminal |
| Country of origin: | US |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00662643849493 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 30DUEC32B1VA
Brand: Siemens
Part Number: 30DUEC32B1VA
Siemens Motor Starter, Heavy Duty 2-Speed 2-Winding, 600 VAC, 27 A, 60 Hz Frequency, 8.6 W Wattage, 7-1/2 hp at 200/208/220/230 VAC Motor, 110/120/220/240 VAC Coil, 19 to 29 ms On/10 to 24 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph ph, Terminal Screw Connection, Solid-State Overload Relay, 3 to 12 A Low Speed, 10 to 40 A High Speed Full Load, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 1 Enclosure, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 12 in W x 8 in D x 20 in
Additional Description: SIEM-30DUEC32B1VA STARTER,COMBO SZ0,5.5-22AMPS,N1
Catalog Description: 2-speed 3-phase motor starter, Size 1, H2 Constant or variable torque, Solid-state overload relays, Low Spd OLR range 3-12A, High Spd OLR range 10-40A, 110 120/220 240VAC 60Hz coil, Enclosure NEMA type 1, Indoor general purpose use
30DUEC32B1VA Application
Indoor and General Purpose30DUEC32B1VA Item Features
- Constant or variable torque
- NEMA controller size 1
SKU #2456532Part Number #30DUEC32B1VAUNSPSC39121521UPC00662643849493

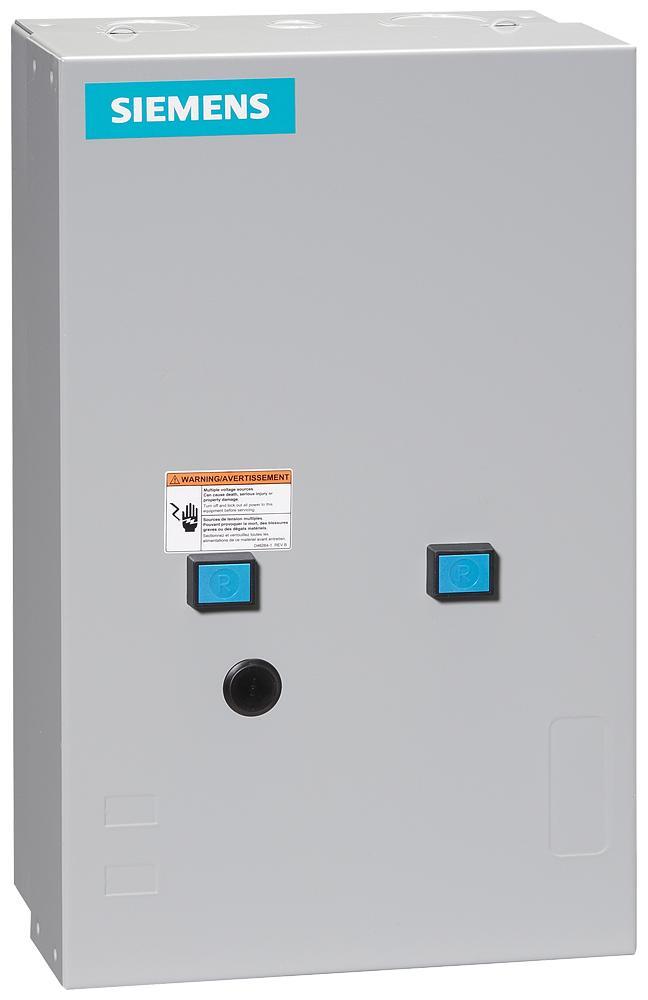

Image provided may only be a representation of final product and may include optional equipment
