3RA21201JE240BB4
Siemens 3RA21201JE240BB4
Part Number # 3RA21201JE240BB4
SKU # 2461300
$501.70 / Each
Typical price:$1211.00 / Each
Siemens 3RA21201JE240BB4 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RA21201JE240BB4 |
| SKU #: | 2461300 |
| Amperage Rating: | 8.5 A |
| Dimensions: | 243 mm H x 45 mm W x 107 mm D |
| Motor Power: | 2 hp, 3 hp, 5 hp, 7-1/2 hp |
| Operating Temperature: | -20 to 60 deg C |
| Overload Relay: | Thermal Bimetal |
| Series: | 3RA212 |
| Setting: | 7 to 10 A |
| Type: | SZ 0 Direct On Line Fuseless Load Feeder |
| Connection type: | Spring Loaded Terminal |
| UNSPSC: | 39121521 |
| UPC: | 00040892955897 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$501.70 / Each
Typical price:$1211.00 / Each
Quantity:
- Siemens SIRIUS Combination Starter, SZ 0 Direct On Line Fuseless Load Feeder, Series: 3RA212, 690 V AC, 8.5 A, 50/60 Hz Frequency, 2 hp, 3 hp, 5 hp, 7-1/2 hp Motor, 24 VDC Coil, 3 Pole, Setting: 7 to 10 A, Spring Loaded Terminal Connection, Thermal Bimetal Overload Relay, IP20 Enclosure, 10000000 Cycles Operating Cycles, -20 to 60 deg C Operating, 243 mm H x 45 mm W x 107 mm D Dimensions
3RA21201JE240BB4 Item Features
- 2 hp at 200/208 VAC, 3 hp at 220/230 VAC, 5 hp at 460/480 VAC, 7-1/2 hp at 575/600 VAC 3-phase motor power
3RA21201JE240BB4 Standards
CSA Certified|UL Listed|EAC Certified|ATEX Certified|CE Certified|ABS Approved|BUREAU VERITAS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL Approved|IEC 60 947-1, EN 60 947-1 (VDE 0660 Part 100)|IEC 60 947-2, EN 60 947-2 (VDE 0660 Part 101)|IEC 60 947-4-1, EN 60 947-4-1 (VDE 0660 Part 102)|REACH Article No. 33|WEEE 2012/19/EUSKU #2461300Part Number #3RA21201JE240BB4UNSPSC39121521UPC00040892955897

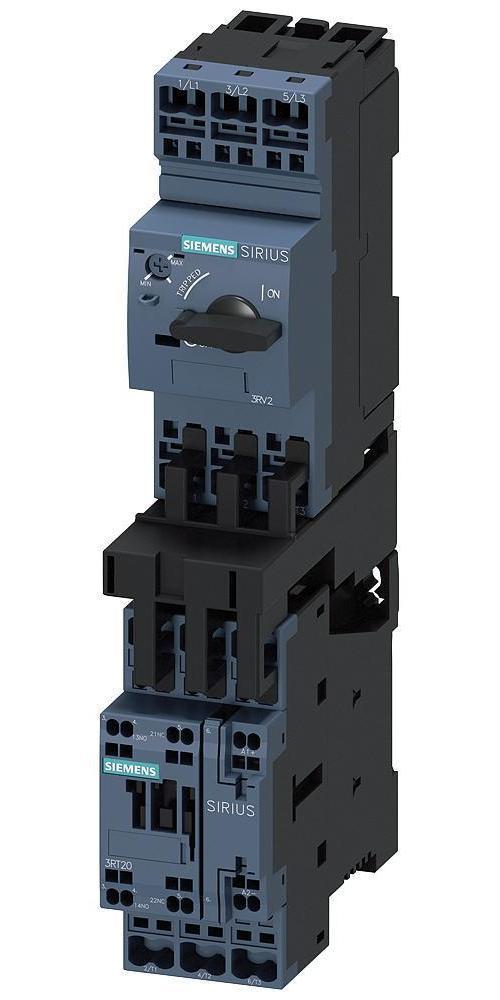

Image provided may only be a representation of final product and may include optional equipment
