Part Number # 3RQ30182AF00
SKU # 2362937
3RQ30182AF00

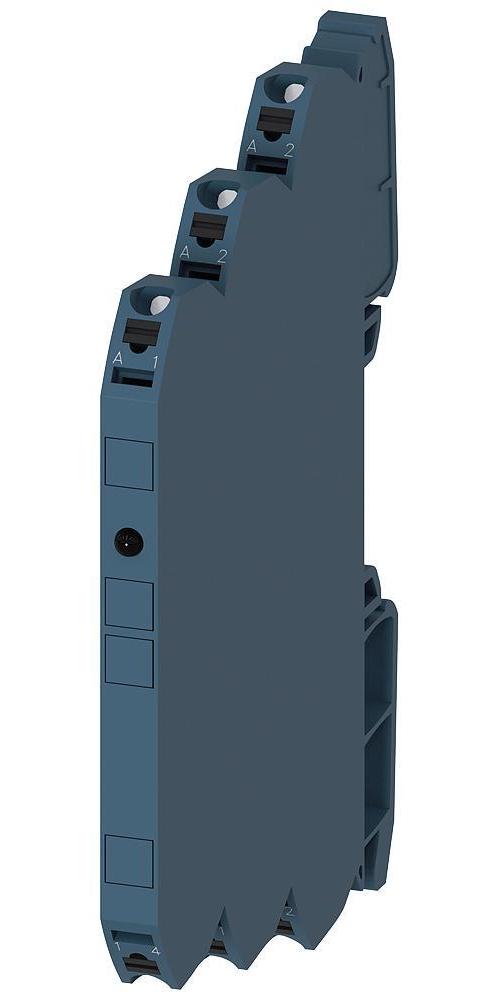

Siemens 3RQ30182AF00 Coupling Relay
Part Number # 3RQ30182AF00
SKU # 2362937
$386.05 / 5Each
Typical price:$587.50 / Each
Siemens 3RQ30182AF00 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RQ30182AF00 |
| SKU #: | 2362937 |
| Coil Voltage: | 230 V AC/DC, 230 VAC/VDC |
| Contact Form: | 1 Changeover |
| Dimensions: | 6.2 mm W x 72.5 mm D x 93 mm H |
| Type: | Narrow Design |
| UNSPSC: | 39122331 |
| UPC: | 00804766216114 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$386.05 / 5Each
Typical price:$587.50 / Each
Quantity:
Siemens 3RQ30182AF00 Coupling Relay
Brand: Siemens
Part Number: 3RQ30182AF00
Siemens Coupling Relay, Narrow Design, 6 A, 50/60 Hz, 230 VAC/VDC Coil, 1 Changeover, Snap-On Mount, Spring Terminal, Green LED, IP20 Enclosure, 6.2 mm W x 72.5 mm D x 93 mm H
Additional Description: SIEM-3RQ30182AF00 CPLR W/RELAY OUT, 230VAC/DC, 1CO
Catalog Description: OUTPUT COUPLING DEVICE, RELAY COUPLER, 1 CO CONTACT 230V AC/DC WIDTH 6.2MM SPRING-TYPE TERMINALS (PUSH IN)
3RQ30182AF00 Application
For electrical separation between the input and output circuit, adjustment of different signal levels and signal amplification3RQ30182AF00 Item Features
- Top wiring for spring type terminals (push-in) for quick and reliable wiring
- Reduced space requirement in the control cabinet thanks to a consistent 6.2 m OAW
- Reduced inventory due to fewer variants
- Clearly visible functional state of the coupling relay by green LED
- Integrated reverse polarity protection and EMC arc-suppression diode
- Standardized accessories across the entire 3RQ3 series
- Universal bridging option using connecting combs for all terminals
- Galvanic isolation plate for isolating different voltages for neighboring units
- Permanently soldered relay for enhanced contact reliability
- Device variants with hard gold-plated contacts, hence high contact reliability at low currents
3RQ30182AF00 Standards
BAA Compliant|CCC Compliant|CE Certified|CSA Certified|EAC Compliant|EN 60947-5-1|IEC 60947-5-1|RCM Certified|UL ListedSKU #2362937Part Number #3RQ30182AF00UNSPSC39122331UPC00804766216114
Image provided may only be a representation of final product and may include optional equipment
