Part Number # 3RQ30521SM40
SKU # 2349691
Brand: Siemens
3RQ30521SM40
Siemens 3RQ30521SM40 SIRIUS Coupling Relay
Part Number # 3RQ30521SM40
SKU # 2349691
$736.00 / 5Each
Typical price:$1120.00 / Each
Siemens 3RQ30521SM40 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RQ30521SM40 |
| SKU #: | 2349691 |
| Amperage Rating: | 1 mA to 2 A |
| Coil Voltage: | 24 V DC |
| Contact Form: | 1NO 1 Form A |
| Contact Rating: | 2 A at 60 V DC |
| Dimensions: | 93 mm H x 6.2 mm W x 72.5 mm D |
| Display Type: | Green LED |
| Enclosure Type: | IP20 |
| Frequency Rating: | 30 Hz |
| Series: | 3RQ3 |
| Temperature Rating (Degrees F): | -25 to 60 deg C |
| Terminal Type: | Screw |
| Type: | Output |
| Country of origin: | TN |
| Mounting type: | Snap-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122331 |
| UPC: | 00804766216275 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$736.00 / 5Each
Typical price:$1120.00 / Each
Quantity:
- Siemens SIRIUS, 3RQ30521SM40, Coupling Relay, Output, Series: 3RQ3, 1 mA to 2 A, 0.3 W Power, 30 Hz Frequency, 24 V DC Coil, 1NO 1 Form A Contact Form, 2 A at 60 V DC Contact, Snap-On Mounting, Screw Terminal, Green LED Display, IP20 Enclosure, -25 to 60 deg C, 93 mm H x 6.2 mm W x 72.5 mm D Dimensions
3RQ30521SM40 Specifications
- The input and output coupling relays differ with regard to the positioning of the terminals and the LED
- Without manual/automatic switch
- Long service life since there is no mechanical wear
- High switching frequency thanks to short make-break times
- Vibration-resistant
- No contact bounce
- Extremely high contact reliability
- Noise-free switching
- Low control power required
- Switching of DC and capacitive loads
3RQ30521SM40 Application
For coupling control signals from and to a controller, electrical separation between the input and output circuit, adjustment of different signal levels and signal amplification3RQ30521SM40 Item Features
- No contact bounce
- Vibration-resistant
- High switching frequency thanks to short make-break times
- Noise-free switching
- Long service life since there is no mechanical wear
- The input and output coupling relays differ with regard to the positioning of the terminals and the LED
- Extremely high contact reliability
- Low control power required
- Without manual/automatic switch
- Switching of DC and capacitive loads
3RQ30521SM40 Standards
CCC Marked|RCM C-Tick Certified|DNV-GL Certified|WEEE (2012/19/EU)|CSA Certified|UL Listed|EAC Approved|DNV-GL Approved|IEC 60947-1|EN 60664-1|EN 50005|EN 60747-5|IEC 61131-2|RoHS CompliantSKU #2349691Part Number #3RQ30521SM40UNSPSC39122331UPC00804766216275

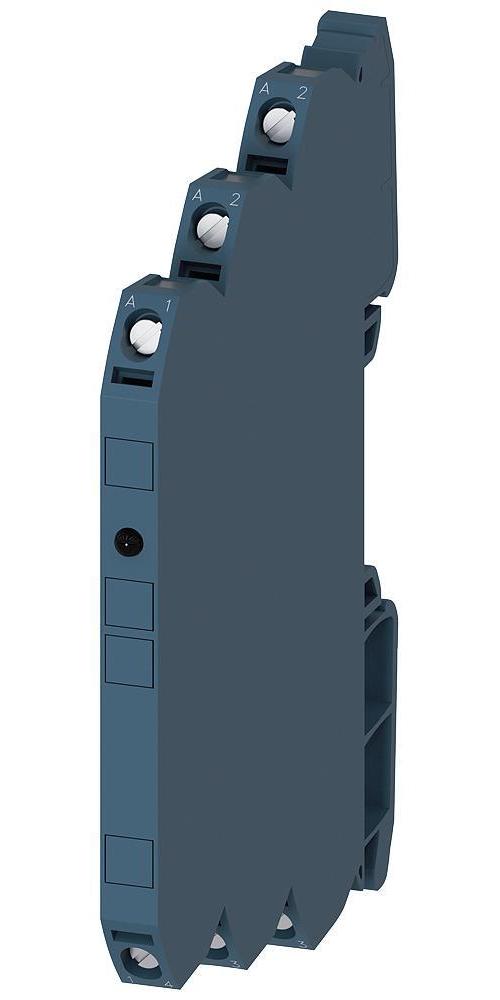

Image provided may only be a representation of final product and may include optional equipment
