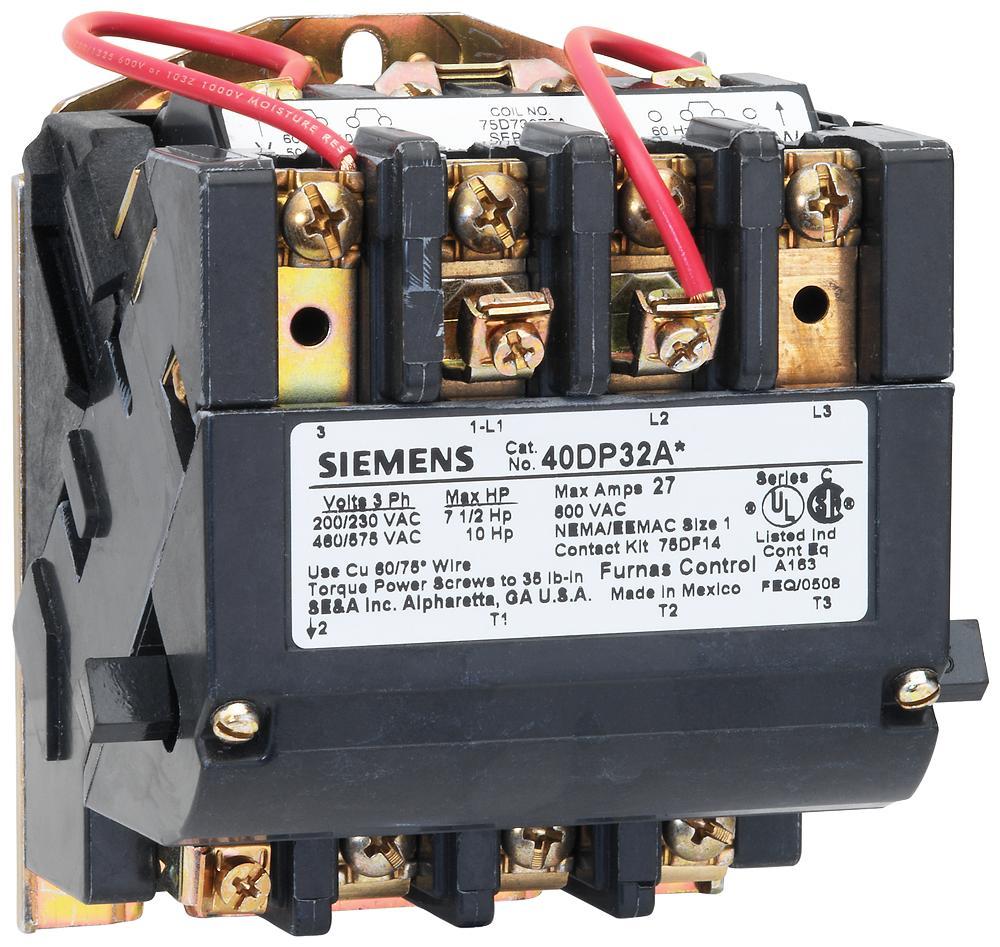

Siemens 40DP32AF NEMA Contactor
Image Disclaimers Message
Siemens 40DP32AF NEMA Contactor
Siemens 40DP32AF NEMA Contactor
Part #:40DP32AF
SKU #: 340423
Key Features
Part #:40DP32AF
SKU #: 340423
Brand: Siemens
Coil Power Rating: 218 VA Pickup, 25 VA Holding
Coil Voltage: 120, 120 VAC
Contact Configuration: 1NO
Dimensions: 4.5 H x 5.75 in W x 3.89 in D
Enclosure Type: Open
- Three phase full voltage
- 3 number of wires (no auxiliary include)
- Without enclosure
- 10000000 mechanical service life of the main contacts typical
Siemens 40DP32AF NEMA Contactor
Siemens NEMA Contactor, 120 VAC Coil, 27 A Maximum Load Current, 218 VA Pickup, 25 VA Holding Coil, 60 Hz Frequency, 8.6 W Wattage, Non-Reversing Contact, 1NO Contact Configuration, Screw Connection, SZ 1 Size, Screw Terminal, Open Enclosure, 10000000 Cycles Contactor/Typical Operating Cycles, -20 to 40 deg C Operating, Surface Mounting, 4.5 H x 5.75 in W x 3.89 in D Dimensions
Additional Description: SIEM-40DP32AF CONTACTOR, SZ1,3PH,OPN,120V,
Catalog Description: Non-reversing NEMA contactor, Size 1, Three phase full voltage, Contactor amp rating 27A, 3 wire (NO aux included), 110V 50Hz / 120V 60Hz coil, Non-combinationtype, Enclosure NEMA type (open), No enclosure
