Brand: Siemens

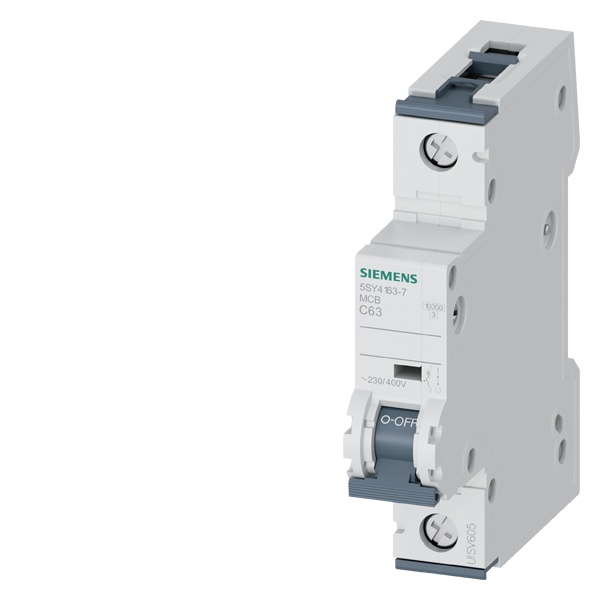

Siemens 5SY4163-7 Sentron Supplementary Protector
Image Disclaimers Message
Brand: Siemens
Siemens 5SY4163-7 Sentron Supplementary Protector
Brand: Siemens
Siemens 5SY4163-7 Sentron Supplementary Protector
Part #:5SY4163-7
SKU #: 2200832
$78.90/EA
Key Features
Part #:5SY4163-7
SKU #: 2200832
Brand: Siemens
Amperage Rating: 63, 63 A
Dimensions: 90 mm H x 18 mm W x 70 mm D
Enclosure Type: IP20
Frequency Rating: 50, 50 Hz
Interrupt Rating: 5, 5 kA
$78.90/EA
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type C characteristic is for general device protection in control circuits
- 35 mm DIN Rail mounting
- Magnetic trip point - 5 to 10 times in rating
- Thermal trip point - 1.13 to 1.45 protector rating
Specifications
Brand: Siemens
Amperage Rating: 63, 63 A
Dimensions: 90 mm H x 18 mm W x 70 mm D
Enclosure Type: IP20
Frequency Rating: 50, 50 Hz
Interrupt Rating: 5, 5 kA
Number of Poles: 1
Temperature Rating (Degrees F): -25 to 45, -25 to 45 deg C
Trip Type: Thermal Magnetic, Thermal/Magnetic
Type: Miniature
Voltage Rating: 480, 480 VAC
Wire Size: 14 to 4, 14 to 4 AWG
Connection type: Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00754554875415
Item FeaturesSupplementary Protection Applications
Item Features
Item FeaturesCE Certified|cULus Listed|CSA 22.2 No. 235|EN 60898|IEC/EN 60947-2|UL 1077 File No E116386
