Part Number # 7PV15121AP30
SKU # 2263251
Image provided may only be a representation of
final product and may include optional equipment
7PV15121AP30

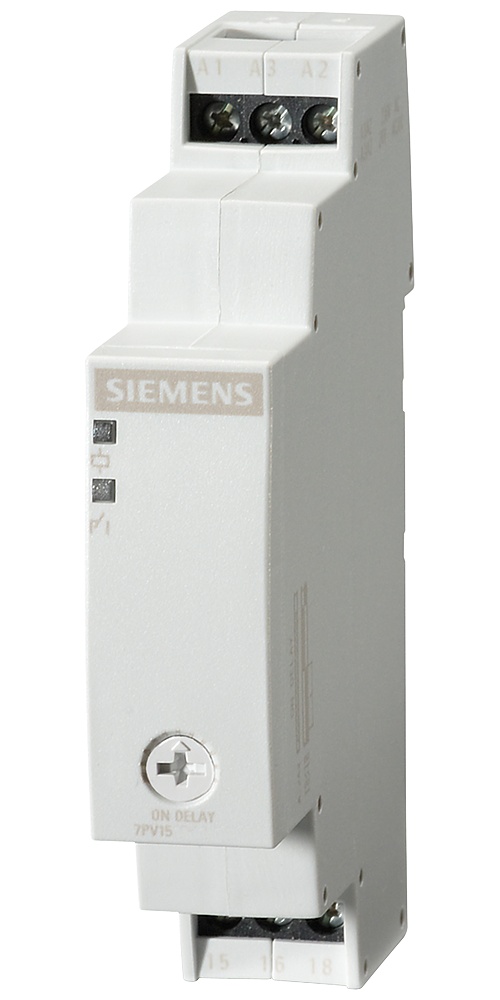

Siemens 7PV15121AP30 Solid State Time Relay
Part Number # 7PV15121AP30
SKU # 2263251
Siemens 7PV15121AP30 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 7PV15121AP30 |
| SKU #: | 2263251 |
| Coil Voltage: | 24 V AC/DC, 200 to 240 V AC, 24 VAC/VDC, 200 to 240 VAC |
| Contact Form: | 1CO, 1CO 1 Form C |
| Dimensions: | 90 mm H x 17.5 mm W x 66.7 mm D |
| Electrical Connections: | Screw Terminal |
| Enclosure Type: | IP20 |
| Operation Mode: | ON-Delay |
| Series: | 7PV15 |
| Time Setting: | 0.5 to 10, 0.5 to 10 s |
| Type: | Electronic Slow Operating |
| Country of origin: | CZ |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122329 |
| UPC: | 00040892552683 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 7PV15121AP30 Solid State Time Relay
Brand: Siemens
Part Number: 7PV15121AP30
Siemens Solid State Time Relay, Electronic Slow Operating, Series: 7PV15, Operation Mode: On-Delay, 1CO Contact Form, 0.5 to 10 s Time Setting, 24 VAC/VDC, 200 to 240 VAC Coil, Screw Terminal Electrical Connections, IP20 Enclosure, DIN Rail Mounting, 90 mm H x 17.5 mm W x 66.7 mm D Dimensions
Additional Description: SIEM-7PV15121AP30 TIME RELAY, SOLID-STATE,AC24,DC24V,SCRW
Catalog Description: Time relay, solid-state, on-delay, 1 co, 1 time range 0.5s...10s, AC 24, 230v and DC 24V, with led, screw terminal
7PV15121AP30 Standards
WEEE (2012/19/EU)|CCC Certified|UL Listed|CE Certified|EAC Certified|RCM CertifiedSKU #2263251Part Number #7PV15121AP30UNSPSC39122329UPC00040892552683
