HNF661J

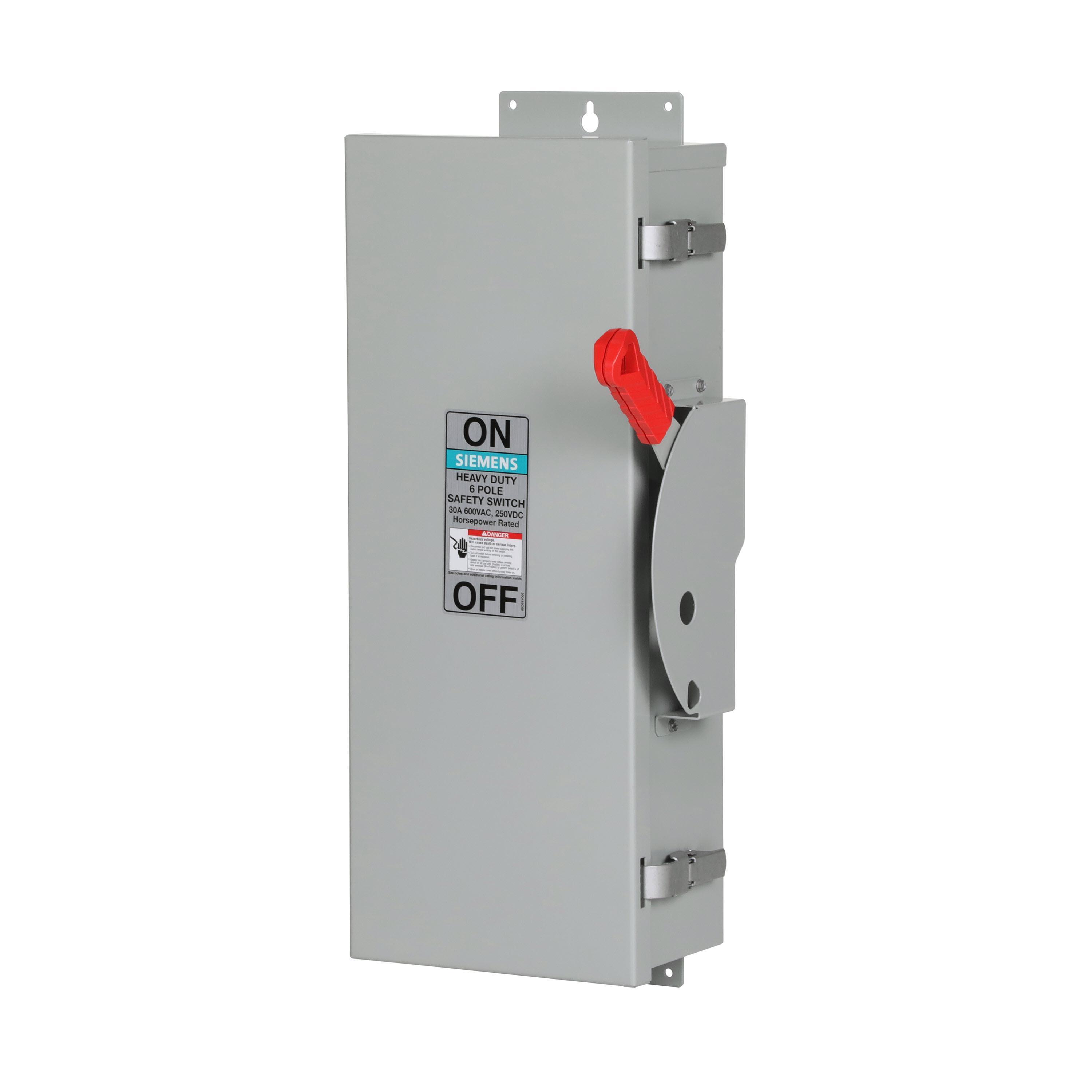

Siemens HNF661J
Part Number # HNF661J
SKU # 2450579
$2633.51 / Each
Typical price:$3039.00 / Each
Siemens HNF661J Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | HNF661J |
| SKU #: | 2450579 |
| Actuator Type: | Lever Operated |
| Contact Form: | 6PST |
| Dimensions: | 14.16 in H x 7.42 in W x 10.46 in D |
| Enclosure Type: | NEMA 12 |
| Horsepower: | 5 hp, 30 hp |
| Number of Poles: | 6 |
| Number of Wires: | 6 |
| Type: | Type VBII Enclosed Heavy Duty Low Voltage Non-Fusible Single Throw |
| UNSPSC: | 39122205 |
| UPC: | 00783643488564 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2633.51 / Each
Typical price:$3039.00 / Each
Quantity:
- Siemens, HNF661J, Safety Switch, Type VBII Enclosed Heavy Duty Low Voltage Non-Fusible Single Throw, 600 V AC/250 V DC, 30 A, 5 hp, 30 hp, 3 ph, 60 Hz Frequency, 6 Pole, 6 Wires, 200 kA Short Circuit, 6PST Contact Form, Lever Operated Actuator, Insulated Insulation, NEMA 12 Enclosure, Surface Mounting, Lug Terminal, -29 to 85 deg C, 14.16 in H x 7.42 in W x 10.46 in D Dimensions, Steel
HNF661J Application
Industrial ApplicationsHNF661J Item Features
- Informative door labeling which includes replacement parts list
- 6 W power loss
- Front removable mechanical lugs that are suitable for CU/AI 60 or 75 deg C conductors. lugs are field convertible to copper body and to a wide variety of compression connectors
- Arc chutes dissipate heat and prolong switch life
- Drawn cover for increased rigidity and resistance to abuse
- Highly visible red handle grip, designed for hook stick operation
- Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands
- Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals, embossed aluminum nameplate on heavy duty switches provides highly visible on/off indication
- Door latch securely holds door closed and allows cover padlocking
- Tangential knockouts through 600 A for easy conduit lineup
- Quick-make, quick break operating mechanism that ensures positive operation
- Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking
- Spring reinforced fuse clips that assure reliable contact for cool operation
- Drawn cover for increased rigidity and resistance to abuse, top key hole and bottom mounting holes provide easy 2 or 3 point mounting
- Side-hinged door that opens past 180 deg for easier wiring
- 10000 operating cycles
- Visible blade, double-break switching action
- Handle can be padlocked in the off position with up to three padlocks with 5/16 in hasps
- Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements
HNF661J Standards
UL98|cUL Listed|UL 98SKU #2450579Part Number #HNF661JUNSPSC39122205UPC00783643488564
Image provided may only be a representation of final product and may include optional equipment
