Part Number # V7E3223
SKU # 2444886
V7E3223
Siemens V7E3223
Part Number # V7E3223
SKU # 2444886
Siemens V7E3223 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | V7E3223 |
| SKU #: | 2444886 |
| Actuator Type: | Handle |
| Amperage Rating: | 60/100 A |
| Contact Form: | 3PST, TPST |
| Dimensions: | 7-1/2 in H x 17 in W x 6-3/4 in D |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 60 Hz |
| Horsepower: | 7.5/15 hp |
| Number of Poles: | 3 |
| Phase: | 3 |
| Short Circuit Current Rating (kA): | 200 kA |
| Temperature Rating (Degrees F): | -20 to 120 deg F |
| Terminal Type: | Screw |
| Type: | Type VB Fused |
| Country of origin: | MX |
| Mounting type: | Inside Panelboard |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122205 |
| UPC: | 00783643232945 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens V7E3223
Brand: Siemens
Part Number: V7E3223
Siemens Vacu-Break® Panelboard Disconnect Switch, Type VB Fused, 250 VAC, 60/100 A, 7.5/15 hp, 3 ph, 60 Hz Frequency, 3 Pole, 200 kA Short Circuit, TPST Contact Form, Handle Actuator, Non-Insulated Insulation, NEMA 1 Enclosure, Inside Panelboard Mounting, Screw Terminal, -20 to 120 deg F, 7-1/2 in H x 17 in W x 6-3/4 in D Dimensions
Additional Description: SIEM-V7E3223 VB SW 17W X 7.5H 3P 240V 60A/100A
Catalog Description: Siemens Low Voltage Circuit Protection Panelboard/Switchboard Units. Type VB PANELBOARD UNITS Std UL V. Rating 250V A. Rating 60/100A No. Of Poles 3P F. Rating60Hz Action SINGLE THROW Mounting INSIDE PANEL BOARD. O. Cycles 10000 O. Temperature (-20F-120F) AMBIENT TEMPERATURE Environmental Conditions INDOOR
V7E3223 Application
For SB1, SB2 switchboards and F1, F2 panelboardsV7E3223 Standards
UL 98 File No. E6849SKU #2444886Part Number #V7E3223UNSPSC39122205UPC00783643232945

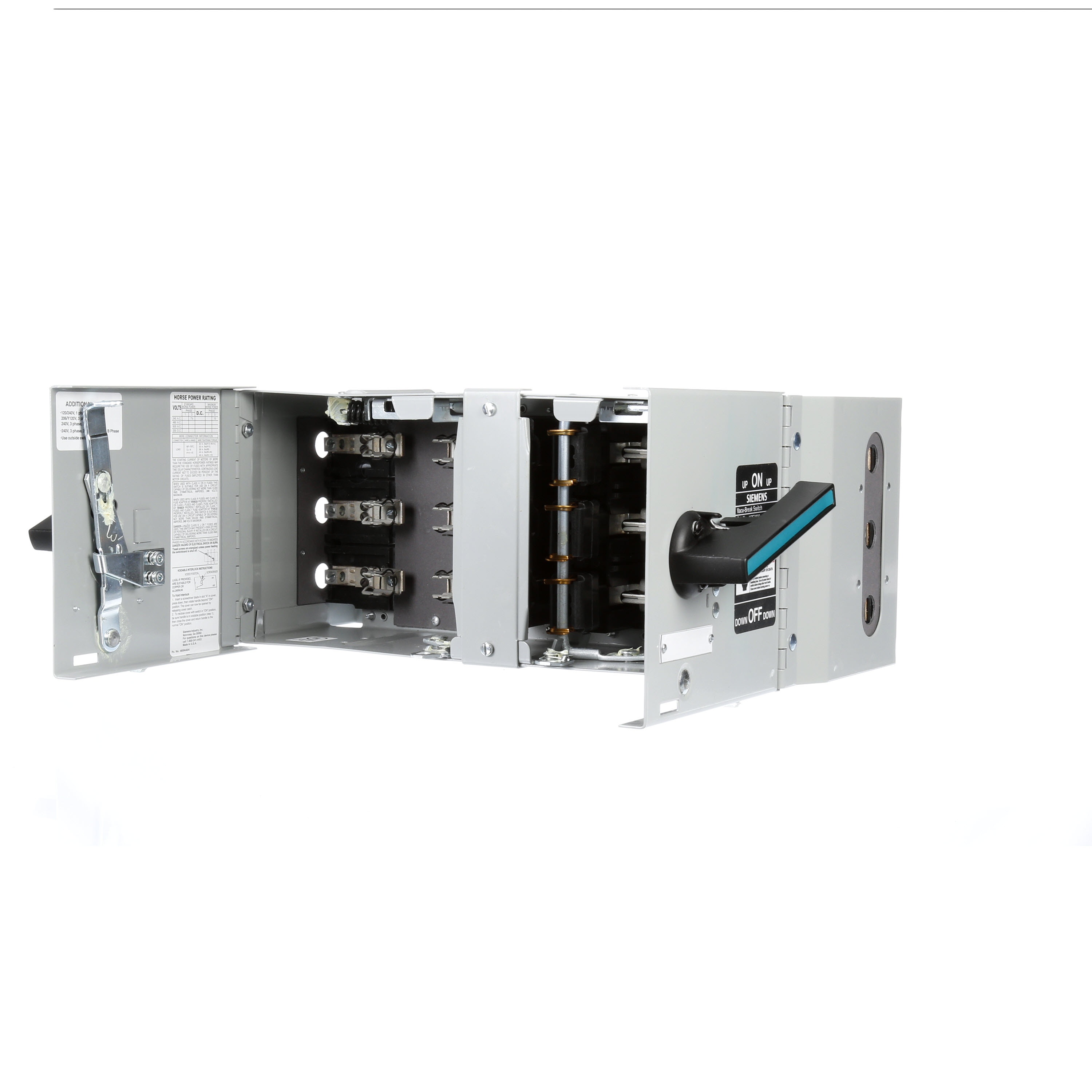

Image provided may only be a representation of final product and may include optional equipment
