Siemens WP4212RJB
Part Number # WP4212RJB
SKU # 2455647

WP4212RJB
Siemens WP4212RJB
Part Number # WP4212RJB
SKU # 2455647
Siemens WP4212RJB Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | WP4212RJB |
| SKU #: | 2455647 |
| Dimensions: | 29.69 in H x 28.53 in W x 8.63 in D |
| Operating Temperature: | 60 to 75 deg C |
| Series: | WP Series |
| Wire Size: | 1/0 AWG to 750 kcmil |
| UNSPSC: | 39121102 |
| UPC: | 00040892875744 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Siemens WP4212RJB
Brand: Siemens
Part Number: WP4212RJB
Siemens UNI-PAK Meter Socket, 2-Position, Series: WP Series, 120/240 V AC, 400 A, 1 ph, Bottom/Top Feed, 5 Jaws, 1/0 AWG to 750 kcmil Wire, Ringless Cover, Insulated Insulation, Surface Mounting, 60 to 75 deg C Operating, 29.69 in H x 28.53 in W x 8.63 in D Dimensions
Additional Description: SIEM-WP4212RJB (N) PAKMTR 400A 2G 1PH 225A 5J RLS HORN NON-CANCELABLE, NON-RETURNABLE **MUST SHIP ON A PALLET**
Catalog Description: Siemens Low Voltage s Multi-Family Metering Line of PAK Metering Standard 225A as part of the PAK Metering Standard 225A Group. Type UNI-PAK Features HORN BYPASS Appn GARDEN - STYLE Std UL-50,67,414 V. Rating 120/240V A. Rating 400A Phase 1PH Size 9.00 x 28.79 x 30.630 No. Of Cutouts 11 Cutout Size 1 x (1/2,3/4,1,1-1/4 ), 6 x (2-1/2,2 ,1-1/2,1-1/4,1 ), 2 x (4,3-1/2,3,2-1/2,2 ), 2X4 Cable Entry TOP OR BOTTOM FEED Terminal 3X2 STUDS. Insulated.Appn . Wall Mounted. Enclosure RINGLESS
WP4212RJB Application
Service Entrance Equipments, Small Apartment Buildings, Small Professional and Commercial Buildings ApplicationsWP4212RJB Item Features
- Completely self-contained meter centers
- Individual split covers
- Compact, pre-bussed, easy to handle, hang and wire
- Barriered, sealable compartment for unmetered current carrying parts
- Aluminum/copper lay-in lugs, except two position 125 A units
- Bottom and rear branch wiring exits
- 11 cutout
- (1) 1/2 in, 3/4 in, 1 in, 1-1/4 in, (6) 2-1/2 in, 2 in, 1-1/2 in, 1-1/4 in, 1 in, (2) 4 in, 3-1/2 in, 3 in, 2-1/2 in, 2 in and (2) 4 in cutout
- Top/bottom cable entry
- 1/0 AWG to 750 kcmil copper/aluminum, (2) 1/0 to 250 aluminum, (2) 1/0 to 3/0 copper line lugs wire range
- 100 kA interrupt rating
- Horn bypass
WP4212RJB Standards
UL50/UL67/UL414SKU #2455647Part Number #WP4212RJBUNSPSC39121102UPC00040892875744

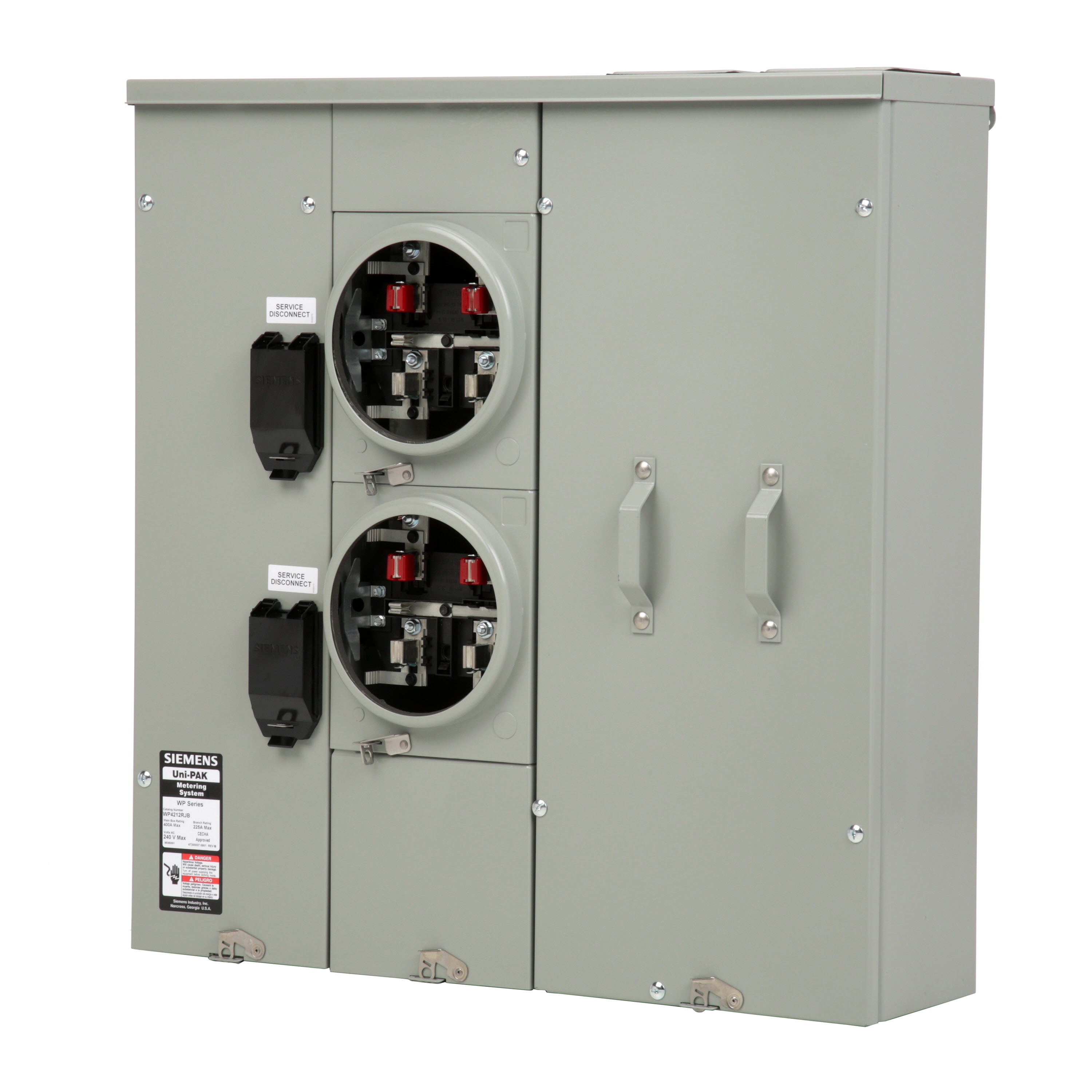

Image provided may only be a representation of final product and may include optional equipment
