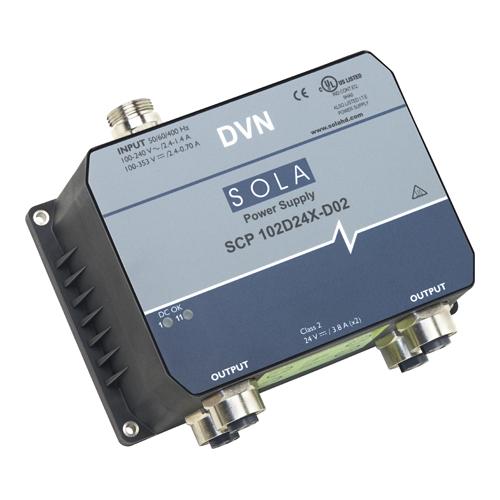

Sola/Hevi-Duty SCP102D24XD02 Power Supply
Part Number # SCP102D24XD02
SKU # 2287788
$1190.60 / Each
Typical price:$1224.62 / Each
Sola/Hevi-Duty SCP102D24XD02 Key Features
| Brand: | Sola/Hevi-Duty |
|---|---|
| Part Number # : | SCP102D24XD02 |
| SKU #: | 2287788 |
| Amperage Rating: | 7.6, 7.6 A |
| Case Material: | Polyamide Nylon |
| Frequency Rating: | 50/60/402, 50/60/402 Hz |
| Input Voltage: | 85 to 264 V AC, 100 to 353 V DC, 85 to 264 VAC, 100 to 353 VDC |
| Series: | SCP-X Extreme Environment |
| Type: | 1-Phase Double Stacked |
| Country of origin: | PH |
| Depth: | 4.73, 4.73 in |
| Height: | 1.8, 1.8 in |
| Mounting type: | Chassis, Surface |
| Output voltage: | 24, 24 V DC, 24 VDC |
| Width: | 7, 7 in |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121004 |
| UPC: | 00783472870691 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1190.60 / Each
Typical price:$1224.62 / Each
Quantity:
- SolaHD Power Supply, 1-Phase Double Stacked, Series: SCP-X Extreme Environment, 85 to 264 V AC, 100 to 353 V DC Input, 24 VDC Output, 200 W Power, 7.6 A, 50/60/402 Hz Frequency, Surface Mounting, Polyamide Nylon Case, 7 in Width, 4.73 in Depth, 1.8 in Height
SCP102D24XD02 Application
For stand alone applications, automotive, packaging and automated distribution operationsSCP102D24XD02 Item Features
- IP66/IP67 rated versatile enclosure
- Can be mounted in any orientation without limitation
- Safety approved for AC and DC universal input
- Reliable operation from -40 to 60 deg C without derating
- DC OK green LED
- Worldwide approvals
SCP102D24XD02 Standards
RoHS Compliant|cULus Listed|UL File No. E61379|UL File No. E137632|ITE Listed|UL 508|CSA C22.2 No. 107.1|UL 60950-1|CSA C22.2 No. 60950-1 2nd Edition|CE Certified|IEC Certified|EN 60950-1 2nd EditionSKU #2287788Part Number #SCP102D24XD02UNSPSC39121004UPC00783472870691
