STV100K24L

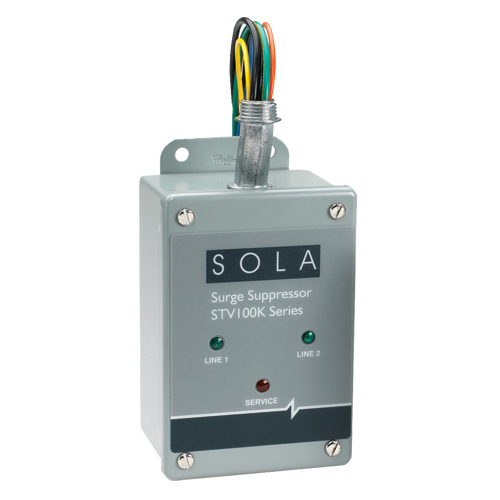

Sola/Hevi-Duty STV100K24L Surge Protective Device
Part Number # STV100K24L
SKU # 2255726
$539.81 / Each
Typical price:$912.35 / Each
Sola/Hevi-Duty STV100K24L Key Features
| Brand: | Sola/Hevi-Duty |
|---|---|
| Part Number # : | STV100K24L |
| SKU #: | 2255726 |
| Dimensions: | 3.2 in H x 6 in W x 4 in D |
| Electrical Ratings: | 240, 240 VAC |
| Enclosure Type: | NEMA 12 |
| Environmental Conditions: | -40 to 60 deg C Temperature/0 to 95% Non-Condensing Humidity |
| Frequency Rating: | 47 to 63, 47 to 63 Hz |
| Indicator Type: | Audible Alarm/LED, LED/Audible Alarm |
| Modes of Protection: | L-N/L-L/L-G/N-G |
| Number of Wires: | 2 |
| Peak Surge Current: | 100, 100 kA |
| Phase: | 1 |
| Response Time: | <0.5, <0.5 ns |
| Series: | STV 100K |
| Short Circuit Current Rating (kA): | 100, 100 kA |
| Country of origin: | MX |
| Material: | Metal |
| Mounting type: | Flanged |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121610 |
| UPC: | 00783472019663 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$539.81 / Each
Typical price:$912.35 / Each
Quantity:
- SolaHD Surge Protective Device, Series: STV 100K, 240 VAC Electrical Rating, 47 to 63 Hz Frequency, 2 Wires, 100 kA Short Circuit, 100 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-N/L-L/L-G/N-G, <0.5 ns Response, LED/Audible Alarm Indicator, 1 ph, Environmental Conditions: -40 to 60 deg C Temperature/0 to 95% Non-Condensing Humidity, NEMA 12 Enclosure, Flanged Mounting, Metal, 3.2 in H x 6 in W x 4 in D Dimensions
STV100K24L Application
Distribution Panels (< 1200 A), Branch, Lighting and Control Panels, Factory Automation Installations and Dedicated Industrial EquipmentSTV100K24L Item Features
- Low clamping levels for more effective protection
- 100 kA peak current rating provides all mode protection against severe transients
- LED status and audible alarms
- Compact, rugged meta
STV100K24L Standards
RoHS Compliant|UL 1449|cULus E-324279 Listed|CSA C22.2 No.8|CSA TI I-IIB, TI A-24 CertifiedSKU #2255726Part Number #STV100K24LUNSPSC39121610UPC00783472019663
