Southwire 28827401 Key Features
| Brand: | Southwire |
|---|---|
| Part Number # : | 28827401 |
| SKU #: | 2468707 |
| Amperage Rating: | 15 A |
| Conductor Size: | 14 AWG |
| Conductor Type: | Solid Copper |
| Jacket Color: | White |
| Jacket Material: | Nylon |
| Number of Conductors: | 2 |
| Outside Diameter: | 0.36 x 0.162 in |
| Strands: | 1 |
| Temperature Rating (Degrees F): | 90 deg C |
| Type: | Type NM-B |
| Country of origin: | US |
| Insulation material: | PVC |
| Length: | 1000 ft |
| Manufacturer Name: | Southwire Company |
| UNSPSC: | 26121517 |
| UPC: | 00003288626301 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Southwire Non-Metallic Sheathed Cable, Type NM-B, Reel Packaging, 600 V AC, 15 A, 2 Conductors, Solid Copper Conductor, 14 AWG Conductor, 0.36 x 0.162 in OD, 1000 ft Length, 1 Strands, PVC Insulation, Nylon Jacket, White Jacket, 90 deg C
28827401 Application
For residential wiring as branch circuits for outlets, switches and other loads Applications28827401 Item Features
- CABLE MAY BE USED for both exposed and concealed work in normally dry locations at temperatures not to exceed 90C (with ampacity limited to that for 60C conductors) as specified in the National Electrical Code
- MAY BE RUN in air voids of masonry block or tile walls where such walls are not wet or damp locations
- VOLTAGE RATING for NM-B cable is 600 V
28827401 Standards
ARRA Compliant|Buy American Act Compliant|ASTM B3/B8|Federal Specification A-A-59544|NEC Certified|NFPA 70-2011 Edition|RoHS Compliant|REACH Compliant|UL 83/719SKU #2468707Part Number #28827401UNSPSC26121517UPC00003288626301

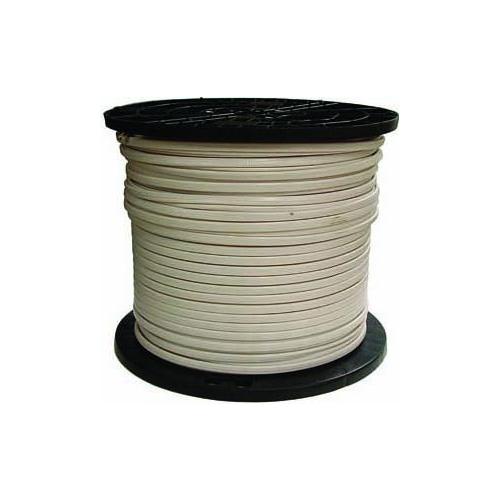

Image provided may only be a representation of final product and may include optional equipment
