Part Number # 28828249
SKU # 2459514
Southwire 28828249 Key Features
| Brand: | Southwire |
|---|---|
| Part Number # : | 28828249 |
| SKU #: | 2459514 |
| Outside Diameter: | 4104 mil |
| Strands: | 1 |
| Type: | Type NM-B |
| Length: | 4000 ft |
| Manufacturer Name: | Southwire Company |
| UNSPSC: | 26121517 |
| UPC: | 00003288603803 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

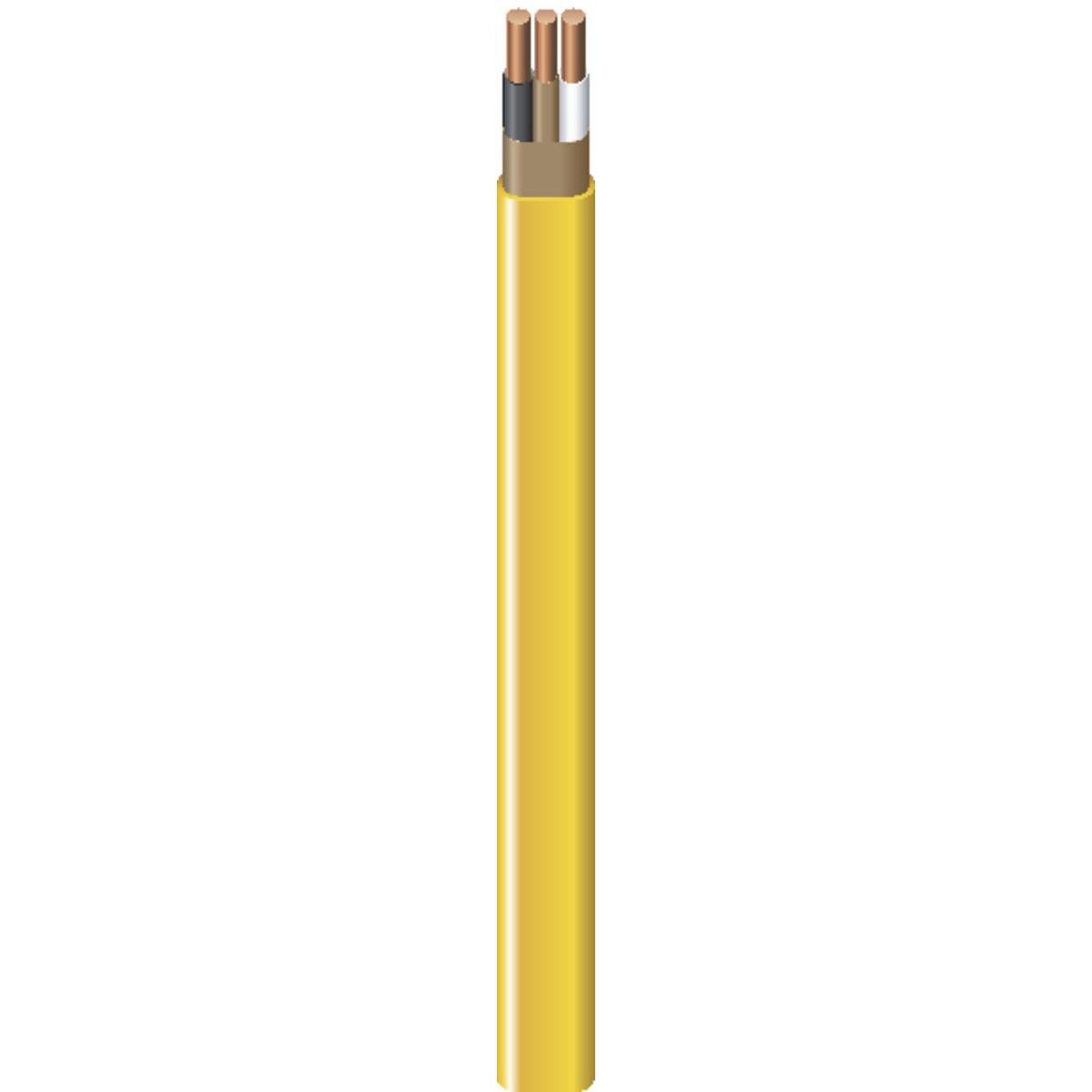

- Southwire Sheathed Cable, Type NM-B, 600 V AC, 20 A, 3 Conductors, Solid Copper Conductor, 12 AWG Conductor, 4104 mil OD, 4000 ft Length, 1 Strands, PVC Insulation, PVC Jacket, Yellow Jacket, 90 deg C
28828249 Application
For used in residential wiring as branch circuits for outlets, switches and other loads28828249 Item Features
- Southwire Romex Brand SIMpull NM-B (nonmetallic-sheathed) cable may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90C
- NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations
- Voltage rating for NM-B cable is 600 V
- https://www.youtube.com/watch?v=_qdIH45D2fI
28828249 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ASTM B-3|B-8 Approved|UL 83|UL 719|Federal Specification A-A-59544|NEC NFPA 70. 2011 Edition|REACH CompliantSKU #2459514Part Number #28828249UNSPSC26121517UPC00003288603803
Image provided may only be a representation of final product and may include optional equipment
