Southwire 55808601 14-41 CU 3/C BLACK/WHITE/GREEN SJOOW
Part Number # 55808601
SKU # 2319482
55808601
Southwire 55808601 14-41 CU 3/C BLACK/WHITE/GREEN SJOOW
Part Number # 55808601
SKU # 2319482
SOUTHWIRE COMPANY 55808601 Key Features
| Brand: | SOUTHWIRE COMPANY |
|---|---|
| Part Number # : | 55808601 |
| SKU #: | 2319482 |
| Amperage Rating: | 18 A |
| Conductor Size: | 14 AWG |
| Conductor Type: | Annealed Bare Stranded Copper |
| Insulation material: | EPDM |
| Jacket Material: | CPE |
| Length: | 250 ft |
| Number of Conductors: | 3 |
| Outside Diameter: | 0.37 in |
| Strands: | 41 |
| Type: | Type SJOOW Flexible |
| UNSPSC: | 26121613 |
| UPC: | 00003288608103 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Royal Cord, Type SJOOW Flexible, Spool Packaging, 300 V AC, 18 A, 3 Conductors, Annealed Bare Stranded Copper Conductor, 14 AWG Conductor, 0.37 in OD, 250 ft Length, 41 Strands, EPDM Insulation, CPE Jacket, Black Jacket, -40 to 90 deg C
55808601 Specifications
- Good tensile strength, elongation and aging characteristics
- Provides premium oil resistance, water resistance and high flexibility
- Excellent abrasion resistance
- NEC, rated hard usage
- Black/white/green conductors
55808601 Application
Indoor, Outdoor, Portable Tools, Portable Appliances, Equipment, Small Motors and Associated Machinery55808601 Item Features
- Designed for extra hard usage on industrial equipment, heavy tools, battery chargers, portable lights, welding leads, marine dockside power, power extensions and mining applications
- Cable is rated -40C to 105C, water, oil, and weather resistant
- https://www.youtube.com/watch?v=QZnxfw1yjKI
55808601 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 62|CSA 22.2 No. 49|OSHA|MSHA P07-KA070018-1MSHA Flame Test|Federal Specification J-C-580B|NEC Article 400SKU #2319482Part Number #55808601UNSPSC26121613UPC00003288608103

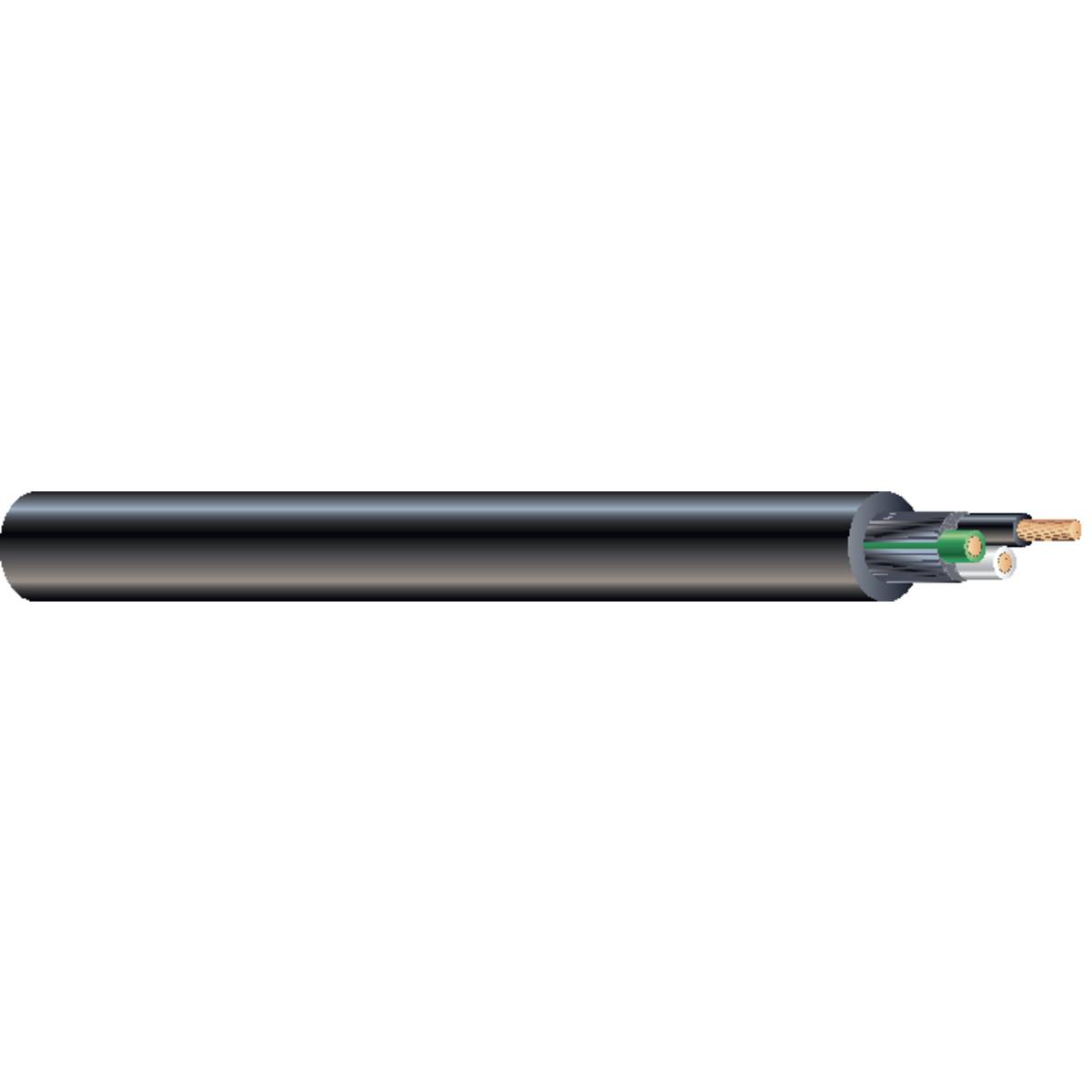

Image provided may only be a representation of final product and may include optional equipment
