Part Number # TFFN-18-WHT-16STR-CU-2500S/R
SKU # 2117958
TFFN-18-WHT-16STR-CU-2500S/R
Southwire TFFN-18-WHT-16STR-CU-2500S/R Copper Wire
Part Number # TFFN-18-WHT-16STR-CU-2500S/R
SKU # 2117958
Southwire TFFN-18-WHT-16STR-CU-2500S/R Key Features
| Brand: | Southwire |
|---|---|
| Part Number # : | TFFN-18-WHT-16STR-CU-2500S/R |
| SKU #: | 2117958 |
| Amperage Rating: | 6 |
| Conductor Size: | 18 |
| Conductor Type: | Stranded Copper |
| Jacket Color: | White |
| Jacket Material: | Nylon |
| Number of Conductors: | 1 |
| Outside Diameter: | 85 |
| Strands: | 16 |
| Temperature Rating (Degrees F): | 90 |
| Type: | Type TFFN/MTW/AWM |
| Insulation material: | PVC |
| Length: | 2500 |
| UNSPSC: | 26121517 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Southwire TFFN-18-WHT-16STR-CU-2500S/R Copper Wire
Brand: SOUTHWIRE
Part Number: TFFN-18-WHT-16STR-CU-2500S/R

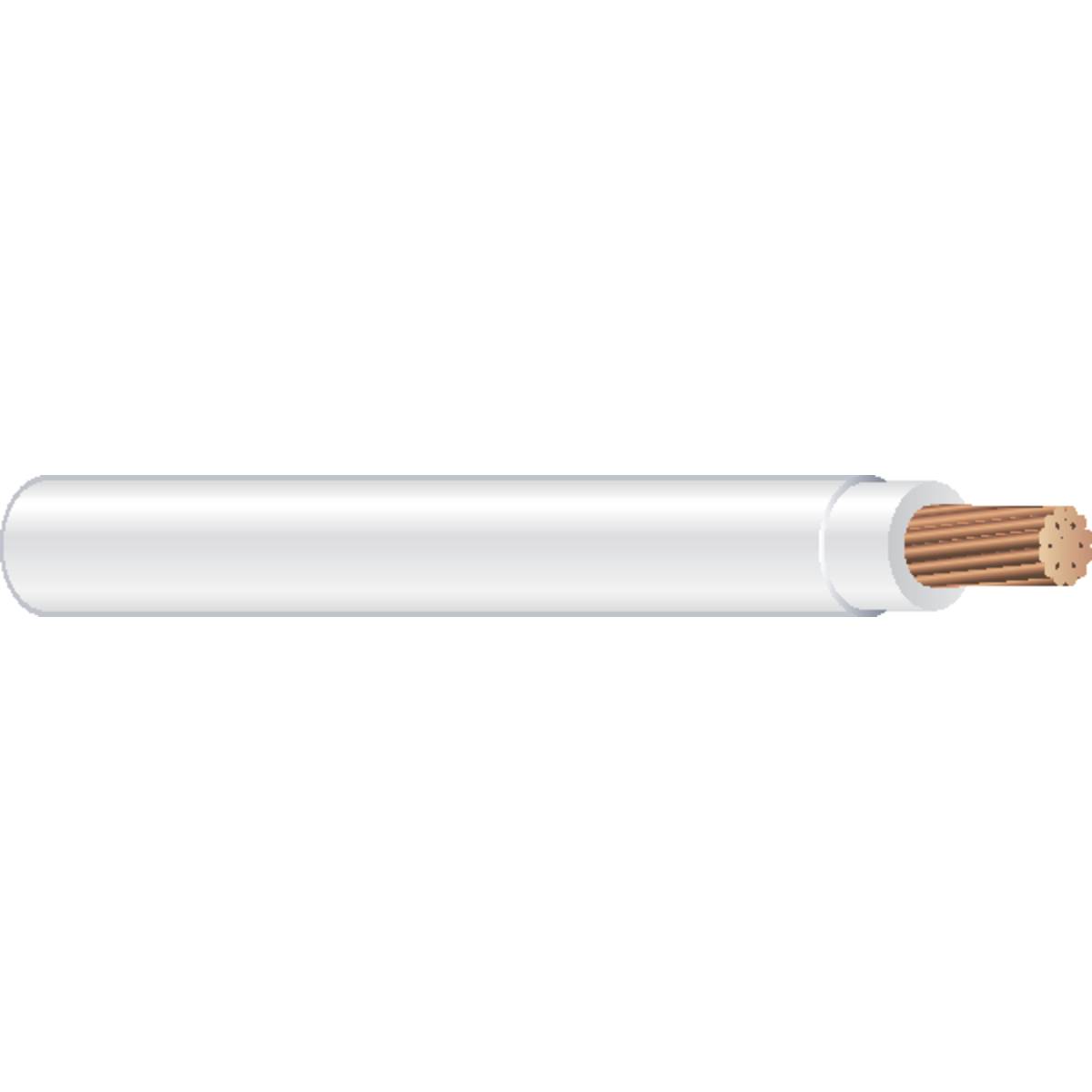

Southwire® Fixture Wire, Type TFFN/MTW/AWM, 600 VAC, 6 A, 1 Conductor, Stranded Copper Conductor, 18 AWG Conductor, 85 mil OD, 2500 ft Length, 16 Strands, PVC Insulation, Nylon Jacket, White Jacket, 90 deg C
Additional Description: SOTH-TFFN-18-WHT-16ST-CU-2500S/R(M) TFFN 18 WHITE, 2500' ROLL
Catalog Description: TFFN 18-16 Str Cu We 2500Sp
TFFN-18-WHT-16STR-CU-2500S/R Specifications
- Voltage for all applications is 600 volts
- Southwire type TFFN or MTW or AWM copper conductors are annealed (soft) copper, insulated with a tough, heat and moisture resistant polyvinyl chloride (PVC), over which a nylon (polyamide) jacket is applied
- Dry locations not to exceed 90 deg C
- Heat/moisture/gasoline/oil resistant
SKU #2117958Part Number #TFFN-18-WHT-16STR-CU-2500S/RUNSPSC26121517UPC
Image provided may only be a representation of final product and may include optional equipment
