Brand: Square D

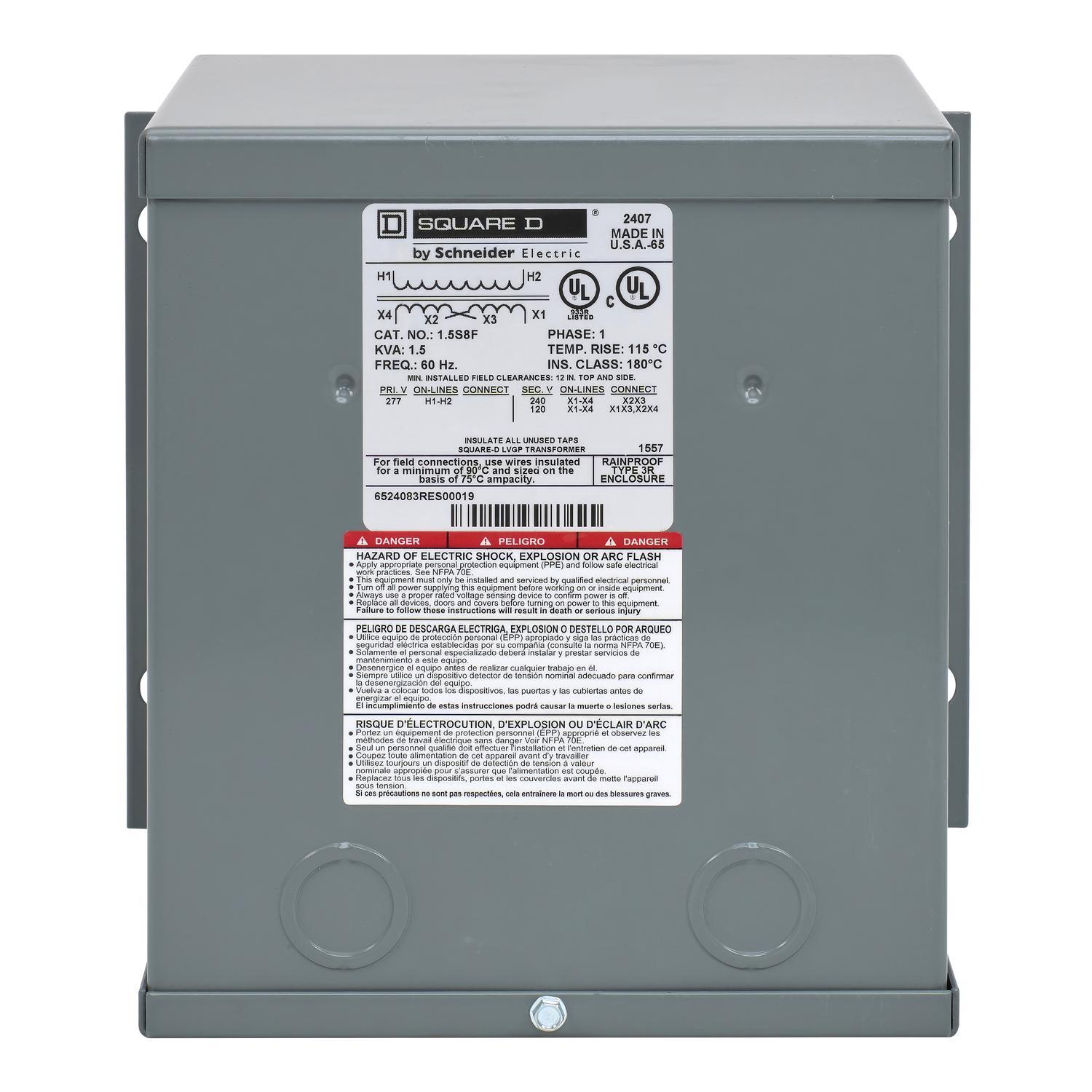

Square D 1.5S8F Low Voltage Transformer

Image Disclaimers Message
Brand: Square D
Square D 1.5S8F Low Voltage Transformer
Brand: Square D
Square D 1.5S8F Low Voltage Transformer
Part #:1.5S8F
SKU #: 2293497
$2314.39/EA
Key Features
Part #:1.5S8F
SKU #: 2293497
Brand: Square D
Dimensions: 8.68 in W x 6.56 in D x 8.25 in H
Enclosure Type: NEMA 3R
Frequency Rating: 60, 60 Hz
Insulation: 356, 356 deg F
Phase: 1, 1 ph
$2314.39/EA
- Painted finish
- Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry
- Large stock level of the product located in 2 Square D distribution centers, allowing customer to obtain product quickly
- Can be field connected for 3 ph applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant
- Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer
- General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories
- Resin-filled transformers
Specifications
Brand: Square D
Dimensions: 8.68 in W x 6.56 in D x 8.25 in H
Enclosure Type: NEMA 3R
Frequency Rating: 60, 60 Hz
Insulation: 356, 356 deg F
Phase: 1, 1 ph
Power Rating: 1.5, 1.5 kVA
Primary Voltage: 277, 277 VAC
Secondary Voltage: 120/240, 120/240 VAC
Temperature Rating (Degrees F): 115, 115 deg C
Type: Dry Sealed
Country of origin: US
Housing material: Sheet steel
Mounting type: Wall
Manufacturer Name: Schneider Electric
UNSPSC: 39121001
UPC: 00785901338321
Item FeaturesOEM Commercial, Industrial Markets
Item Features
Item FeaturesCSA Certified|cULus Listed|REACH Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
