Part Number # 15S40FSS
SKU # 2218085

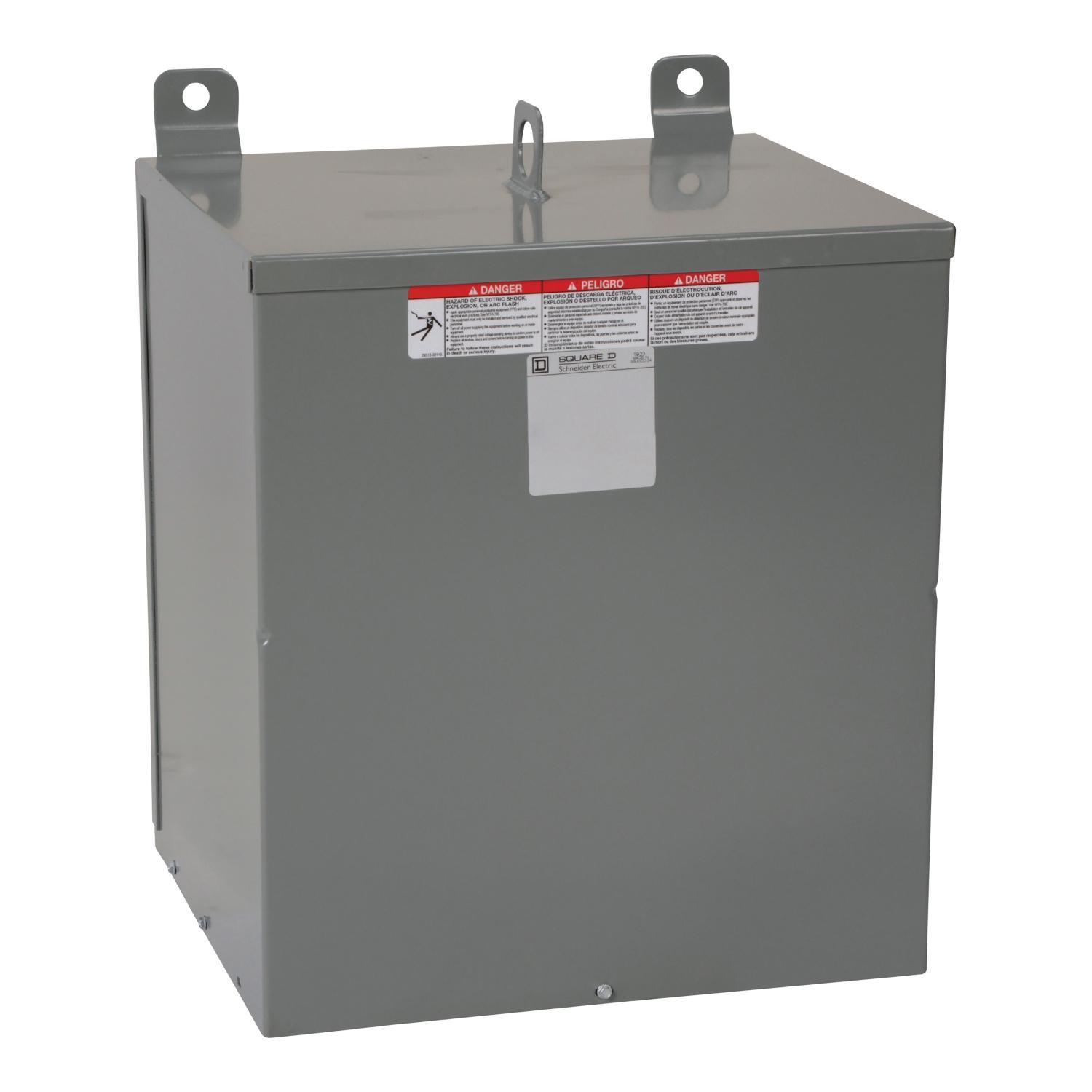

Image provided may only be a representation of
final product and may include optional equipment
15S40FSS
Square D 15S40FSS Low Voltage Transformer
Part Number # 15S40FSS
SKU # 2218085
Square D 15S40FSS Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 15S40FSS |
| SKU #: | 2218085 |
| Dimensions: | 15 in W x 13-1/2 in D x 20 in H |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 60, 60 Hz |
| Insulation: | 356, 356 deg F |
| Number of Taps: | 2 |
| Phase: | 1, 1 ph |
| Primary Voltage: | 480, 480 V AC, 480 VAC |
| Secondary Voltage: | 120/240, 120/240 V AC, 120/240 VAC |
| Temperature Rating (Degrees F): | 115, 115 deg C |
| Type: | Dry Sealed |
| Country of origin: | US |
| Housing material: | 316 Stainless Steel |
| Mounting type: | Wall |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121001 |
| UPC: | 00785901538301 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D 15S40FSS Low Voltage Transformer
Brand: Square D
Part Number: 15S40FSS
Square D Low Voltage Transformer, Dry Sealed, 480 VAC Primary, 120/240 VAC Secondary, 15 kVA, 60 Hz, 1 ph, 2 Taps, Wall Mount, 356 deg F, NEMA 3R Enclosure, 115 deg C, 316 Stainless Steel Housing, 15 in W x 13-1/2 in D x 20 in H
Additional Description: SQD -15S40FSS (N) TRANSFORMER DRY 1PH 15KVA 480V-120/240V NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Transformer, dry type, encapsulated, 15kVA, 1 phase, 480V primary, 120/240V secondary, 15B, 115C rise [TAA]
15S40FSS Application
OEM Commercial, Industrial Markets15S40FSS Item Features
- Resin filled transformers are epoxy encoapsulated
- Individual enclosures from 50VA through 5kVA
- Can be configured into autotransformer
15S40FSS Standards
ANSI 49|CSA Certified|cULus Listed|ECCN EAR99|REACH Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2218085Part Number #15S40FSSUNSPSC39121001UPC00785901538301
