Brand: Square D
275T145HDIT

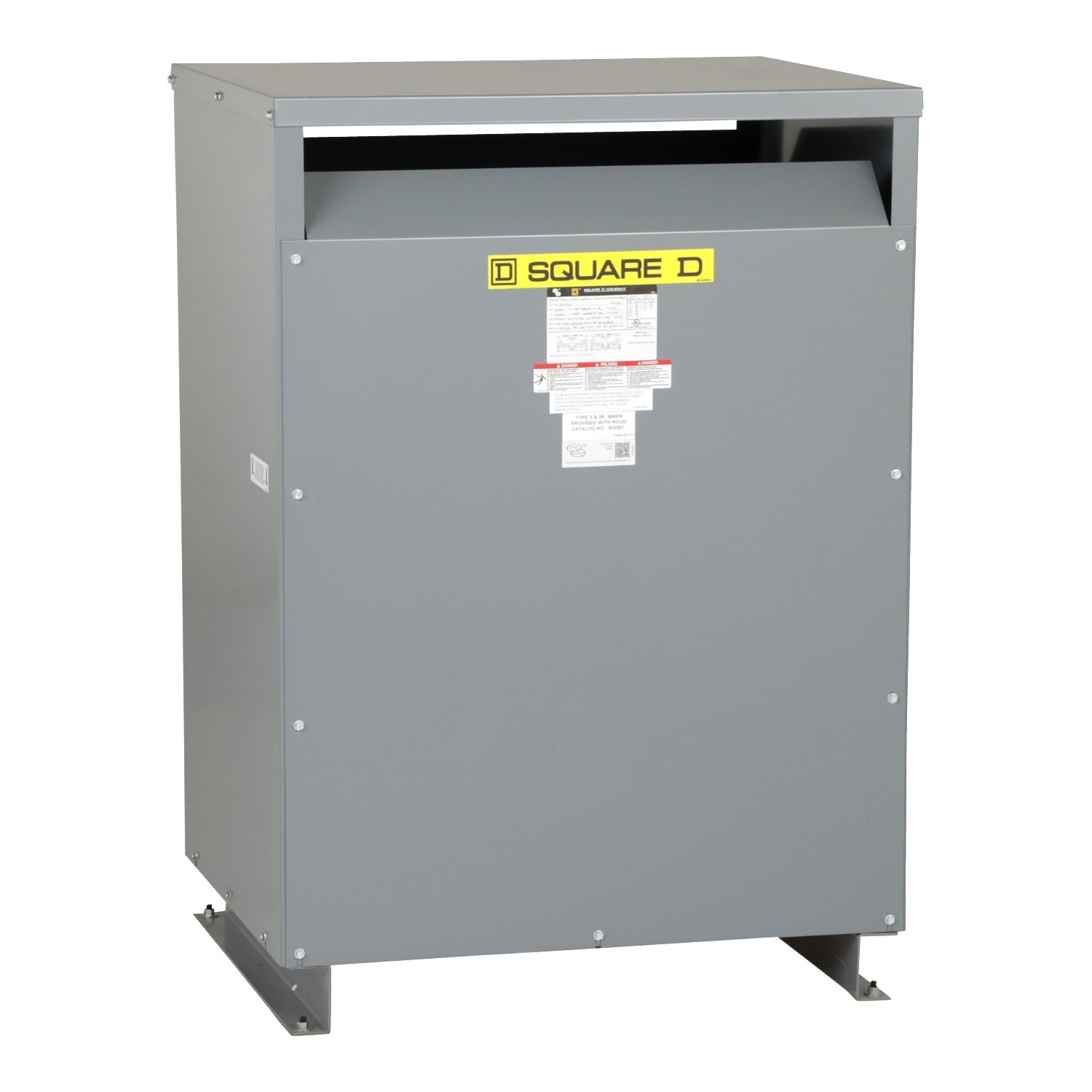

Square D 275T145HDIT Drive Isolation Transformer
Part Number # 275T145HDIT
SKU # 2242401
$49790.39 / Each
Square D 275T145HDIT Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 275T145HDIT |
| SKU #: | 2242401 |
| Dimensions: | 49-1/2 in H x 41 in W x 32 in D |
| Enclosure Type: | NEMA 2 |
| Frequency Rating: | 60, 60 Hz |
| Insulation: | Class B 428 deg F |
| Number of Taps: | 2 |
| Phase: | 3 |
| Primary Voltage: | 460 Delta VAC |
| Secondary Voltage: | 460Y/265 VAC |
| Temperature Rating (Degrees F): | 150, 150 deg C |
| Type: | Dry Ventilated |
| Country of origin: | MX |
| Mounting type: | Floor |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121029 |
| UPC: | 00785901837886 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$49790.39 / Each
Quantity:
Square D 275T145HDIT Drive Isolation Transformer
Brand: Square D
Part Number: 275T145HDIT
Square D Drive Isolation Transformer, Dry Ventilated, 460 Delta VAC Primary, 460Y/265 VAC Secondary, 275 kVA, 60 Hz, 3, 2 Taps, Floor Mount, Class B 428 deg F, NEMA 2, 150 deg C, 49-1/2 in H x 41 in W x 32 in D
Additional Description: SQD -275T145HDIT (N) TRFMR DRY 3PH 275KVA 460V-460Y/265V NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Transformer, drive isolation, dry, 275kVA, 3 phase, 460V delta primary, 460Y/265V secondary, 25D, 150C rise
275T145HDIT Application
SCR Controlled Heating or Furnaces, 3-ph Rectifier Input DC Power Supplies, 3-ph Switched Mode Power Supplies and General Purpose Applications275T145HDIT Item Features
- Designed for the requirements of both adjustable frequency and DC motor drive power isolation, 6-pulse drive applications
- Meets 4% minimum reactance for 150 deg C temperature rise designs
- Conforms to IEEE-597 class B overload, which requires 150% of load for one minute per hour
- Designed for the thermal and mechanical stress of highly cyclic process control applications
- Drive isolation transformers provide reactive control of current harmonics for both AC and DC motor drives, either static bridge or SCR switch input type
- Aluminum windings
- (2) +/-1 at 5% taps
275T145HDIT Standards
REACH Compliant|UL 1561|IEEE 597-1983|Green Premium|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2242401Part Number #275T145HDITUNSPSC39121029UPC00785901837886
