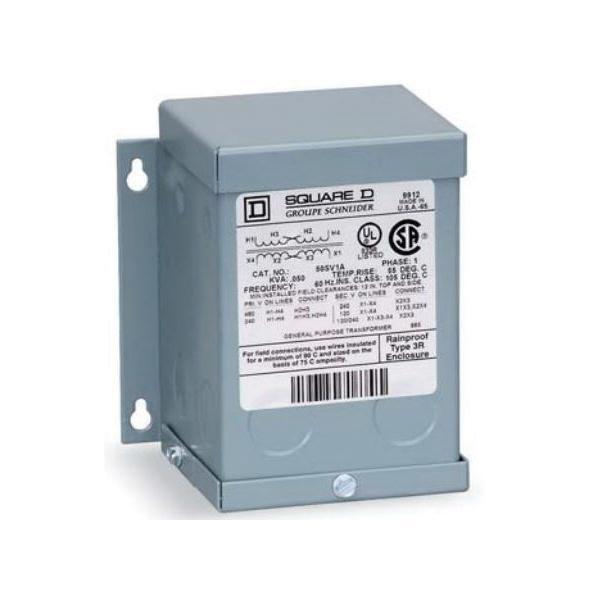

Square D 2S7F Transformer
Image Disclaimers Message
Square D 2S7F Transformer
Square D 2S7F Transformer
Part #:2S7F
SKU #: 2138220
Key Features
Part #:2S7F
SKU #: 2138220
Brand: Square D
Dimensions: 6.56 in L x 8.68 in W x 9.56 in H
Enclosure Type: NEMA 3R
Frequency Rating: 60 Hz
Insulation: 180 deg C
Phase: 1
- Resin filled general purpose transformers are epoxy encapsulated
- The enclosure has no openings, making resin filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation
- The core and coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection
Square D 2S7F Transformer
Square D Transformer, Dry Sealed General Purpose, 208 VAC Primary, 120/240 VAC Secondary, 2 kVA Power, 60 Hz Frequency, 1 ph, Wall Mounting, 180 deg C Insulation, NEMA 3R Enclosure, 115 deg C, Steel Housing Material, 6.56 in L x 8.68 in W x 9.56 in H Dimensions
Additional Description: SQD -2S7F (N) TRANSFORMER DRY 1PH 2KVA 208V-120/240V NON-CANCELABLE, NON-RETURNABLE
Catalog Description: [TAA, BAA, BABA, BAA_COTS] Transformer, dry type, encapsulated, 2kVA, 1 phase, 208V primary, 120/240V secondary, 9A, 115C rise
