- Painted finish
- Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry
- Large stock level of the product located in 2 Square D distribution centers, allowing customer to obtain product quickly
- Can be field connected for 3-phase applications, when codes limit size of transformers (other air handling space - not to exceed 50kVA) or where floor space is limited but wall space is abundant
- Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United States - eliminating the need to wait for customer built transformer
- General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories
- Resin filled transformers
Specifications
Brand: Square D
Dimensions: 6.5 in L x 8.62 in W x 10.5 in H
Enclosure Type: NEMA 3R
Frequency Rating: 60, 60 Hz
Insulation: 180, 180 deg C
Phase: 1
Power Rating: 3, 3 kVA
Primary Voltage: 277, 277 VAC
Secondary Voltage: 120/240, 120/240 VAC
Temperature Rating (Degrees F): 115, 115 deg C
Type: Dry Sealed Low Voltage
Country of origin: US
Housing material: Sheet steel
Mounting type: Wall
Manufacturer Name: Schneider Electric
UNSPSC: 39121001
UPC: 00785901015543

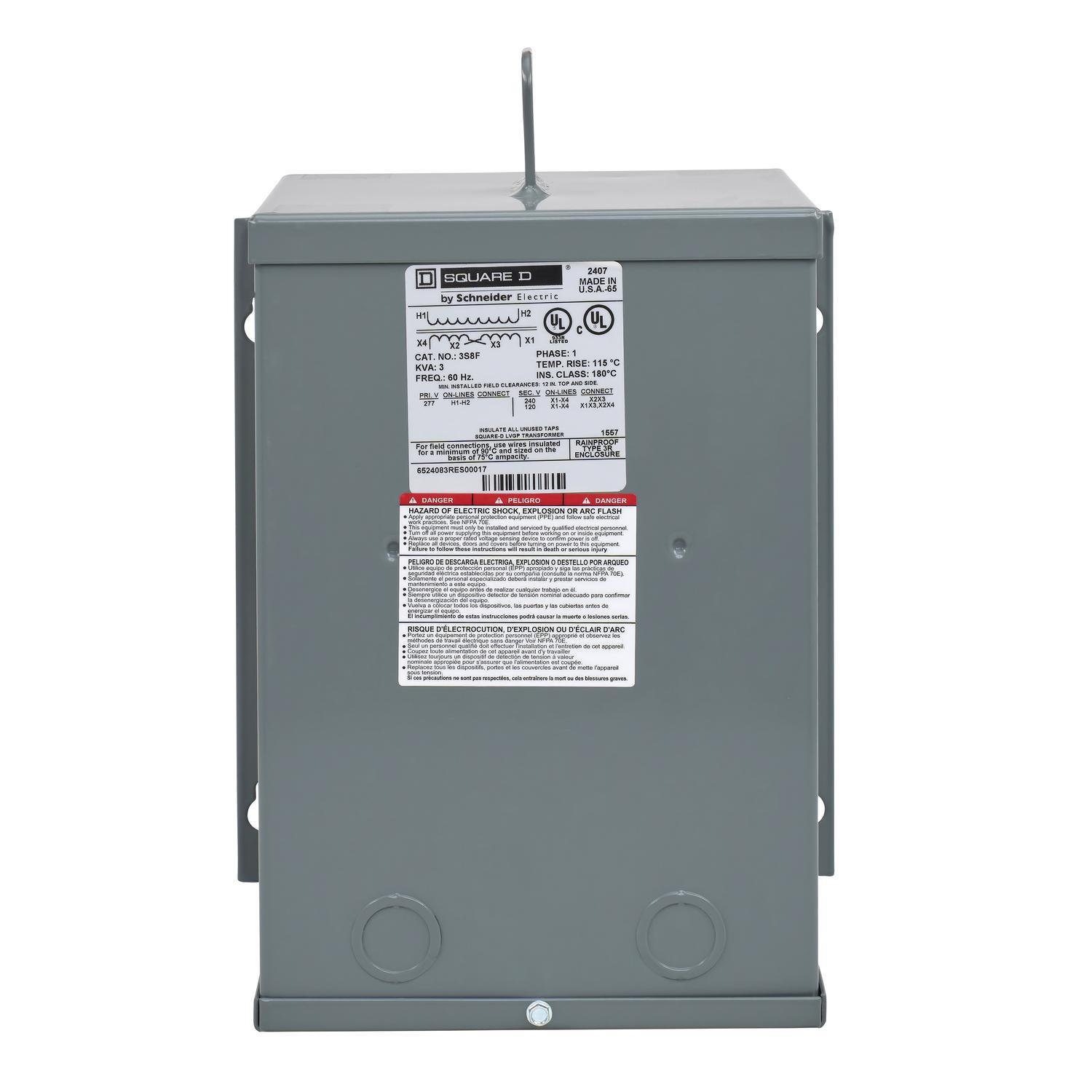

Square D 3S8F Transformer
Square D Transformer, Dry Sealed Low Voltage, 277 VAC Primary, 120/240 VAC Secondary, 3 kVA Power, 60 Hz Frequency, 1 ph, Wall Mounting, 180 deg C Insulation, NEMA 3R Enclosure, 115 deg C, Sheet Steel Housing Material, 6.5 in L x 8.62 in W x 10.5 in H Dimensions
Additional Description: SQD -3S8F (N) TRANSFORMER DRY 1PH 3KVA 277V-120/240V NON-CANCELABLE, NON-RETURNABLE
Catalog Description: [TAA, BAA, BABA, BAA_COTS] Transformer, dry type, encapsulated, 3kVA, 1 phase, 277V primary, 120/240V secondary, 10A, 115C rise
Item FeaturesFor intended power, heating, lighting applications, OEM commercial and industrial markets
Item Features
Item FeaturesECCN EAR99|CSA Certified|cULus Listed|REACH Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
