Part Number # 8501CDO16V53
SKU # 2227796
Image Disclaimers Message
8501CDO16V53

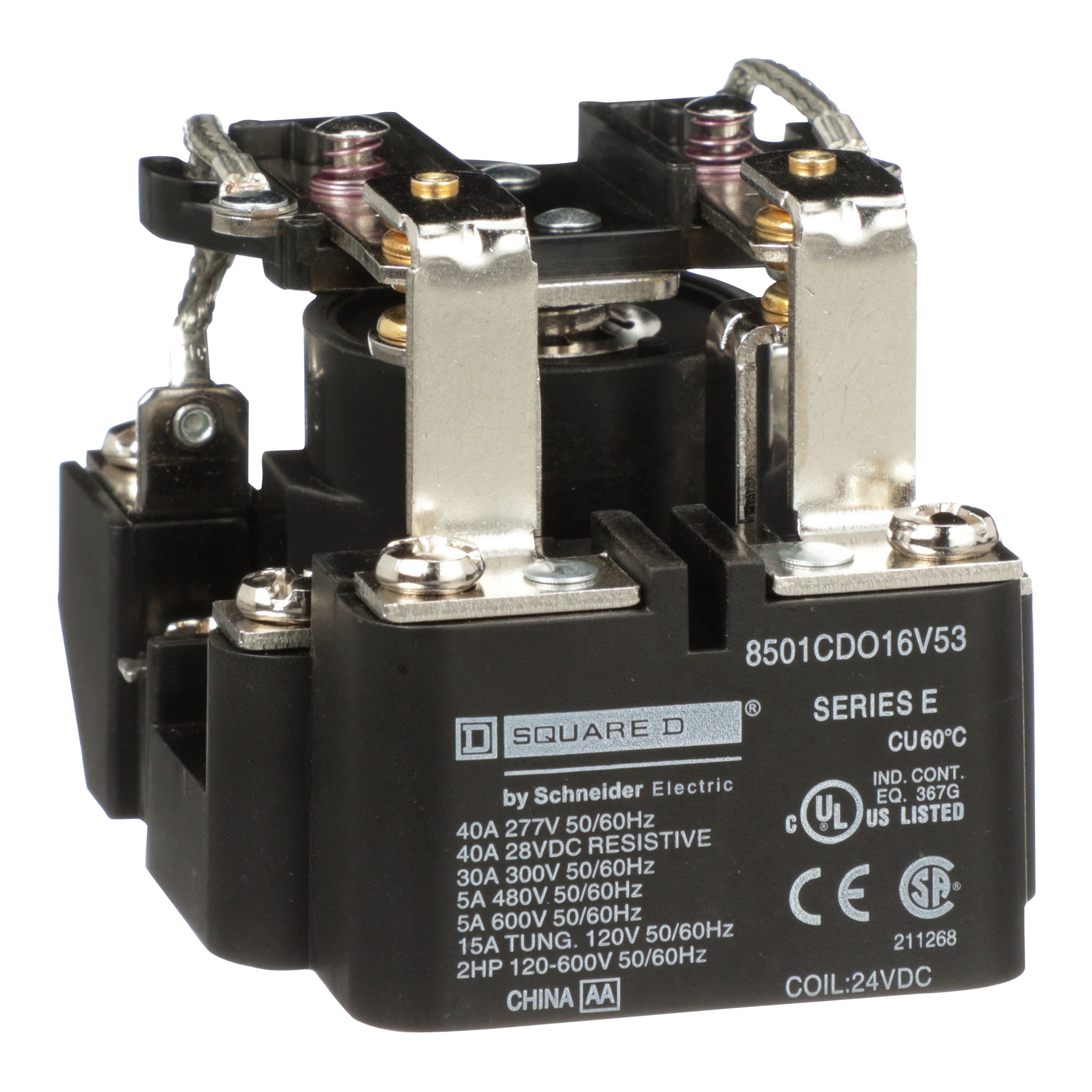

Square D 8501CDO16V53 Power Relay
Part Number # 8501CDO16V53
SKU # 2227796
$111.33 / Each
Square D 8501CDO16V53 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8501CDO16V53 |
| SKU #: | 2227796 |
| Amperage Rating: | 30, 30 A |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Contact Form: | 2NO-2NC 2 Form C DPDT, 2NO-2NC DPDT, 2NO-2NC/DPDT |
| Contact Rating: | 30 A at 300 V AC, 5 A at 600 V AC, 30 A at 300 VAC, 5 A at 600 VAC |
| Dimensions: | 2.31 in H x 3.12 in W x 2.5 in D, 3.12 in W x 2.5 in D x 2.31 in H |
| Enclosure Type: | NEMA 1 |
| Number of Poles: | 2 |
| Series: | 8501C |
| Temperature Rating (Degrees F): | -22 to 140, -22 to 140 deg F |
| Terminal Type: | Screw, Screw/Clamp |
| Type: | 1-Phase General Purpose, General Purpose Type C |
| Country of origin: | CN |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122324 |
| UPC: | 00785901052197 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$111.33 / Each
Quantity:
Square D 8501CDO16V53 Power Relay
Brand: Square D
Part Number: 8501CDO16V53
Square D Power Relay, General Purpose Type C, Series: 8501C, 30 A, 1-1/2 hp, 24 VDC Coil, 2NO-2NC/DPDT, 30 A at 300 VAC, 5 A at 600 VAC Contact, 2 Pole, Panel Mount, Screw Terminal, NEMA 1, -22 to 140 deg F, 3.12 in W x 2.5 in D x 2.31 in H
Additional Description: SQD -8501CDO16V53 (N) RELAY 600VAC 5AMP TYPE C +OPTIONS NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Power Relay, Type C, 2 hp, 30A resistive at 300VAC, DPDT, 2 normally open and 2 normally closed contact, 24VDC coil
8501CDO16V53 Application
Controlling Small Single Phase Motors and Other Light Loads such as Electric Heaters, Pilot Lights or Audible Signals, Pumps, Conveyors and Material Handling Equipment Applications8501CDO16V53 Item Features
- Visible contacts
- Low cost
- Horsepower rated
- 8501 type C open frame Power Relays
8501CDO16V53 Standards
CCN NLDX/NLDX7|CE Marked|CSA Certified|CSA File No. 209683 Class 321104|IEC 60947-4-1|RoHS Compliant|UL File No. E78351SKU #2227796Part Number #8501CDO16V53UNSPSC39122324UPC00785901052197
