Part Number # 8501CO15V20
SKU # 2210914
Image Disclaimers Message
Brand: Square D
8501CO15V20

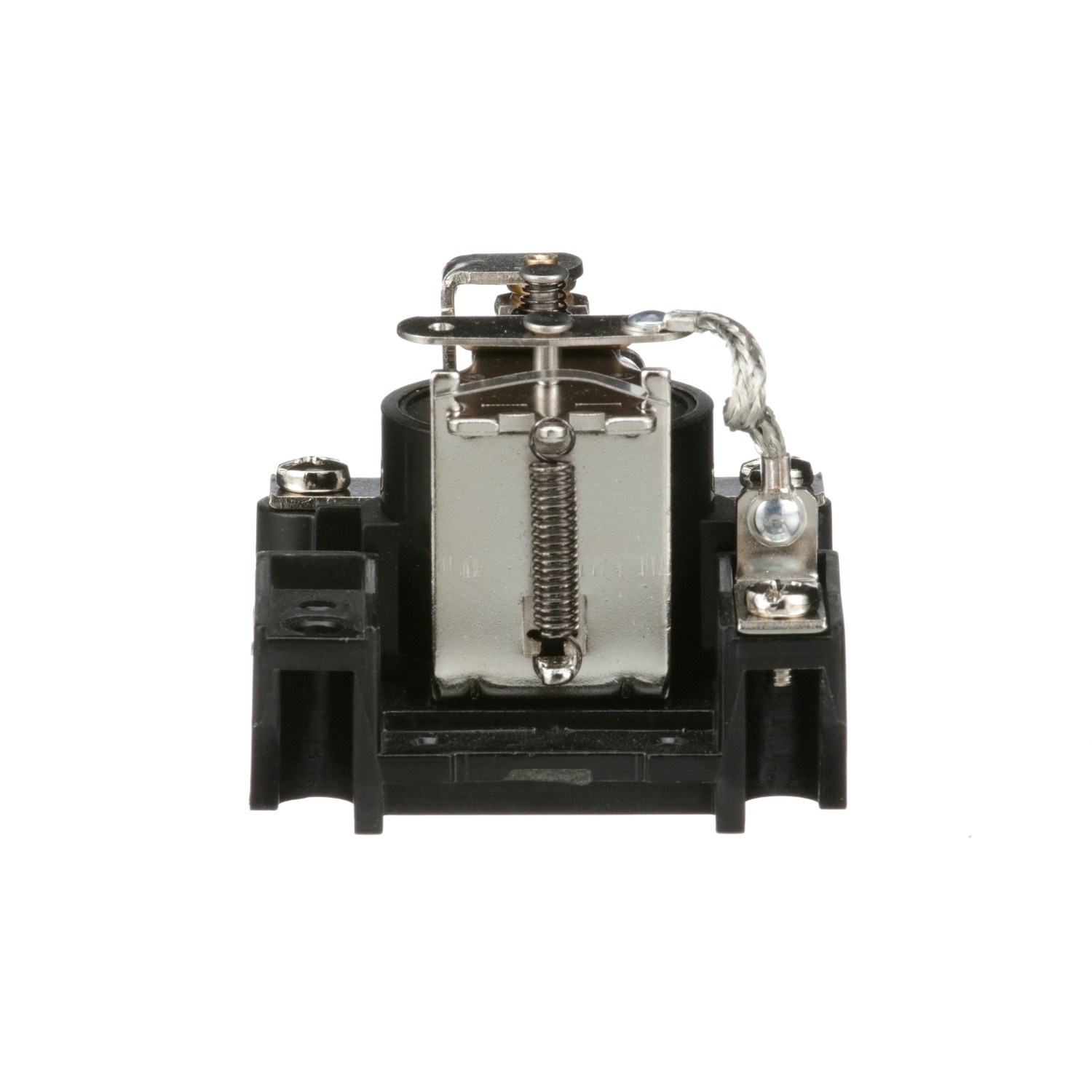

Square D 8501CO15V20 Power Relay
Part Number # 8501CO15V20
SKU # 2210914
$76.39 / Each
Square D 8501CO15V20 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8501CO15V20 |
| SKU #: | 2210914 |
| Amperage Rating: | 30, 30 A |
| Coil Voltage: | 120, 120 V AC, 120 VAC |
| Contact Form: | 1CO 1 Form C SPDT, 1NO-1NC SPDT |
| Contact Rating: | 30 A at 300 V AC, 5 A at 600 V AC, 30 A at 300 VAC, 5 A at 600 VAC, 30 A at 300 VAC/5 A at 600 VAC |
| Dimensions: | 2.43 in W x 2.5 in D x 2.18 in H |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 1 |
| Series: | 8501C |
| Temperature Rating (Degrees F): | -22 to 122, -22 to 122 deg F |
| Terminal Type: | Screw, Screw Clamp |
| Type: | 1-Phase General Purpose, General Purpose Type C |
| Country of origin: | CN |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122324 |
| UPC: | 00785901052104 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$76.39 / Each
Quantity:
- Square D Power Relay, General Purpose Type C, Series: 8501C, 30 A, 1.5 hp, 50/60 Hz, 120 V AC Coil, 1CO 1 Form C SPDT, 30 A at 300 VAC, 5 A at 600 VAC Contact, 1 Pole, Panel Mount, Screw Terminal, NEMA 1, -22 to 122 deg F, 2.43 in W x 2.5 in D x 2.18 in H
8501CO15V20 Application
Suited For Controlling Small Single Phase Motors and Other Light Loads Such As Electric Heaters, Pilot Lights Or Audible Signals Applications8501CO15V20 Item Features
- Visible contact
- Low cost
- Horsepower rated
- 8501 Type C open frame power relays
- 600 VAC voltage rating
8501CO15V20 Standards
CE Certified|CSA Certified (File 218139 Class 3211 04)|IEC 60947-4-1|NLDX7 Listed|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|RoHS Compliant|UL File No. E78351 CCN NLDXSKU #2210914Part Number #8501CO15V20UNSPSC39122324UPC00785901052104
