Part Number # 8501CO6V29
SKU # 2200270
Image Disclaimers Message
8501CO6V29

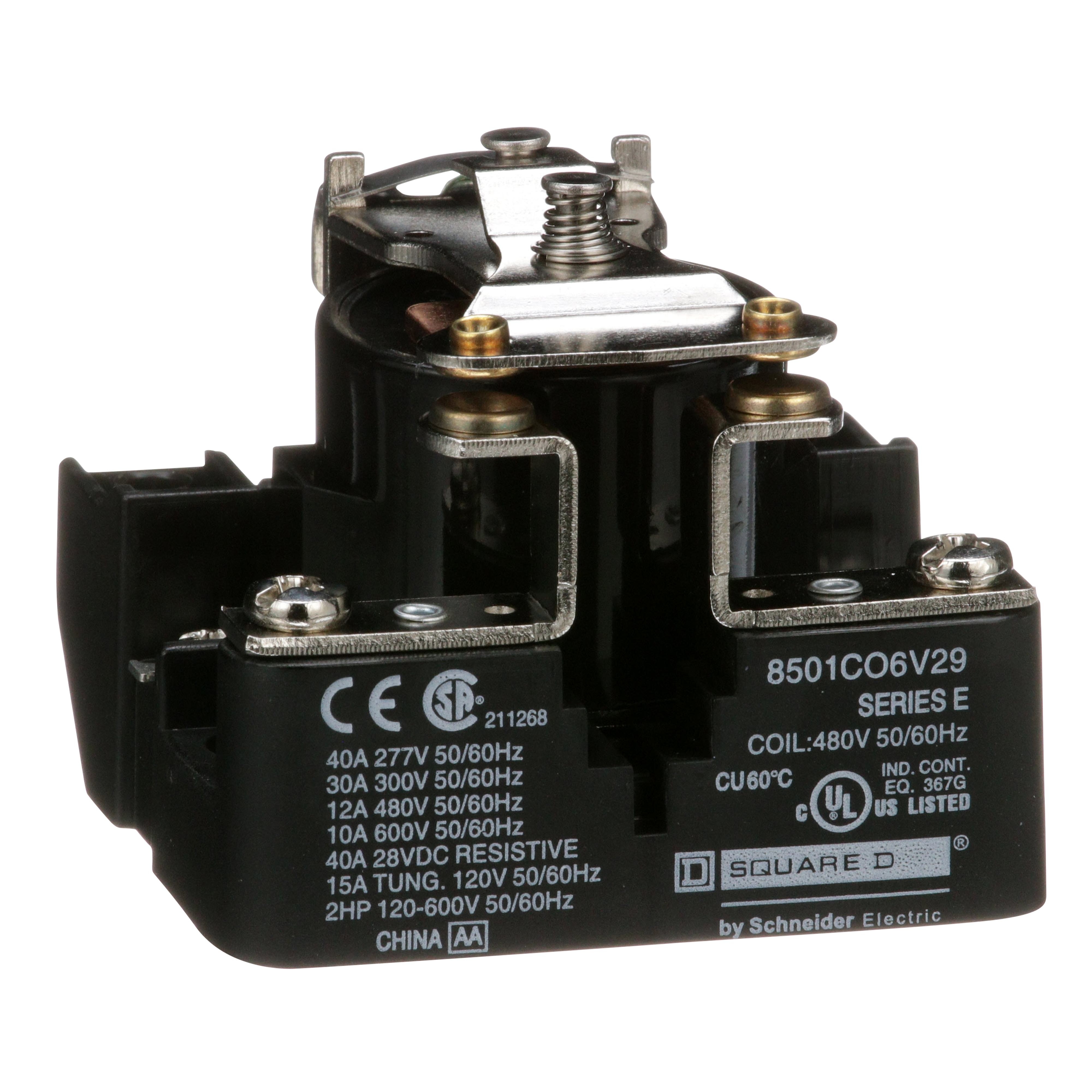

Square D 8501CO6V29 Power Relay
Part Number # 8501CO6V29
SKU # 2200270
$43.82 / Each
Square D 8501CO6V29 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8501CO6V29 |
| SKU #: | 2200270 |
| Amperage Rating: | 30, 30 A |
| Coil Voltage: | 480, 480 V AC, 480 VAC |
| Contact Form: | 1NO 1 Form A SPST, 1NO SPST, 1NO-SPST |
| Contact Rating: | 30 A at 300 V AC, 10 A at 600 V AC, 30 A at 300 VAC, 10 A at 600 VAC |
| Dimensions: | 2.25 in H x 2.43 in W x 2.5 in D, 2.43 in W x 2.25 in H x 2.5 in D |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 1 |
| Series: | 8501C |
| Temperature Rating (Degrees F): | -22 to 122, -22 to 122 deg F |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Type: | 1-Phase General Purpose, Type C 1-Phase General Purpose |
| Country of origin: | CN |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122324 |
| UPC: | 00785901059547 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$43.82 / Each
Quantity:
- Square D Power Relay, Type C 1-Phase General Purpose, Series: 8501C, 30 A, 2 hp Power, 50/60 Hz Frequency, 480 V AC Coil, 1NO 1 Form A SPST Contact Form, 30 A at 300 VAC, 10 A at 600 VAC Contact, 1 Pole, Panel Mounting, Screw Clamp Terminal, NEMA 1 Enclosure, -22 to 122 deg F, 2.43 in W x 2.25 in H x 2.5 in D Dimensions
8501CO6V29 Application
Controlling Small Single Phase Motors and Other Light Loads such as Electric Heaters, Pilot Lights or Audible Signals, Pumps, Conveyors and Material Handling Equipment Applications8501CO6V29 Item Features
- Visible contacts
- Low cost
- Horsepower rated
- 8501 type C open frame Power Relays
8501CO6V29 Standards
CCN NLDX|CE Marked|CSA Certified|CSA File No. 218139 Class 321104|IEC 60947-4-1|NLDX7 Listed|RoHS Compliant|UL File No. E78351|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2200270Part Number #8501CO6V29UNSPSC39122324UPC00785901059547
