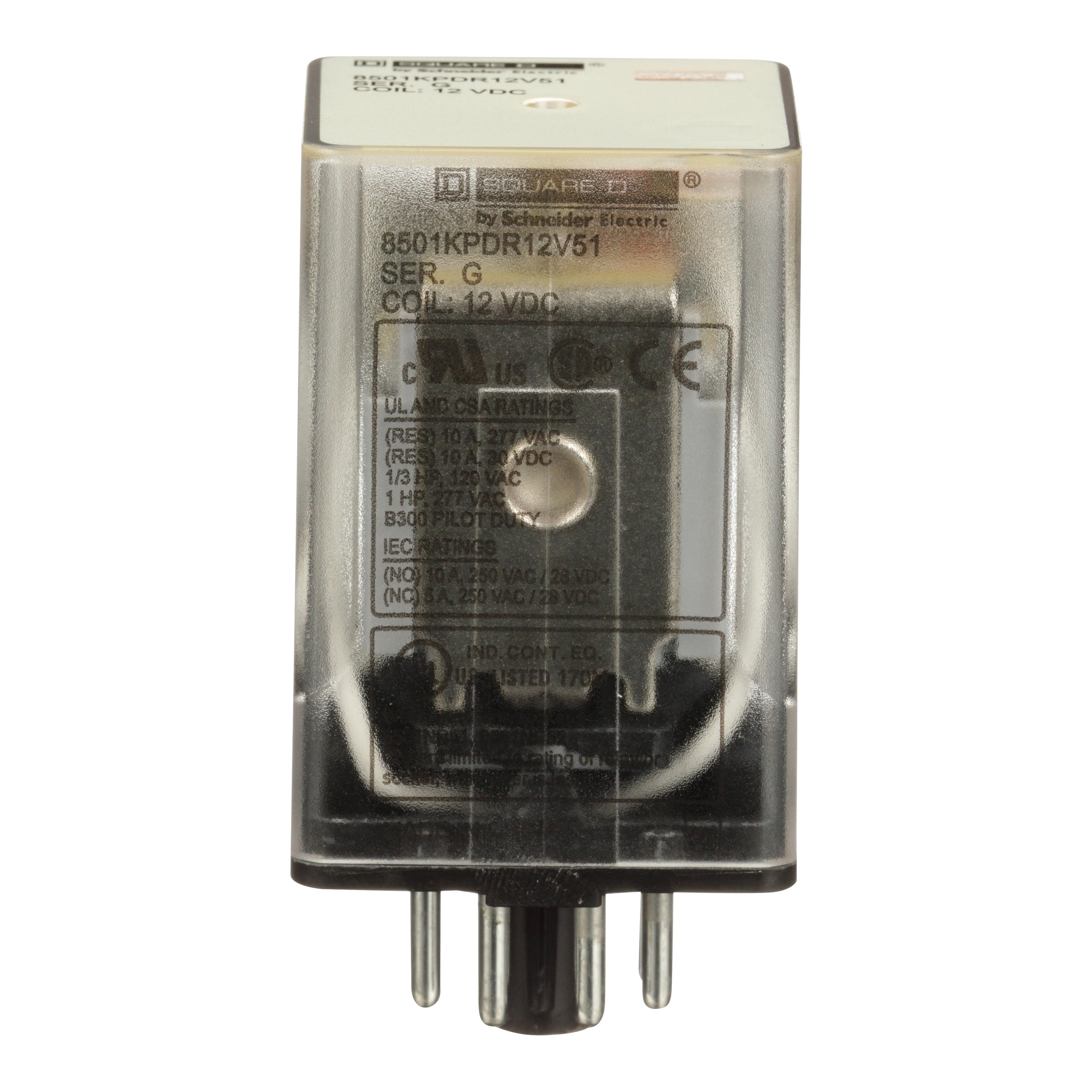

Square D 8501KPDR12V51 General Purpose Relay
Square D 8501KPDR12V51 General Purpose Relay
Part #:8501KPDR12V51
SKU #: 2406118
Key Features
Part #:8501KPDR12V51
SKU #: 2406118
Brand: Schneider Electric
Amperage Rating: 10 A
Coil Voltage: 12 VDC, 300 VAC/30 VDC
Contact Form: DPDT, DPDT/NO-NC (2 Form C)
Contact Rating: 10 A at 12 VDC, 3 A, 3:00 AM
Dimensions: 2.66 in H x 1.4 in W x 1.4 in D
- Silver alloy contacts material
- 300 VAC and 30 VDC maximum switching voltage
- Tubular shape of pin
- 20 ms pick-up and drop out operating time
- Octal pin
- 0.33 hp at 120 VAC/1 hp at 277 VAC power rating
- Without indicator and test button
- https://www.youtube.com/watch?v=zaDOKFz6F6U&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
Square D 8501KPDR12V51 General Purpose Relay
Square D 8501KPDR12V51, General Purpose Relay, 8501K Series, 10 A, 1 hp at 277 VAC,0.33 hp at 120 VAC Power, 12 VDC Coil, 2 Form C (DPDT-NO,NC) Contact Form, 3 A Contact, 8 Pins, Socket Mounting, Tubular Terminal, -40 to 55 deg F, 2.66 in H x 1.4 in W x 1.4 in D Dimensions
Additional Description: SQD -8501KPDR12V51 RELAY 2CO CYL PIN 10A@240V 12VDC COIL HP at 277 VAC, 10A resistive at 120 VAC, 8 pin, DPDT, 2 NO, 2 NC, 12 VDC coil
Catalog Description: Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, 8 pin, DPDT, 2 NO, 2 NC, 12 VDC coil
