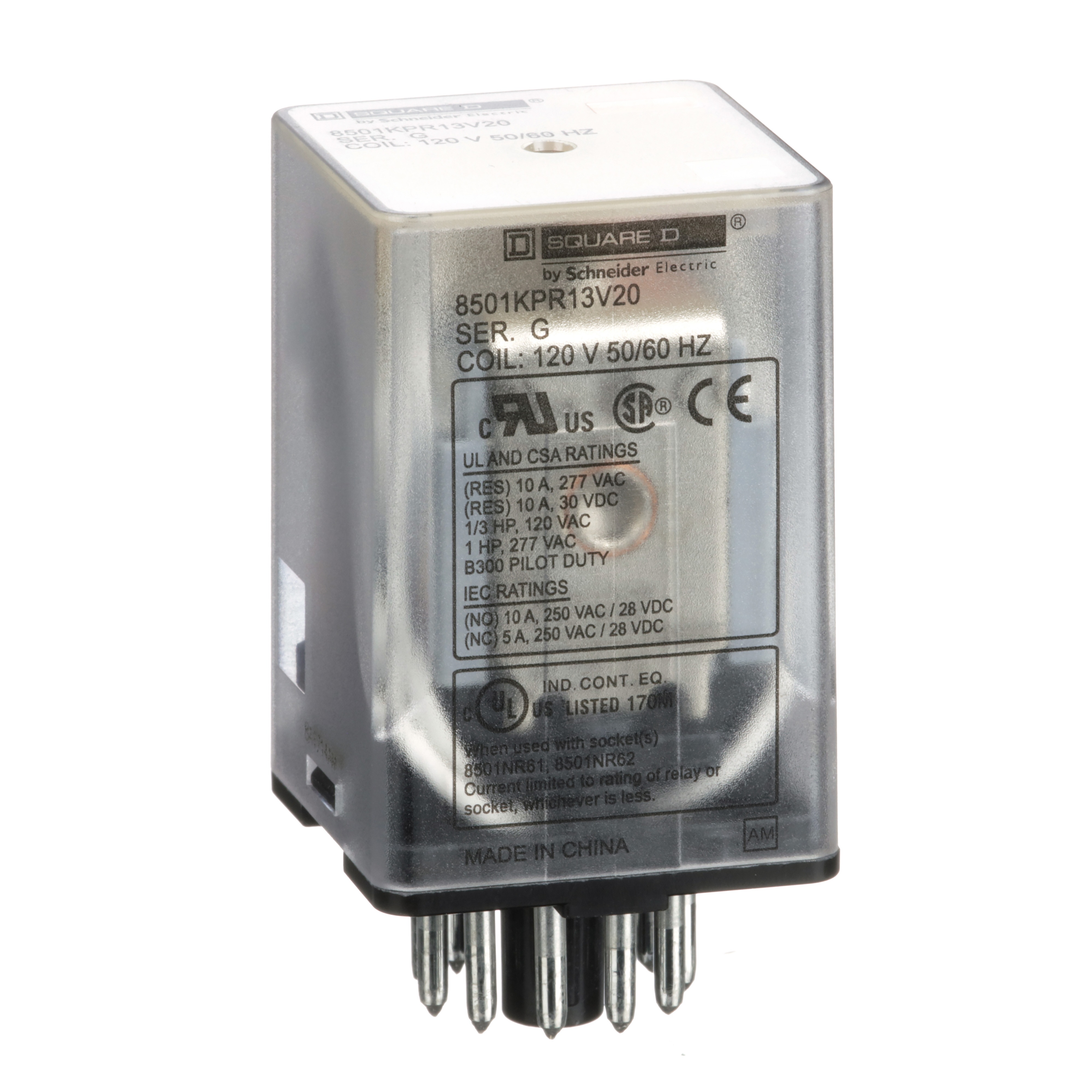

Square D 8501KPR13V20 8501K Series Relay, 10 A, 11 pin, 3PDT contact
Image Disclaimers Message
Square D 8501KPR13V20 8501K Series Relay, 10 A, 11 pin, 3PDT contact
Square D 8501KPR13V20 8501K Series Relay, 10 A, 11 pin, 3PDT contact
Part #:8501KPR13V20
SKU #: 2312593
Key Features
Part #:8501KPR13V20
SKU #: 2312593
Brand: Square D
Amperage Rating: 10, 10 A
Coil Voltage: 300 VAC, 30 VDC
Contact Form: 3CO/3PDT, 3PDT
Contact Rating: 3 A
Dimensions: 2.66 in H x 1.4 in W x 1.4 in D
- Without test button and LED
- 1 hp at 277 VAC, 0.33 hp at 120 VAC power rating
- Without test button and LED
- 1 hp at 277 VAC, 0.33 hp at 120 VAC power rating
- https://www.youtube.com/watch?v=zaDOKFz6F6U&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
Square D 8501KPR13V20 8501K Series Relay, 10 A, 11 pin, 3PDT contact
Schneider Electric Square D™ General Purpose Relay, Type K, Series: 8501K, 10 A, 0.33 hp, 1 hp Power, 300 VAC, 30 VDC Coil, 3CO/3PDT Contact Form, 11 Pins, 3 Pole, DIN Rail/Socket Mounting, Octal Pin/Plug-In/Screw Clamp Terminal, IP20/IP40 Enclosure, -40 to 131 deg F, 2.66 in H x 1.4 in W x 1.4 in D Dimensions
Additional Description: SQD -8501KPR13V20 RELAY 3CO CYL PIN 6.6A@240V 120VAC COIL
Catalog Description: Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, 11 pin, 3PDT, 3 NO, 3 NC, 120 VAC coil
