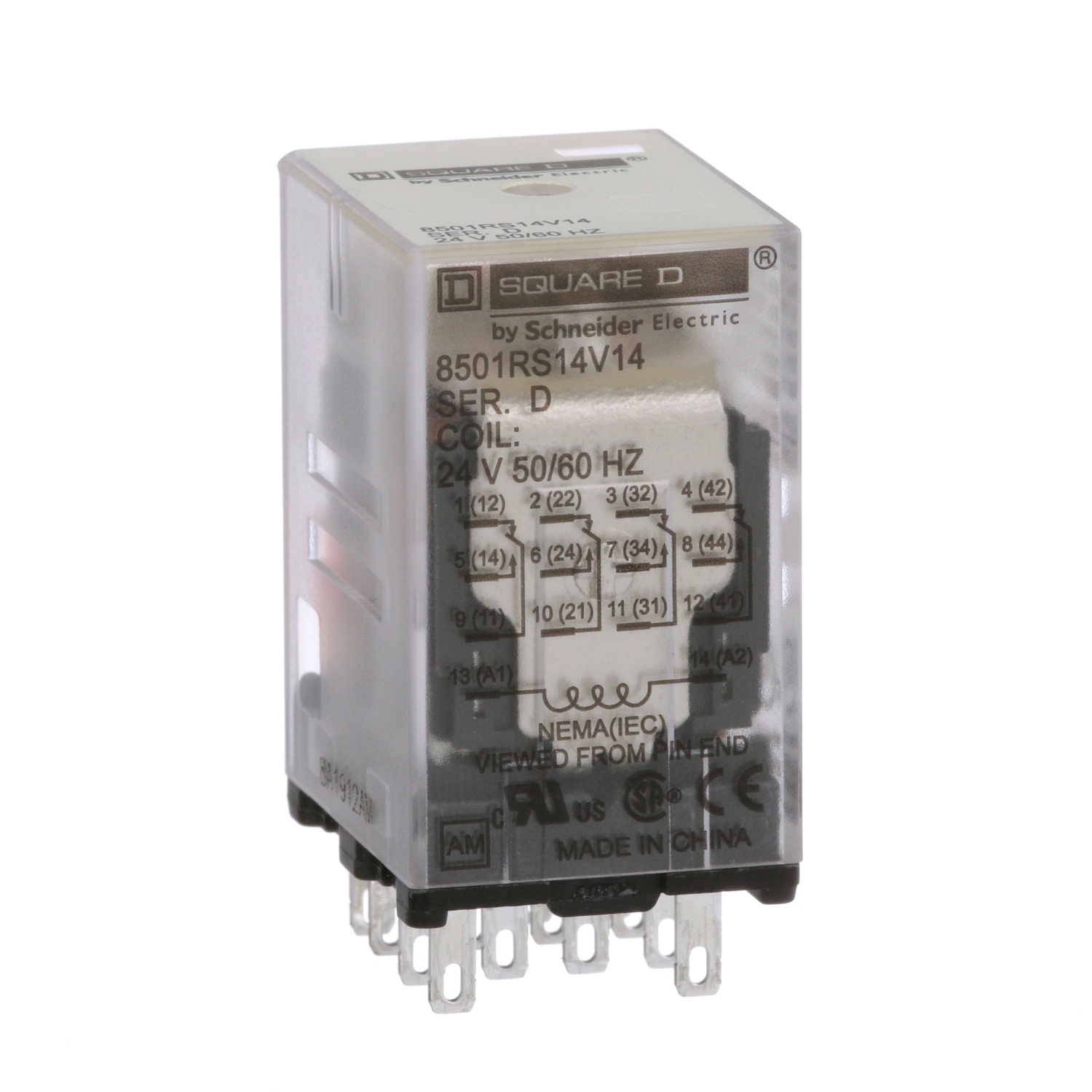

Square D 8501RS14V14 Miniature Relay
Square D 8501RS14V14 Miniature Relay
Part #:8501RS14V14
SKU #: 69885
Key Features
Part #:8501RS14V14
SKU #: 69885
Brand: Square D
Amperage Rating: 5, 5 A
Coil Voltage: 24, 24 VAC
Contact Form: 4PDT
Contact Rating: 6, 6 A, 6:00 AM
Dimensions: 21 mm W x 27.9 mm H x 41.5 mm D, 27.9 mm H x 21 mm W x 41.5 mm D
- Complete socket line
- Without test button and LED
- https://www.youtube.com/embed/Hq-lwURWDPs
Square D 8501RS14V14 Miniature Relay
Square D Miniature Relay, Type R Low Voltage, Series: 8501R, 5 A, 0.5 hp at 277 VAC Power, 50/60 Hz Frequency, 24 VAC Coil, 4PDT Contact Form, 6 A Contact, 4 Pole, Plug-In/Socket Mounting, Spade Terminal, -40 to 131 deg F, 21 mm W x 27.9 mm H x 41.5 mm D Dimensions
Additional Description: SQD -8501RS14V14 RELAY 240VAC 5AMP TYPE R +OPTIONS
Catalog Description: Plug in relay, Type R, miniature, 0.5 HP at 277 VAC, 8A resistive at 120 VAC, 14 blade, 4PDT, 4 NO, 4 NC, 24 VAC coil
