8501RS14V20

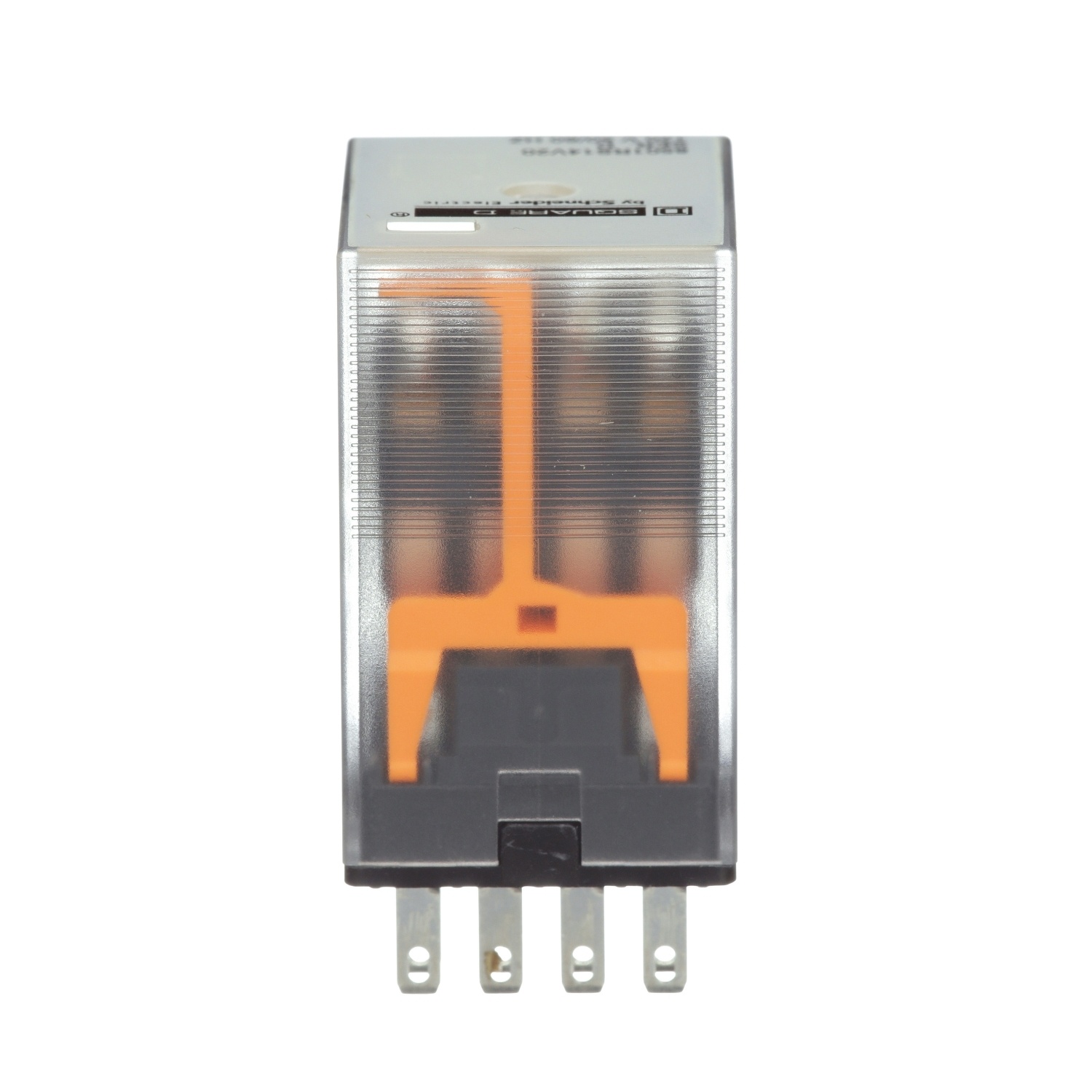

Square D 8501RS14V20 Plug-In Relay
Part Number # 8501RS14V20
SKU # 2222579
$41.94 / Each
Square D 8501RS14V20 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8501RS14V20 |
| SKU #: | 2222579 |
| Amperage Rating: | 5, 5 A |
| Coil Voltage: | 120, 300 V AC, 30 V DC, 300 VAC, 30 VDC |
| Contact Form: | 4 Form C 4PDT, 4PDT |
| Contact Rating: | 5 A at 30/240 V AC, 5 A at 30/240 VAC |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Pins: | 14 |
| Number of Poles: | 4 |
| Series: | 8501R |
| Temperature Rating (Degrees F): | -40 to 131 deg F, -40 to 158 |
| Terminal Type: | Spade |
| Type: | Low Voltage, Type R Low Voltage Miniature |
| Country of origin: | CN, US |
| Mounting type: | Socket |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122325 |
| UPC: | 00785901559290 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$41.94 / Each
Quantity:
- Square D Plug-In Relay, Type R Low Voltage Miniature, Series: 8501R, 5 A, 1/2 hp Power, 50/60 Hz Frequency, 300 V AC, 30 V DC Coil, 4 Form C 4PDT Contact Form, 5 A at 30/240 VAC Contact, 14 Pins, 4 Pole, Socket Mounting, Spade Terminal, -40 to 131 deg F
8501RS14V20 Application
For General Purpose and logic elements, power switching output devices applications8501RS14V20 Item Features
- Different contact compositions allow these relays to be used in a variety of application
- Fine silver (gold flashed) and bifurcated crossbar (gold overlay silver) are suitable for high contact reliability and low level switching requirements
- Silver cadmium oxide is best suited for inductive load
- 20 ms pickup and 20 ms drop-out operating time
- Spade pins
- 1/6 hp at 120/240 VAC
- No indicator, without test button
- https://www.youtube.com/embed/Hq-lwURWDPs
8501RS14V20 Standards
CE Certified|CSA File No. 211268/Class 321107|cULus File No. E197072 CCN NRNT8|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL File No. E78351 CCN NLDX File No. E197072 CCN NRNT2|UL Listed|UL RecognizedSKU #2222579Part Number #8501RS14V20UNSPSC39122325UPC00785901559290
