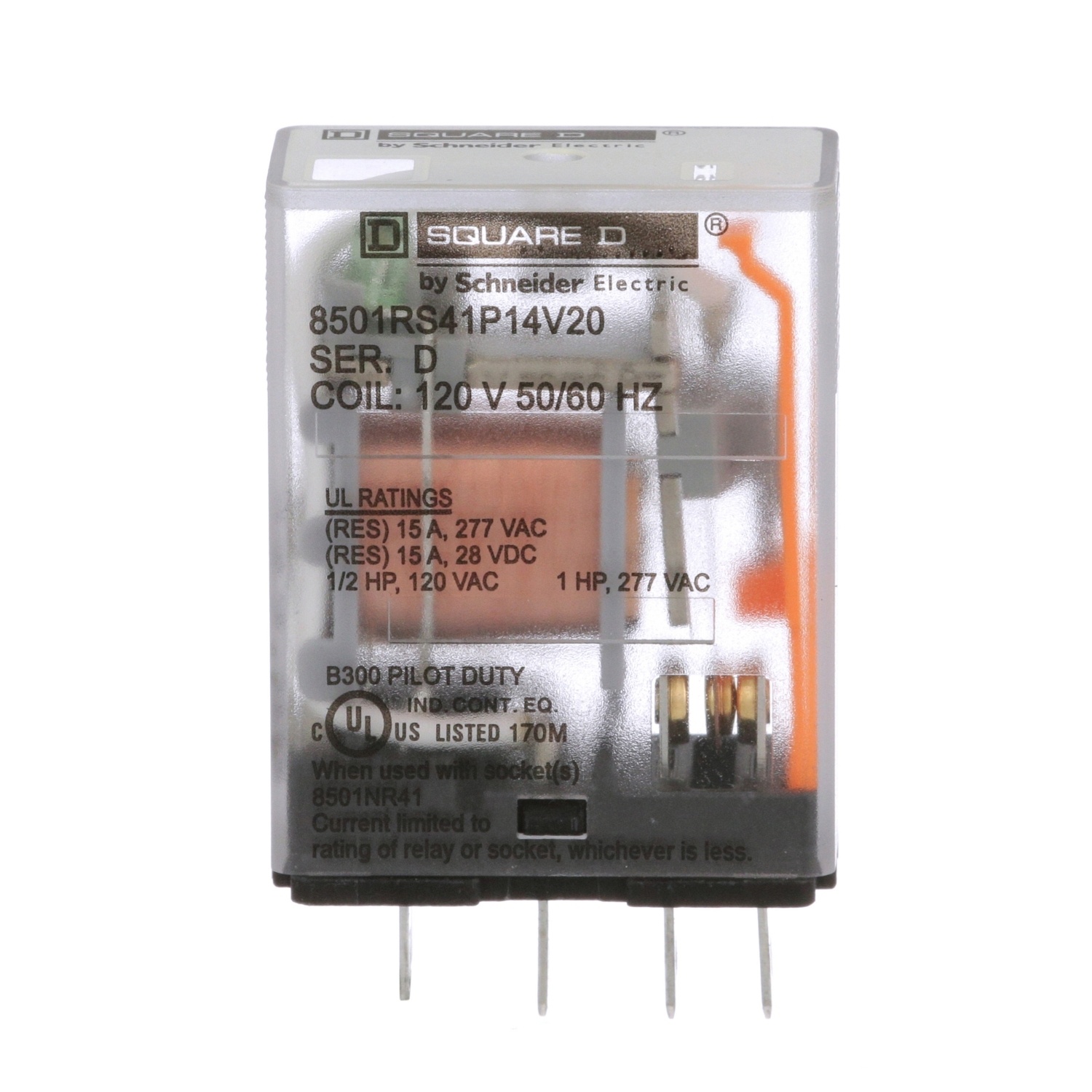

Square D 8501RS41P14V20 Miniature Plug-In Relay
Square D 8501RS41P14V20 Miniature Plug-In Relay
Part #:8501RS41P14V20
SKU #: 2345970
Key Features
Part #:8501RS41P14V20
SKU #: 2345970
Brand: Square D
Amperage Rating: 10, 10 A
Coil Voltage: 300 VAC/30 VDC
Contact Form: SPDT (1C/O)
Contact Rating: 15, 15 A
Dimensions: 27.3 mm H x 14 mm W x 41.8 mm D
- Complete socket line
- 1/2 hp at 120 VAC power
- Green indicator relay energized on LED
- Without test button
- https://www.youtube.com/embed/Hq-lwURWDPs
Square D 8501RS41P14V20 Miniature Plug-In Relay
Square D Miniature Plug-In Relay, Type R Standard, Series: 8501, 10 A, 1 hp at 277 VAC Power, 50/60 Hz Frequency, 300 VAC/30 VDC Coil, SPDT (1C/O) Contact Form, 15 A Contact, 1 Pole, Socket Mounting, Spade Terminal, LED Display, -40 to 131 deg F, 27.3 mm H x 14 mm W x 41.8 mm D Dimensions
Additional Description: SQD -8501RS41P14V20 RELAY240VAC15AMPTYPER+OPTIONS
Catalog Description: Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 5 blade, SPDT, 1 NO, 1 NC, 120 VAC coil
