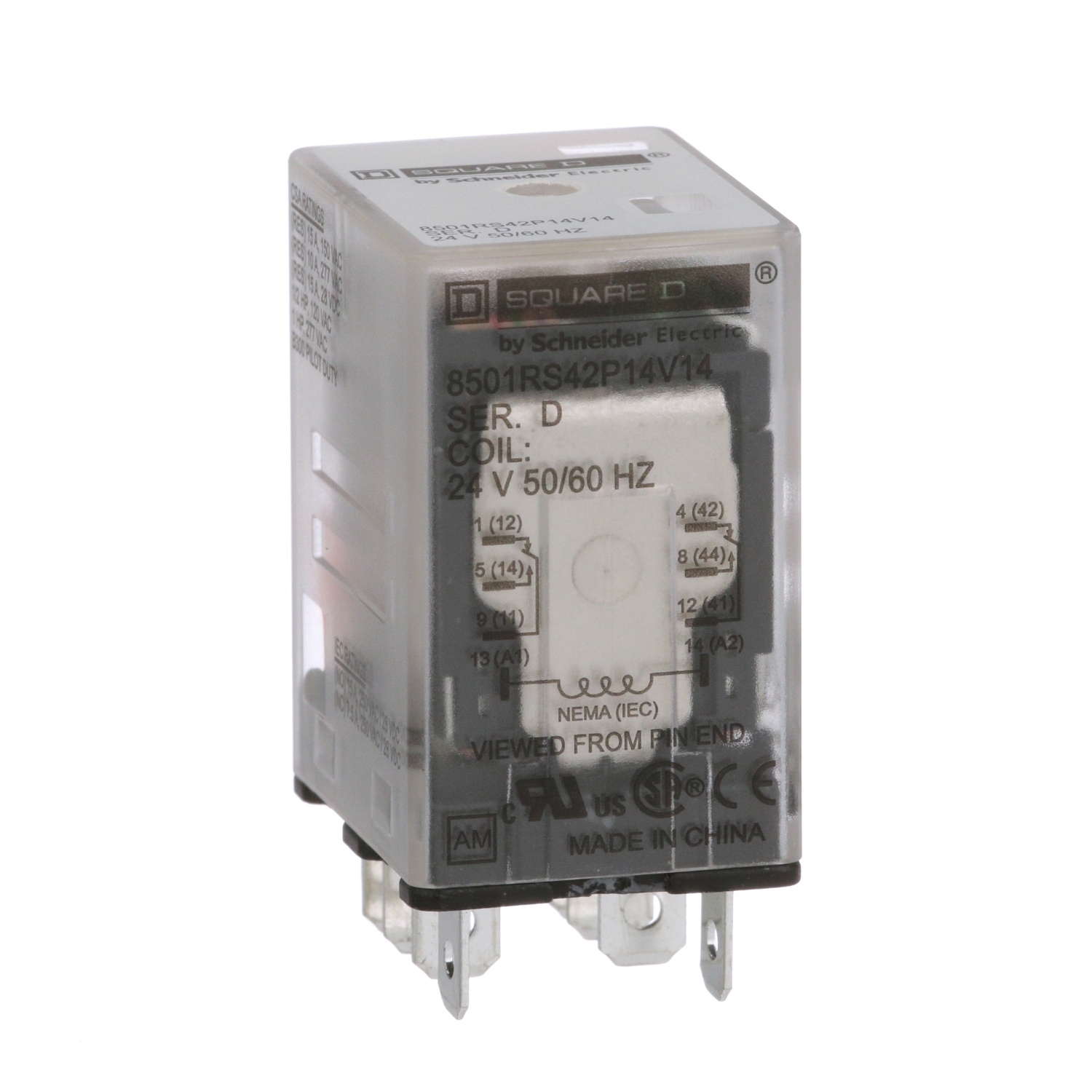

Square D 8501RS42P14V14 Plug-In Relay
Square D 8501RS42P14V14 Plug-In Relay
Part #:8501RS42P14V14
SKU #: 2211262
Key Features
Part #:8501RS42P14V14
SKU #: 2211262
Brand: Square D
Amperage Rating: 10, 10 A
Coil Voltage: 300 VAC, 30 VDC, 300 VAC/30 VDC
Contact Form: 2CO-DPDT, DPDT (2C/O)
Contact Rating: 15, 15 A
Dimensions: 21 mm W x 41.8 mm D x 27.3 mm H, 27.3 mm H x 21 mm W x 41.8 mm D
- Complete socket line
- 1/2 hp at 120 VAC power
- Green indicator relay energized on LED
- Without test button
- https://www.youtube.com/embed/Hq-lwURWDPs
Square D 8501RS42P14V14 Plug-In Relay
Square D Plug-In Relay, Type R Standard Miniature, Series: 8501, 10 A, 1 hp at 277 VAC Power, 50/60 Hz Frequency, 300 VAC, 30 VDC Coil, 2CO-DPDT Contact Form, 15 A Contact, 2 Pole, Socket Mounting, Spade Terminal, LED Display, -40 to 131 deg F, 21 mm W x 41.8 mm D x 27.3 mm H Dimensions
Additional Description: SQD -8501RS42P14V14 RELAY240VAC15AMPTYPER+OPTIONS
Catalog Description: Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 24 VAC coil
