8501RS42V14

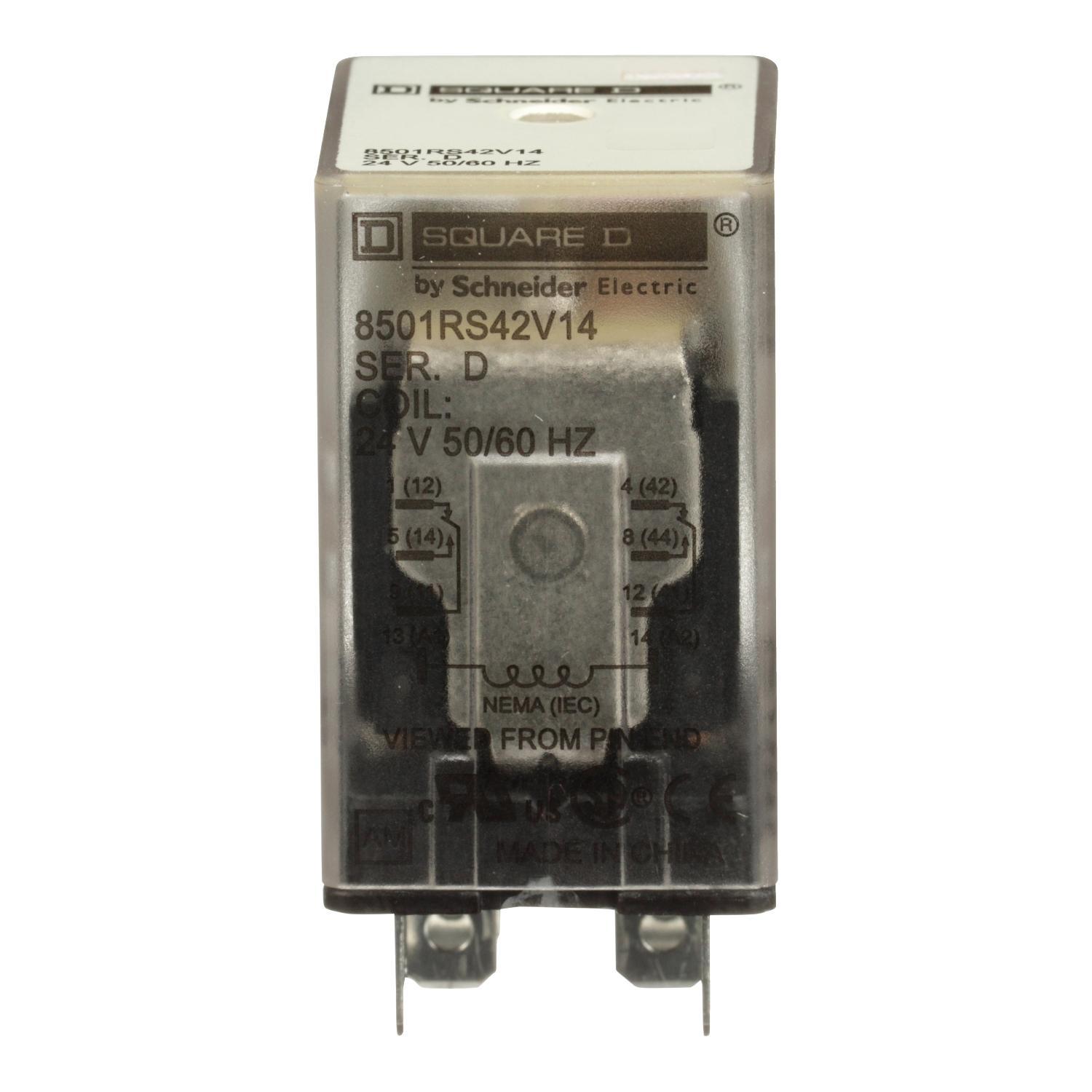

Square D 8501RS42V14 Plug-In Relay
Part Number # 8501RS42V14
SKU # 2298205
$44.90 / Each
Square D 8501RS42V14 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8501RS42V14 |
| SKU #: | 2298205 |
| Amperage Rating: | 10, 10 A |
| Coil Voltage: | 24, 300 VAC, 30 VDC |
| Contact Form: | 2 Form C DPDT, DPDT |
| Contact Rating: | 10 A, 30/240 VAC |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Pins: | 8 |
| Number of Poles: | 2 |
| Series: | 8501R |
| Temperature Rating (Degrees F): | -40 to 131 deg F, -40 to 158 |
| Terminal Type: | Spade |
| Type: | Miniature Standard, Type R Standard Miniature |
| Country of origin: | CN |
| Mounting type: | Socket |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122325 |
| UPC: | 00785901131304 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$44.90 / Each
Quantity:
- Square D Plug-In Relay, Type R Standard Miniature, Series: 8501R, 10 A, 1/3 hp, 1/2 hp, 1 hp Power, 50/60 Hz Frequency, 300 VAC, 30 VDC Coil, 2 Form C DPDT Contact Form, 10 A, 30/240 VAC Contact, 8 Pins, 2 Pole, Socket Mounting, Spade Terminal, -40 to 131 deg F
8501RS42V14 Application
For Logic elements and power switching output devices applications8501RS42V14 Item Features
- Short stroke motion of the armature
- Provides long mechanical life for high speed operation
- Suitable for high contact reliability, low level switching
- Can be used in adverse environments
- Wide range of operating temperature from -40 deg C to 55 deg C
- https://www.youtube.com/embed/Hq-lwURWDPs
8501RS42V14 Standards
CE Certified|CSA File No. 211268/Class 321107|cULus File No. E197072 CCN NRNT8|PPROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|RoHS Compliant|UL File No. E78351 CCN NLDX File No. E197072 CCN NRNT2|UL Listed|UL RecognizedSKU #2298205Part Number #8501RS42V14UNSPSC39122325UPC00785901131304
