Part Number # 8501RSD44V53
SKU # 2193372
Image provided may only be a representation of
final product and may include optional equipment
8501RSD44V53

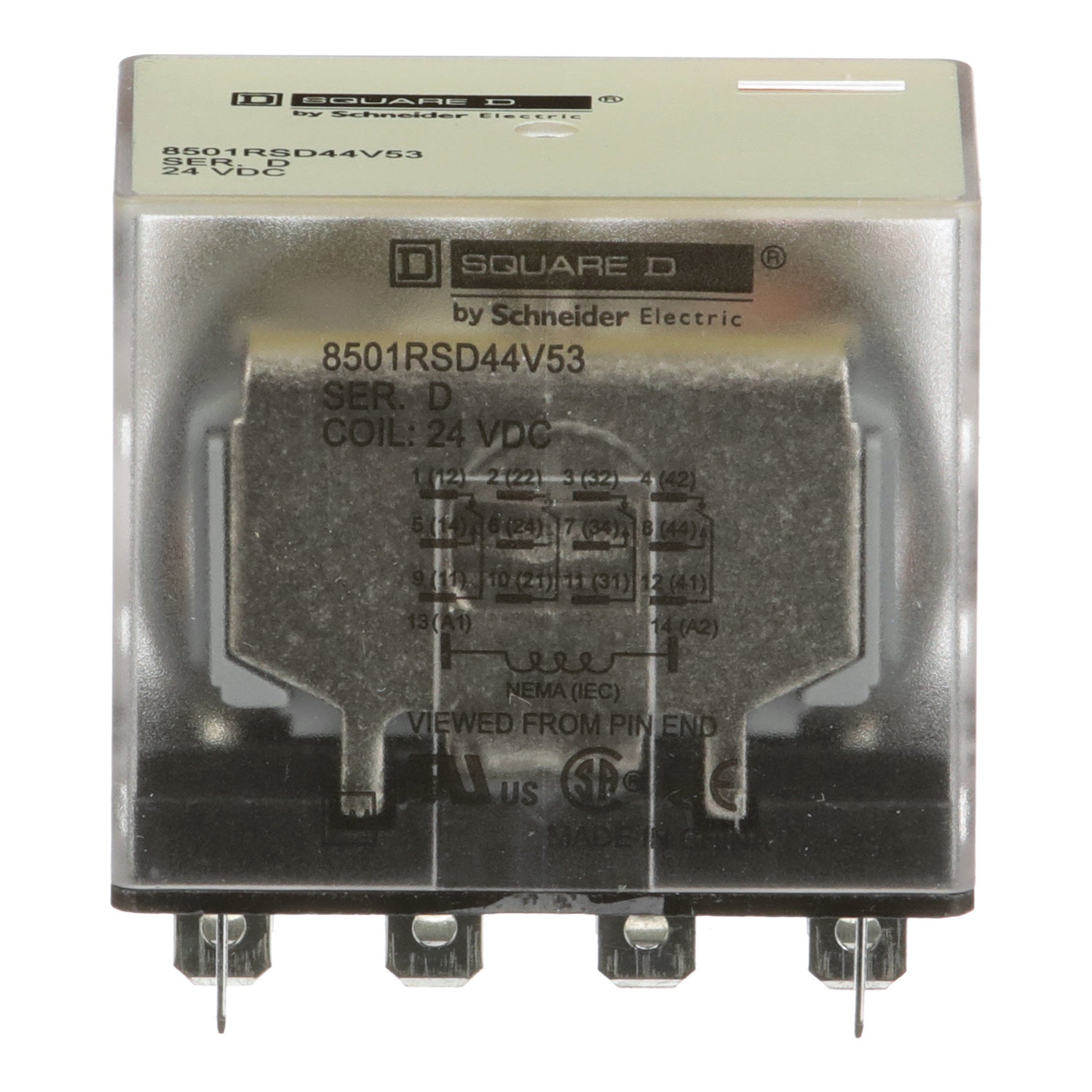

Square D 8501RSD44V53 Plug-In Relay
Part Number # 8501RSD44V53
SKU # 2193372
Square D 8501RSD44V53 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8501RSD44V53 |
| SKU #: | 2193372 |
| Amperage Rating: | 12, 12 A |
| Coil Voltage: | 300 V AC, 30 V DC, 300 VAC, 30 VDC, 300 VAC/30 VDC |
| Contact Form: | 4 Form C 4PDT, 4PDT |
| Contact Rating: | 10 A at 28/240 V AC, 10 A at 28/240 VAC |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Pins: | 14 |
| Number of Poles: | 4 |
| Series: | 8501R |
| Temperature Rating (Degrees F): | -40 to 131, -40 to 131 deg F |
| Terminal Type: | Spade |
| Type: | Miniature Standard, Type R Standard Miniature |
| Country of origin: | CN, US |
| Mounting type: | Socket |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122325 |
| UPC: | 00785901137238 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D 8501RSD44V53 Plug-In Relay
Brand: Square D
Part Number: 8501RSD44V53
Square D Plug-In Relay, Type R Standard Miniature, Series: 8501R, 12 A, 1 hp Power, 50/60 Hz Frequency, 300 VAC, 30 VDC Coil, 4PDT Contact Form, 10 A at 28/240 VAC Contact, 14 Pins, 4 Pole, Socket Mounting, Spade Terminal, -40 to 131 deg F
Additional Description: SQD -8501RSD44V53 RELAY250VAC15AMPTYPER+OPTIONS
Catalog Description: Relay, Type R, plug in, miniature, 1HP at 277VAC, 15A resistive at 120VAC, 14 blade, 4PDT, 4NO, 4NC, 24VDC coil
8501RSD44V53 Application
For logic elements and power switching output device applications8501RSD44V53 Item Features
- Different contact compositions allow these relays to be used in a variety of application
- Fine silver (gold flashed) and bifurcated crossbar (gold overlay silver) are suitable for high contact reliability and low level switching requirements
- Silver cadmium oxide is best suited for inductive load
- 20 ms pickup and 20 ms drop-out operating time
- Spade shape pin
- No indicator, without test button
- https://www.youtube.com/embed/Hq-lwURWDPs
8501RSD44V53 Standards
CE Certified|CSA File No. 211268 Class 3211 07|cULus File No. E197072 CCN NRNT8|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov|RoHS Compliant|UL File No. E78351 CCN NLDX File No. E197072 CCN NRNT2|UL Listed|UL RecognizedSKU #2193372Part Number #8501RSD44V53UNSPSC39122325UPC00785901137238
