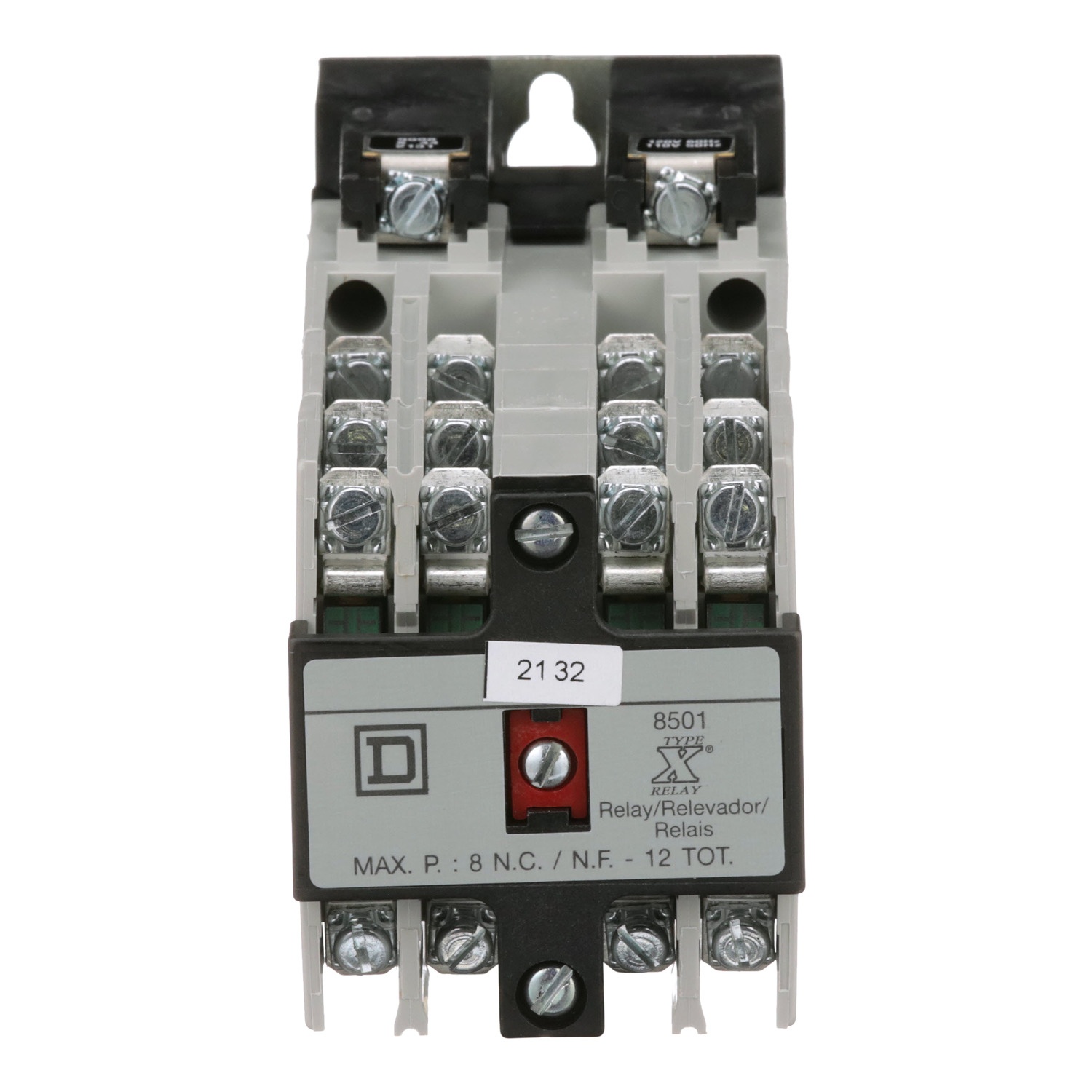

Square D 8501XO1200V02 Nema Control Relay
Square D 8501XO1200V02 Nema Control Relay
Part #:8501XO1200V02
SKU #: 968910
Key Features
Part #:8501XO1200V02
SKU #: 968910
Brand: Square D
Amperage Rating: 10 A AC/5 A DC
Coil Voltage: 110 VAC at 50 Hz to 120 VAC at 60 Hz, 110 to 120 VAC
Contact Form: 12NO
Contact Rating: 10 A at 600 VAC, 5/10 A at 600 VAC
Dimensions: 2.23 in W x 3.5 in H x 6.36 in D, 3.5 in H x 2.23 in W x 6.36 in D
- Specified in major automotive plants
- Modular design provides greater versatility
- Replaceable, convertible contacts
- Extremely reliable contacts
- Plug-in color coded contact cartridges
- Mechanical tie between contact cartridges
- https://www.youtube.com/embed/C4x62XLnW3g
Square D 8501XO1200V02 Nema Control Relay
Square D NEMA Control Relay, Type X, Series: 8501X, 10 A AC/5 A DC, 50/60 Hz Frequency, 110 to 120 VAC Coil, 12NO Contact Form, 5/10 A at 600 VAC Contact, 12 Pole, Panel Mounting, Screw Clamp Terminal, -40 to 160 deg F, 2.23 in W x 3.5 in H x 6.36 in D Dimensions
Additional Description: SQD -8501XO1200V02 RELAY 600VAC 10AMP NEMA +OPTIONS
Catalog Description: Relay, Harmony 8501X, machine tool, coil, screw clamp terminals, 10A resistive at 600V AC, 110/120V AC 50/60Hz, 12NO
