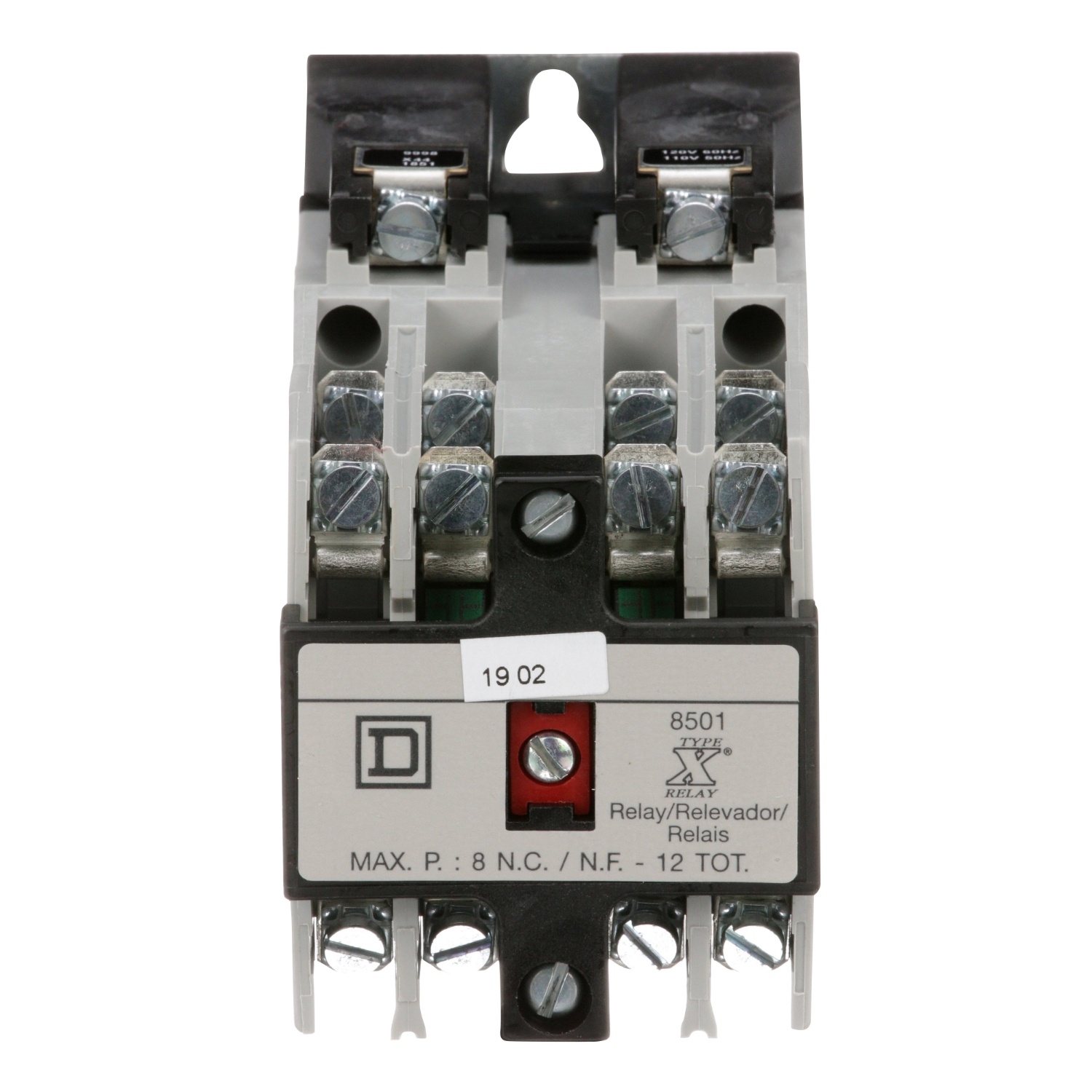

Square D 8501XO60V02 Nema Control Relay
Square D 8501XO60V02 Nema Control Relay
Part #:8501XO60V02
SKU #: 968137
Key Features
Part #:8501XO60V02
SKU #: 968137
Brand: Square D
Amperage Rating: 10 A AC/5 A DC
Coil Voltage: 110 to 120 VAC, 110/120
Contact Form: 6NO
Contact Rating: 10 A 600 VAC, 5/10 A at 600 VAC
Dimensions: 2.23 in W x 3.5 in H x 5.16 in D, 3.5 in H x 2.23 in W x 5.16 in D
- Specified in major automotive plants
- Modular design provides greater versatility
- Replaceable, convertible contacts
- Extremely reliable contacts
- Plug-in color coded contact cartridges
- Mechanical tie between contact cartridges
- https://www.youtube.com/embed/C4x62XLnW3g
Square D 8501XO60V02 Nema Control Relay
Square D NEMA Control Relay, Type X, Series: 8501X, 10 A AC/5 A DC, 50/60 Hz Frequency, 110 to 120 VAC Coil, 6NO Contact Form, 5/10 A at 600 VAC Contact, 6 Pole, Panel Mounting, Screw Clamp Terminal, -40 to 160 deg F, 2.23 in W x 3.5 in H x 5.16 in D Dimensions
Additional Description: SQD -8501XO60V02 RELAY 600VAC 10AMP NEMA +OPTIONS
Catalog Description: NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 6 normally open contacts, 110/120 VAC 50/60 Hz coil
