Part Number # 8502SBO2V01S
SKU # 2292622
Image Disclaimers Message
Brand: Square D
8502SBO2V01S

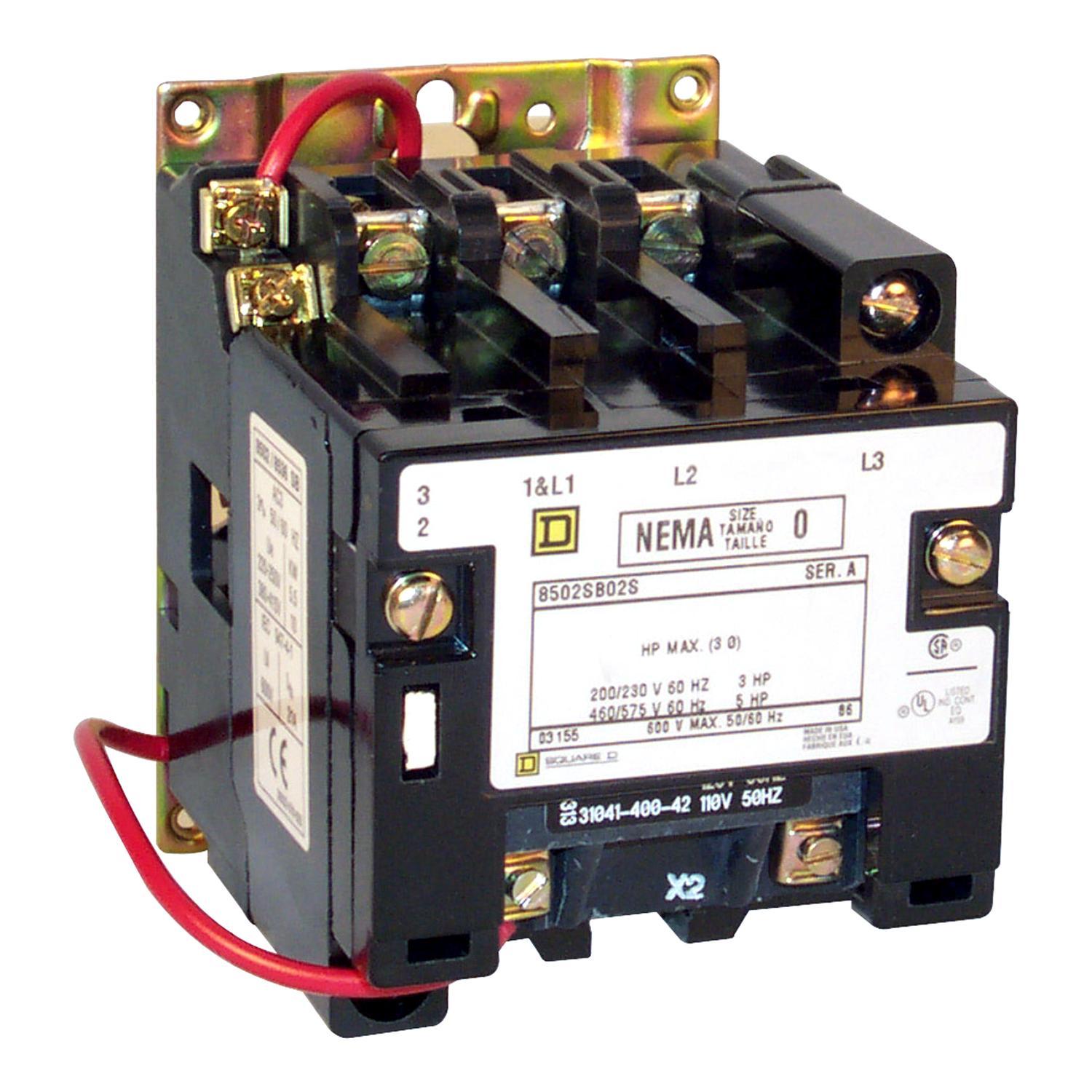

Square D 8502SBO2V01S Contactor
Part Number # 8502SBO2V01S
SKU # 2292622
$502.93 / Each
Square D 8502SBO2V01S Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8502SBO2V01S |
| SKU #: | 2292622 |
| Coil Power Rating: | 3 hp at 200/230 VAC/5 hp at 460/575 VAC |
| Coil Voltage: | 24 VAC at 60 Hz |
| Contact Rating: | 18, 18 A |
| Dimensions: | 3.23 in W x 4.21 in D x 4.33 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 10, 10 cpm |
| Operating Temperature: | 0 to 40, 0 to 40 deg C |
| Series: | 8502 |
| Size: | 0 |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Type: | Non-Reversing Type S |
| Wattage: | 2.2 kW at 200/230 V/3.7 kW at 460/575 V |
| Connection type: | Screw Clamp |
| Country of origin: | US |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901724148 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$502.93 / Each
Quantity:
- Square D Contactor, Non-Reversing Type S, Series: 8502, 24 VAC at 60 Hz Coil, 3 hp at 200/230 VAC/5 hp at 460/575 VAC Coil, 3 Pole, 50/60 Hz Frequency, 2.2 kW at 200/230 V/3.7 kW at 460/575 V Wattage, 18 A Contact, Screw Clamp Connection, 0 Size, Screw Clamp Terminal, Open Enclosure, 10 cpm Operating Cycles, 0 to 40 deg C Operating, 3.23 in W x 4.21 in D x 4.33 in H Dimensions
8502SBO2V01S Application
Construction, Infrastructure, Industrial Markets, Commercial Office Buildings and Building Automation8502SBO2V01S Item Features
- A normally open holding circuit contact for three wire control is provided as standard
- For flexibility field-installable or factory modified accessories include auxiliary contacts, power poles and cover mounted control stations
- Bell crank design promotes superior electrical and mechanical life
- Serviceable by replacing contacts and coils rather than replacing the entire product
8502SBO2V01S Standards
CSA File LR60905/60905 Class 3211-04|ECCN EAR99|UL E78351 CCN NLDX|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.govSKU #2292622Part Number #8502SBO2V01SUNSPSC39121529UPC00785901724148
