Part Number # 8502SBO2V02S
SKU # 46661
8502SBO2V02S

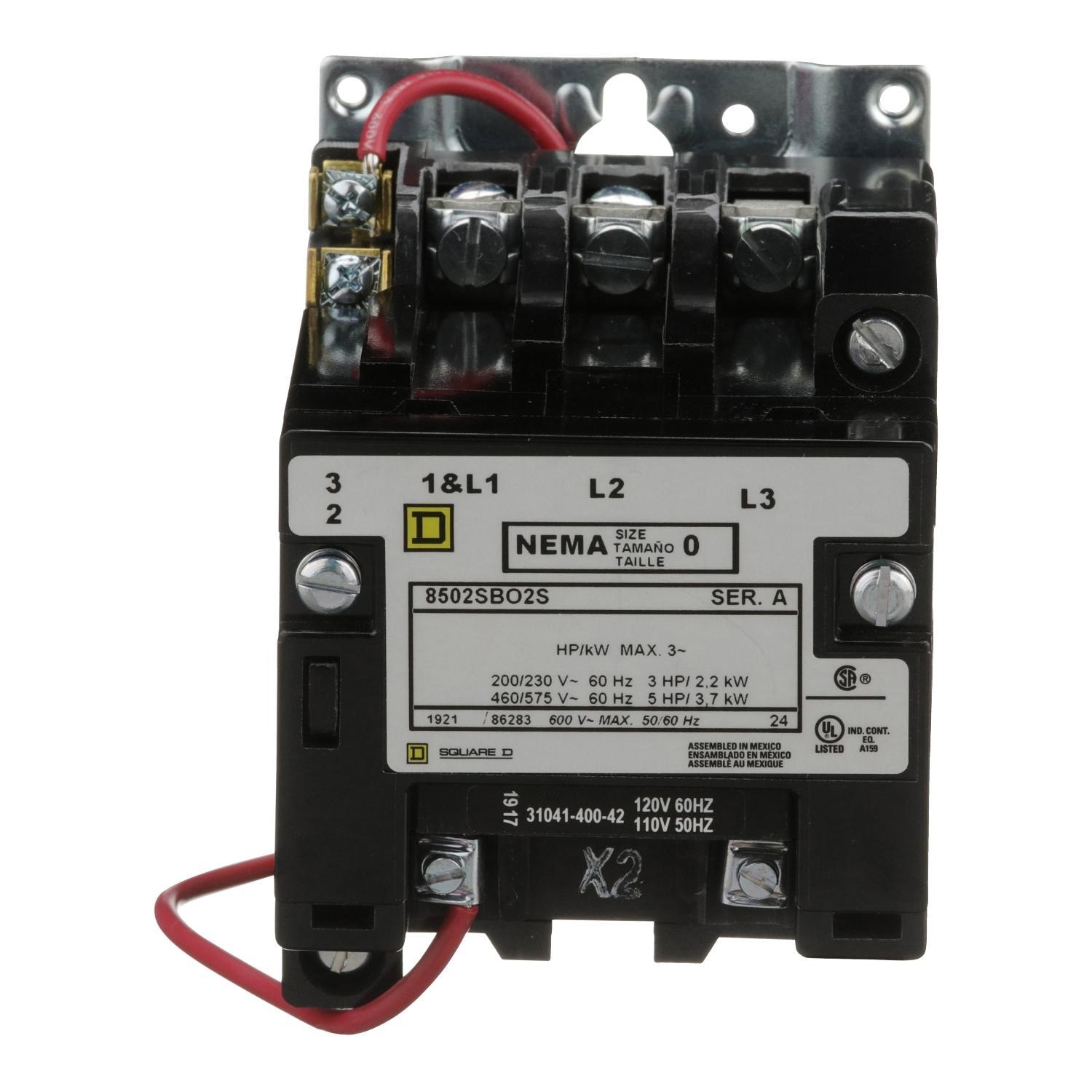

Square D 8502SBO2V02S Nema Contactor
Part Number # 8502SBO2V02S
SKU # 46661
Square D 8502SBO2V02S Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8502SBO2V02S |
| SKU #: | 46661 |
| Coil Voltage: | 110 to 120, 110/120 V AC, 110/120 VAC |
| Contact Rating: | 18 A at 600 V AC, 18 A at 600 VAC |
| Dimensions: | 1107 mm W x 110 mm D x 82 mm H |
| Enclosure Type: | NEMA 0/Open, Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Series: | 8502S |
| Size: | SZ 0 |
| Terminal Type: | Screw, Screw Clamp |
| Type: | 3-Phase, 3-Phase Type S |
| Connection type: | Screw Clamp |
| Country of origin: | US |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901862833 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D 8502SBO2V02S Nema Contactor
Brand: Square D
Part Number: 8502SBO2V02S
Square D NEMA Contactor, 3-Phase Type S, Series: 8502S, 110/120 VAC Coil, 18 A Maximum Load Current, 3 Pole, 50/60 Hz, Non-Reversing Contact, 18 A at 600 VAC Contact, Screw Clamp, SZ 0, Screw Terminal, Open, Surface Mount, 1107 mm W x 110 mm D x 82 mm H
Additional Description: SQD -8502SBO2V02S CONTACTOR 600VAC 18AMP NEMA +OPTIONS
Catalog Description: NEMA Contactor, Type S, nonreversing, Size 0, 18A, 5HP at 575VAC, 3 phase, up to 100kA, 3 pole, 120VAC coil, open [TAA]
8502SBO2V02S Application
For used to switch heating loads, capacitors, transformer and electric motors where overload protection is provided separately applications8502SBO2V02S Item Features
- Robust design and reliable build for long mechanical life and electrical endurance
- Serviceable by replacing contacts and coils
8502SBO2V02S Standards
UL File No. E78351 CCN NLDX|IEC 60905|CSA File No. LR12751 Class 3211 04|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.govSKU #46661Part Number #8502SBO2V02SUNSPSC39121529UPC00785901862833
Image provided may only be a representation of final product and may include optional equipment
