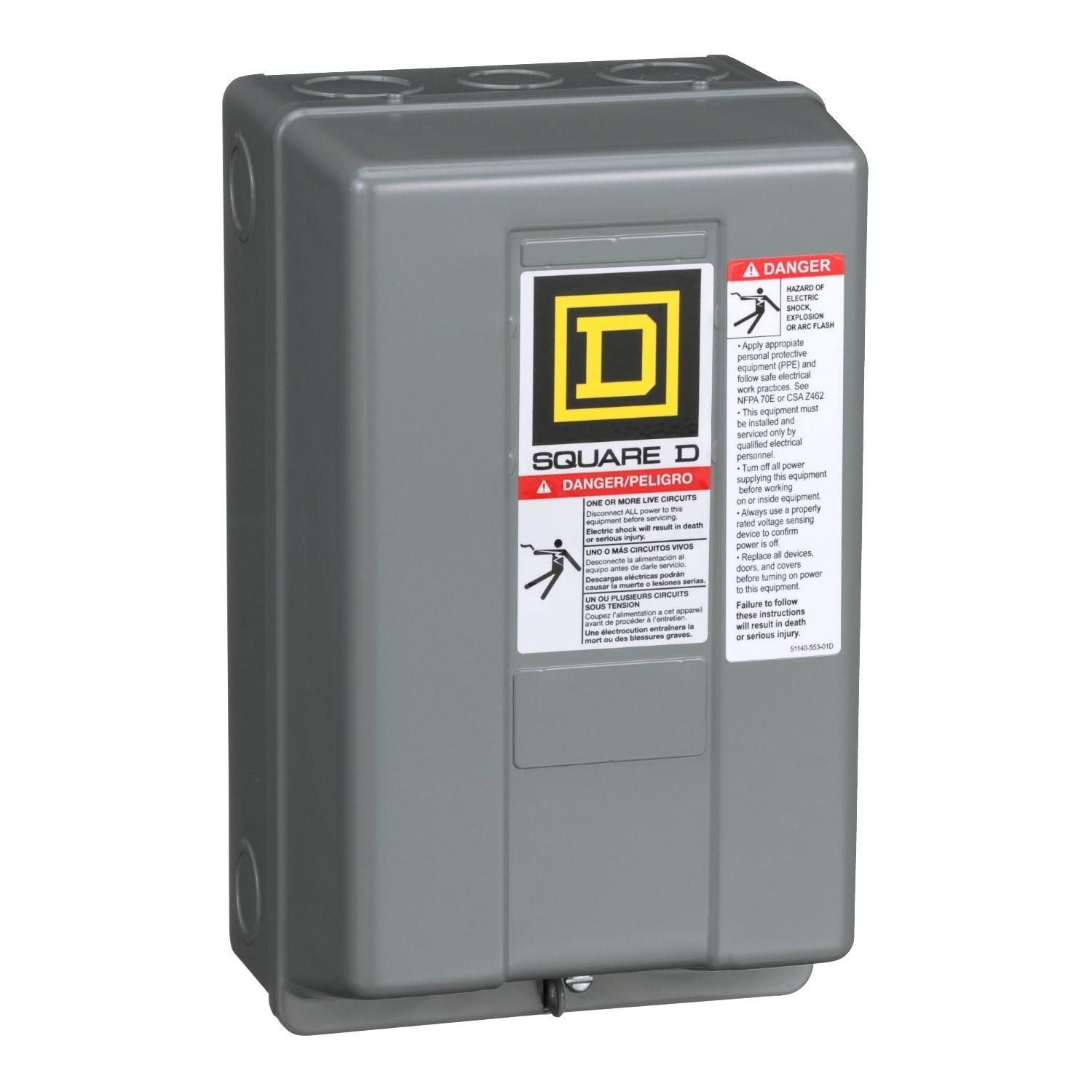

Square D 8502SCG2V02S Contactor
Part Number # 8502SCG2V02S
SKU # 2148967
$641.15 / Each
Square D 8502SCG2V02S Key Features
Brand: Square D
Part Number # 8502SCG2V02S
SKU #2148967
Coil Power Rating: 7-1/2 hp at 200/230 VAC, 10 hp at 460/575 VAC
Coil Voltage: 110/120, 110/120 VAC
Contact Rating: 27, 27 A
Dimensions: 152 mm W x 134 mm D x 254 mm H, 254 mm H x 152 mm W x 134 mm D
Enclosure Type: NEMA 1
Finish: Painted
Frequency Rating: 50/60, 50/60 Hz
Number of Poles: 3
Operating Cycles: 10, 10 cpm
Operating Temperature: 0 to 40, 0 to 40 deg C
Series: 8502
Size: SZ 1
Terminal Type: Screw, Screw Clamp
Type: 3-Phase Type S, 3-Phase Type S Non-Reversing
Wattage: 5.5 kW at 200/230 V/7.5 kW at 460/575 V
Connection type: Screw Clamp
Contact type: Non-Reversing
Country of origin: MX
Material: Sheet Steel
Manufacturer Name: Schneider Electric
UNSPSC: 39121529
UPC: 00785901866329
$641.15 / Each
Square D 8502SCG2V02S Contactor
Brand: Square D
Part Number: 8502SCG2V02S
Square D Contactor, 3-Phase Type S, Series: 8502, 110/120 VAC Coil, Coil Power Rating: 7-1/2 hp at 200/230 VAC, 10 hp at 460/575 VAC, 3 Pole, 50/60 Hz, 5.5 kW at 200/230 V/7.5 kW at 460/575 V, Non-Reversing Contact, 27 A Contact, Screw Clamp, SZ 1, Screw Terminal, NEMA 1, 10 cpm Operating Cycles, 0 to 40 deg C Operating, Sheet Steel, Painted, 152 mm W x 134 mm D x 254 mm H
Additional Description: SQD -8502SCG2V02S CONTACTOR 600VAC 27AMP NEMA +OPTIONS
Catalog Description: NEMA Contactor, Type S, nonreversing, Size 1, 27A, 10HP at 575VAC, 3 phase, up to 100kA, 3 pole, 120VAC coil, NEMA 1 [TAA]
8502SCG2V02S Application
For construction, infrastructure, industrial markets, commercial office buildings and building automation, switch heating loads, capacitors, transformer and electric motors where overload protection is provided separately applications8502SCG2V02S Item Features
- A normally open holding circuit contact for 3-wire control is provided as standard
- For flexibility field installable or factory modified accessories include auxiliary contacts, power poles and cover mounted control stations
- Bell crank design promotes superior electrical and mechanical life
- Nema sizes 00 to 5 are supplied with coils that are designed to operate satisfactorily on line voltages of 85% to 110% of rated voltage
- Nema sizes 5, 6 and 7 contactors are supplied with a DC coil operated by a solid state rectifier circuit that is powered by an AC source
- Sizes 00 to 2 contactors use a class 9999 SX11 auxiliary contact as the holding circuit contact
- Sizes 3 to 7 contactors use a class 9999 SX6 auxiliary contact as the holding circuit contact
- NEMA type 1 general purpose enclosure
- Used to switch heating loads capacitors, transformers and electric motors where overload protections is provided separately
- 600 vac system voltage
- Without indicator
- 7-1/2 hp at 200/230 VAC, 10 hp at 460/575 VAC, separate control circuit
8502SCG2V02S Standards
CE Certified|CSA File No. LR60905/60905 Class 3211-04|ECCN: EAR99|IEC 947-4-1|UL File No. E78351|CCN Guide No. NLDX|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.govSKU #2148967Part Number #8502SCG2V02SUNSPSC39121529UPC00785901866329
