Part Number # 8536SAO12V01S
SKU # 2257274
8536SAO12V01S
Square D 8536SAO12V01S Magnetic Starter
Part Number # 8536SAO12V01S
SKU # 2257274
Square D 8536SAO12V01S Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8536SAO12V01S |
| SKU #: | 2257274 |
| Action: | Non-Reversing |
| Amperage Rating: | 9, 9 A |
| Coil Voltage: | 24 V AC at 60 Hz, 24 VAC at 60 Hz |
| Dimensions: | 3.5 in W x 4.21 in D x 6.77 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Motor Power: | 1.5 hp at 200/230 VAC/2 hp at 460/575 VAC |
| Number of Poles: | 3 |
| Operating Temperature: | 0 to 40, 0 to 40 deg C |
| Overload Relay: | Thermal Melting Alloy |
| Phase: | 3, 3 ph |
| Reset Type: | (3) Thermal Melting Alloy |
| Series: | 8536 |
| Type: | Type S |
| Wattage: | 1.1 kW at 200/230 V AC/1.5 kW at 460/575 V AC, 1.1 kW at 200/230 VAC/1.5 kW at 460/575 VAC |
| Connection type: | Screw Clamp |
| Country of origin: | US |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121521 |
| UPC: | 00785901743477 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D 8536SAO12V01S Magnetic Starter
Brand: Square D
Part Number: 8536SAO12V01S
Square D Magnetic Starter, Type S, Series: 8536, 600 VAC, 9 A, 50/60 Hz, 1.1 kW at 200/230 VAC/1.5 kW at 460/575 VAC, 1.5 hp at 200/230 VAC/2 hp at 460/575 VAC Motor, 24 VAC at 60 Hz Coil, 3 Pole, (3) Thermal Melting Alloy Reset, 3 ph, Screw Clamp, Non-Reversing, Thermal Melting Alloy Overload Relay, Open, 0 to 40 deg C Operating, 3.5 in W x 4.21 in D x 6.77 in H
Additional Description: SQD -8536SAO12V01S STARTER 600VAC 9AMP NEMA +OPTIONS
Catalog Description: NEMA motor starter, Type S, nonreversing, Size 00, 9A, 2HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 24VAC coil, open [TAA]
8536SAO12V01S Application
Construction, Infrastructure, Industrial Markets, Commercial Office Buildings And Building Automation, Used For Starting and Stopping Of AC Squirrel Cage Motors8536SAO12V01S Includes
Separate Control Circuit8536SAO12V01S Item Features
- Flexible with four overload relays types
- Customizable with hundreds of combinations
- Streamline installation, wiring, maintenance and field modifications
- Reliable build for long mechanical life and electrical endurance
- https://www.youtube.com/embed/HH4qt8sWnGI
8536SAO12V01S Standards
CE Certified|IEC 947-4-1|CSA 60905 Class 3211-04|ECCN EAR99|UL File E78351 NLDX|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov8536SAO12V01S Warranty
18 MonthsSKU #2257274Part Number #8536SAO12V01SUNSPSC39121521UPC00785901743477

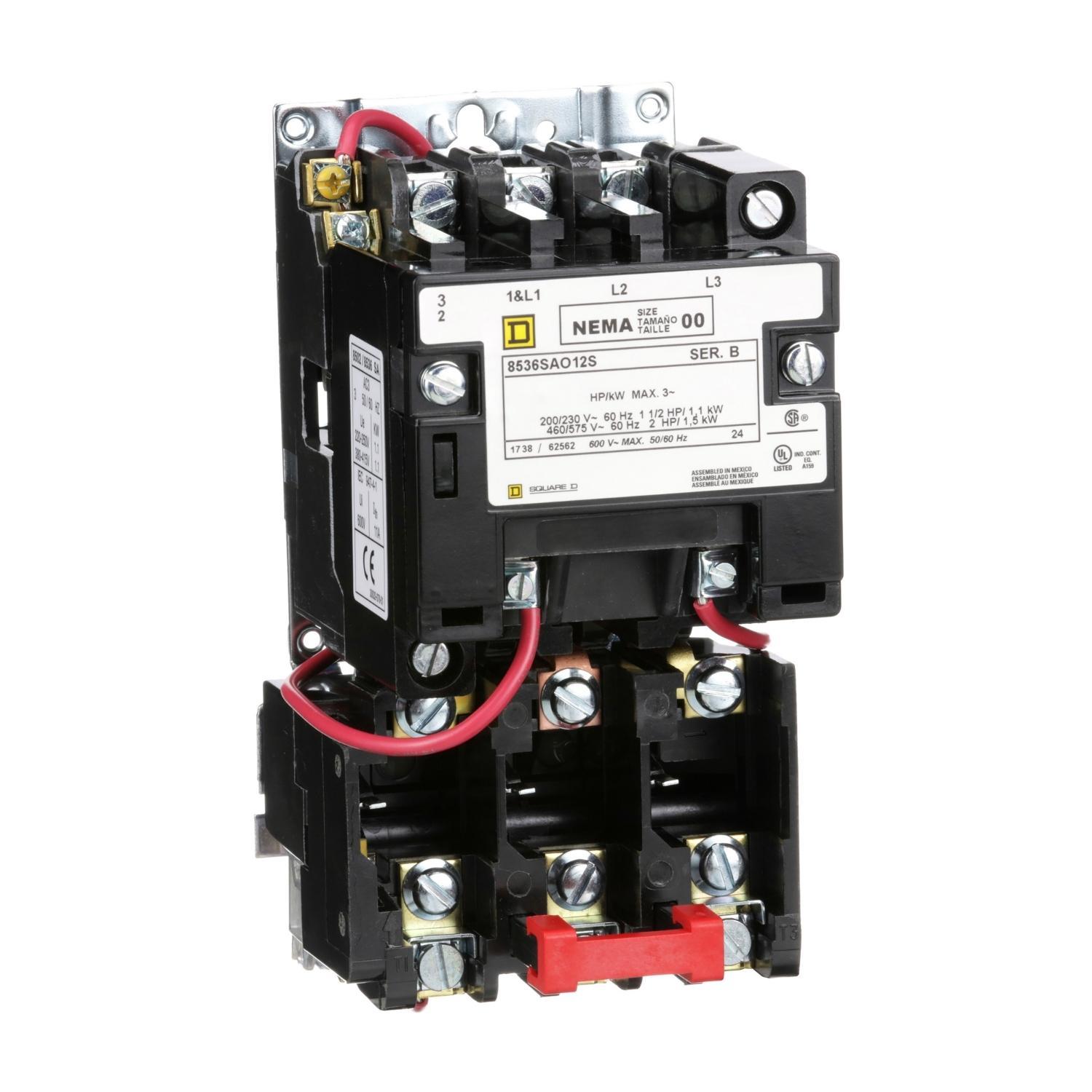

Image provided may only be a representation of final product and may include optional equipment
